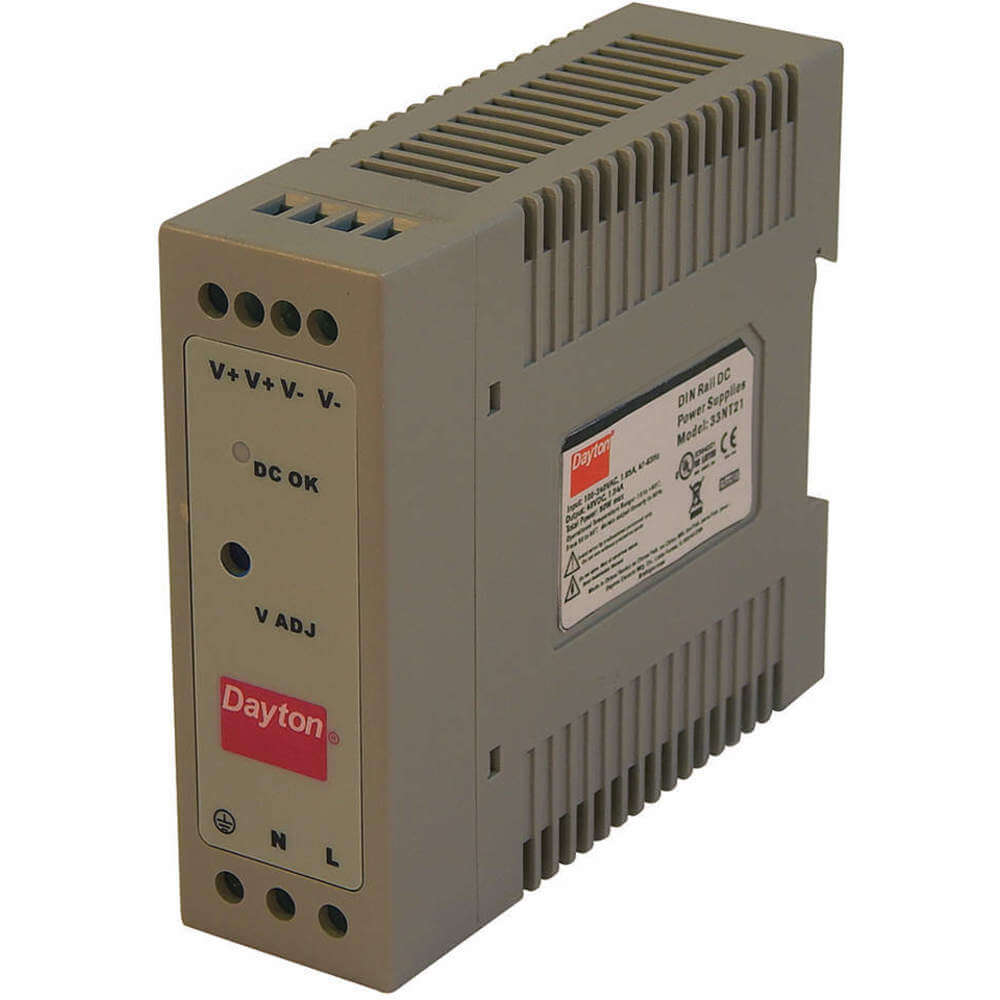

DAYTON 33NT21 Power Supply DIN Rail 50W 48VDC Plastic
Item: AH3WZQModel: 33NT21
7 In Stock
Ships within 2 days via
10.00% off
€86.58 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | DC Power Supply |
| Case Material | Plastic Case |
| Current - Peak | 1A |
| Depth | 4.02" |
| Frequency | 47-63 Hz |
| Height | 3.54" |
| Hold Up Time | Greater Than 16 ms |
| Hold Up Time | Greater Than 16 msec |
| Hold Up Time - Minimum | 16 ms |
| Housing Material | Plastic |
| Input Frequency - Maximuim | 63 Hz |
| Input Frequency - Minimum | 47 Hz |
| Input Frequency - Nominal | 50/60 Hz |
| Input Voltage | 90-264V AC |
| Ip Rating | IP20 |
| Manufacturer Warranty | 1 yr. |
| Mounting | Din Rail |
| Nema Enclosure Rating | 1 |
| Operating Temperature - Maximum | 140°F |
| Operating Temperature - Minimum | 14°F |
| Output Amps | 1A |
| Output Amps | 1 |
| Output Noise | Less Than Or Equal To 1% |
| Output Power - Rated | 50 W |
| Output Voltage - Nominal | 48V DC |
| Overall Depth | 4.02" |
| Overall Height | 3.54" |
| Overall Width | 1.26" |
| Peak Amps | 1 |
| Peak Amps | 1A |
| Phase | Single |
| Power Rating | 50 W |
| Power Supply Style | Switching |
| Special Features | Adjustable Output Voltage, Finger Safe, Parallel Capability |
| Status Indicator | Green DC Ok Signal |
| Style | Switching |
| Width | 1.26" |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 4.57 |
| Ship length (cm) | 12.19 |
| Ship width (cm) | 9.91 |
| Country of Origin | CN |
Product Variants
| Product | Model | Case Material | Hold Up Time | Peak Amps | Status Indicator | Mounting | Phase | Input Voltage | Ip Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
33NT10 | Metal | Greater Than 20 ms | 3A | Green DC Ok Signal | Din Rail | Single | 90-264V AC | IP20 | €266.42 | |
 |
33NT11 | Metal Case | Greater Than 20 ms | 4.95A | Green DC Ok Signal | Din Rail | Single | 90-264V AC | IP20 | €138.97 | |
 |
33NT12 | Metal Case | Greater Than 20 ms | 7.5A | LED Ok And O/P Monitor Signal | Din Rail | Single | 90-264V AC | IP20 | €429.70 | |
 |
33NT13 | Metal Case | Greater Than 20 ms | 15A | LED Ok And O/P Monitor Signal | Din Rail | Single | 90-264V AC | IP20 | €566.78 | |
 |
33NT14 | Metal Case | Greater Than 20 ms | 25A | LED Ok And O/P Monitor Signal | Din Rail | Single | 90-264V AC | IP20 | €539.28 | |
 |
33NT15 | Plastic Case | Greater Than 16 ms | 1.25A | Green DC Ok Signal | Din Rail | Single | 90-264V AC | IP20 | €71.25 | |
 |
33NT16 | Plastic Case | Greater Than 16 ms | 2.5A | Green DC Ok Signal | Din Rail | Single | 90-264V AC | IP20 | €85.54 |
