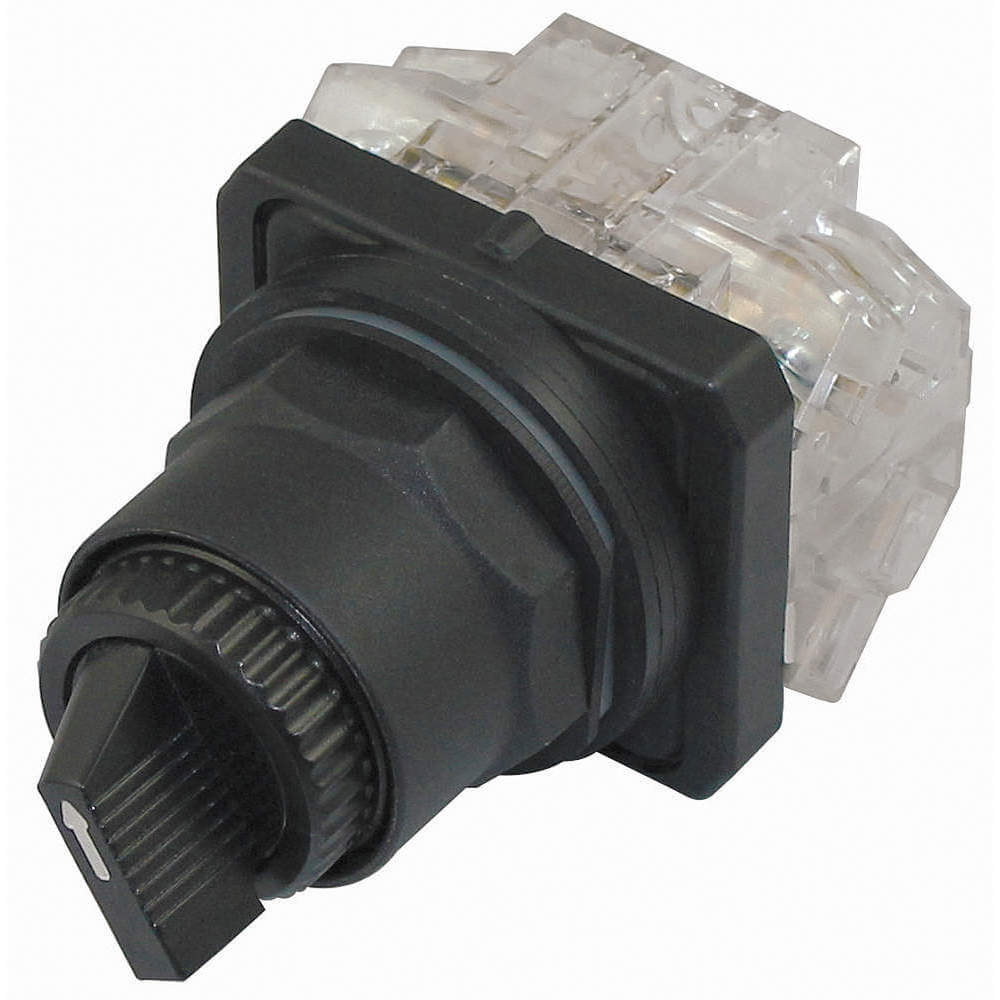

DAYTON 31XH91 Non-Illuminated Selector Swtch 30mm 2 Position Lever
Item: AH3GLEModel: 31XH91
7 In Stock
Ships within 2 days via
10.00% off
€175.20 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Non-Illuminated Select Switch |
| Ac Contact Rating | 10A @ 600V |
| Action | Maintained/Maintained |
| Basic Material | Plastic |
| Bezel Color | Chrome |
| Bezel Material | Plastic |
| Cam | E |
| Color | Black |
| Contact Block Material | Plastic |
| Contact Form | 2NO/2NC |
| Contact Rating | 10A @ 600V AC |
| Dc Contact Rating | 0.1A @ 600V, 0.27A @ 250V, 0.55A @ 125V |
| Hazardous Location Specification | Not Rated |
| Ip Rating | IP65 |
| Key Removal | No Key |
| Manufacturer Warranty Length | 1 yr. |
| Nema Contact Rating Designation | A600/Q600 |
| Nema Enclosure Rating | NEMA 4, NEMA 4X, NEMA 13 |
| Nema Rating | NEMA 13, NEMA 4, NEMA 4X |
| Number Of Positions | 2 |
| Operator Head Color | Black |
| Operator Head Material | Plastic |
| Operator Illumination | Non Illuminated |
| Overall Depth | 1.97" |
| Overall Height | 3.19" |
| Overall Width | 1.73" |
| Panel Mounting Hole Diameter | 30 mm |
| Switch Function @ 1st Position | On |
| Switch Function @ 2nd Position | On |
| Switch Function @ 3rd Position | No Third Position |
| Switch Function @ 4th Position | No Fourth Position |
| Switch Head Type | Extended Lever |
| Switch Operation @ Position A | XX |
| Switch Operation @ Position B | XX |
| Switch Operation @ Position C | No Third Position |
| Switch Operation @ Position D | No Fourth Position |
| Type Of Operator | Lever |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 13.46 |
| Ship length (cm) | 5.84 |
| Ship width (cm) | 5.84 |
| Country of Origin | CN |
Product Details:
- Bezel Color : Chrome
Product Variants
| Product | Model | Number Of Positions | Contact Form | Cam | Basic Material | Switch Operation @ Position C | Operator Head Material | Bezel Color | Bezel Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
30G259 | 2 | 1NO | No Cam | Metal | On | Metal | Silver | Die Cast Aluminum | €21.57 | |
 |
30G264 | 2 | 1NO | No Cam Included | Plastic | On | Plastic | Silver | Plastic | €16.20 | |
 |
30G265 | 2 | - | No Cam Included | Metal | No Third Position | Plastic | Silver | Aluminum | €55.35 | |
 |
30G266 | 2 | 1NO | No Cam Included | Plastic | On | Plastic | Silver | Plastic | €55.35 | |
 |
30G267 | 2 | 1NO | No Cam Included | Metal | On | Plastic | Silver | Aluminum | €55.35 | |
 |
30G269 | 2 | 1NO | No Cam | Metal | On | Metal | Silver | Die Cast Aluminum | €21.61 | |
 |
30G270 | 2 | 1NO | No Cam | Plastic | On | Metal | Silver | Plastic | €15.44 |
