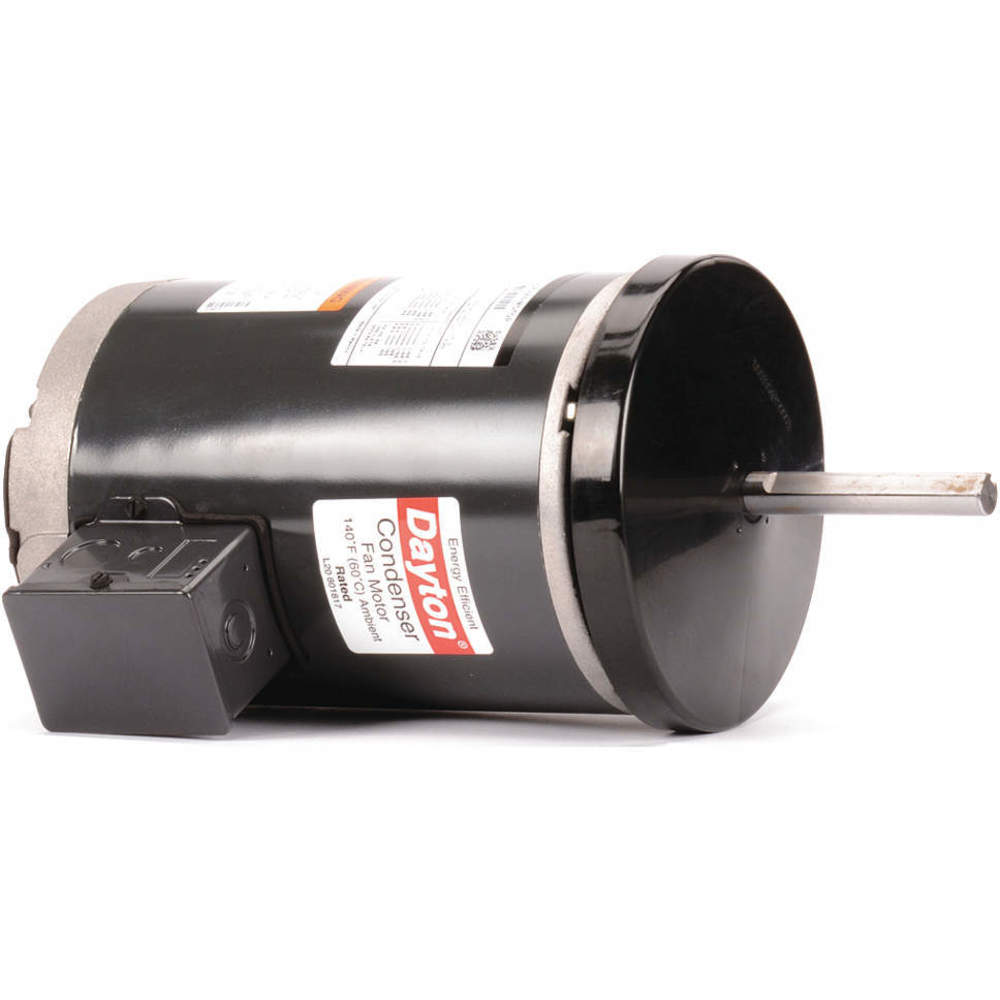

DAYTON 31TR61 Fan Motor 1 Hp 1140 220-230/460
Get it by Tuesday, Dec 23
10.00% off
€850.03 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Condenser Fan Motor |
| Ambient Temp. | 60°C |
| Bearing Type | Ball |
| Body Dia. | 6 1/2" |
| Bolt Circle Dia. | 5 7/8" |
| Capacitor Required | No |
| Dia. | 6 1/2" |
| Diameter | 6 1/2" |
| Duty Cycle | Continuous |
| Efficiency | 83.4% |
| Enclosure Type | Open Air Over |
| Features | Quick Disconnect Design |
| Frame | 56Z |
| Frequency | 60 Hz |
| Full Load Amps | 4.3-4.6/2.3A |
| Hp | 1 hp |
| Insulation Class | Class B |
| Inverter Rated | Yes |
| Lead Length | 6" |
| Length | 14 9/16" |
| Length Less Shaft | 11 5/8" |
| Max. Ambient Temp. | 60°C |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Air Over |
| Motor Mounting Position | Horizontal/Vertical Shaft Up |
| Motor Mounting Type | Band |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Sub Application | Condenser Fan |
| Motor Thermal Protection | Auto |
| Motor Type | Three Phase |
| Mounting Stud Pattern | 4 1/8" x 4 1/8" |
| Mounting Stud Size | #10-32 |
| Mounting Type | Band |
| No. Of Speeds | 1 |
| No. Of Studs | 4 |
| Nominal Efficiency | 83.4% |
| Overall Length | 14 9/16" |
| Phase | 3 |
| Rpm | 1140 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 4 3/4" |
| Shaft Type | Flat |
| Stud Pattern | 4 1/8" x 4 1/8" |
| Stud Quantity | 4 |
| Stud Size | #10-32 |
| Thermal Protection | Automatic |
| Voltage | 200-230/460V AC |
Shipping Info:
| Ship weight (kg) | 17.66 |
| Ship height (cm) | 27.62 |
| Ship length (cm) | 46.99 |
| Ship width (cm) | 26.67 |
| HS code | 8501516040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Hp | Motor Mounting Position | Frame | Phase | Shaft Length | Motor Enclosure Design | Motor Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
24PR70 | 208-230/460V AC | 1 hp | Vertical Shaft Up | 56YZ | 3 | 3" | Open Air Over | 3-Phase | €1,106.24 | |
 |
24PR71 | 208-230/460V AC | 1 hp | Vertical Shaft Up | 56YZ | 3 | 5 5/8" | Open Air Over | 3-Phase | €1,306.91 | |
|
24PR72 | 208-230/460V AC | 1 hp | Vertical Shaft Up | 56YZ | 3 | 5 5/8" | Open Air Over | 3-Phase | €721.68 | |
|
24PR73 | 208-230/460V AC | 1 1/2 hp | Vertical Shaft Up | 56YZ | 3 | - | Open Air Over | 3-Phase | €1,244.59 | |
|
24PR74 | 208-230/460V AC | 1 1/2 hp | Vertical Shaft Up | 56YZ | - | 5 5/8" | Open Air Over | 3-Phase | €1,076.05 | |
|
24PR75 | 208-230/460V AC | 2 hp | Vertical Shaft Up | 56YZ | 3 | 5 5/8" | Open Air Over | 3-Phase | €875.16 | |
 |
24PR76 | 230/460V AC | 1/2 hp | Vertical Shaft Up | 56YZ | 3 | 3 1/4" | Open Air Over | 3-Phase | €1,412.98 |
