DAYTON 31LZ69 Drill Press Vise Fixed 5 Inch
Get it by Thursday, Dec 18
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€140.98 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Drill Press Vise |
| Base | Fixed |
| Base Type | Fixed |
| Bed/base | 0.008" |
| Clamping Force | 750 lbs. |
| Features | High Precision Fully Ground Base |
| Jaw Deflection | 0.0125" At 33 lb. |
| Jaw Opening | 5" |
| Jaw Plate | 0.008" |
| Jaw Width | 5" |
| Overall Height | 3" |
| Overall Length | 12" |
| Type | Precision |
Shipping Info:
| Ship weight (kg) | 8.64 |
| Ship height (cm) | 9.5 |
| Ship length (cm) | 32.51 |
| Ship width (cm) | 19 |
| HS code | 8466208065 |
| Country of Origin | IN |
Product Variants
| Product | Model | Type | Jaw Width | Jaw Opening | Overall Height | Throat Depth | Overall Length | Clamping Force | Bed/base | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

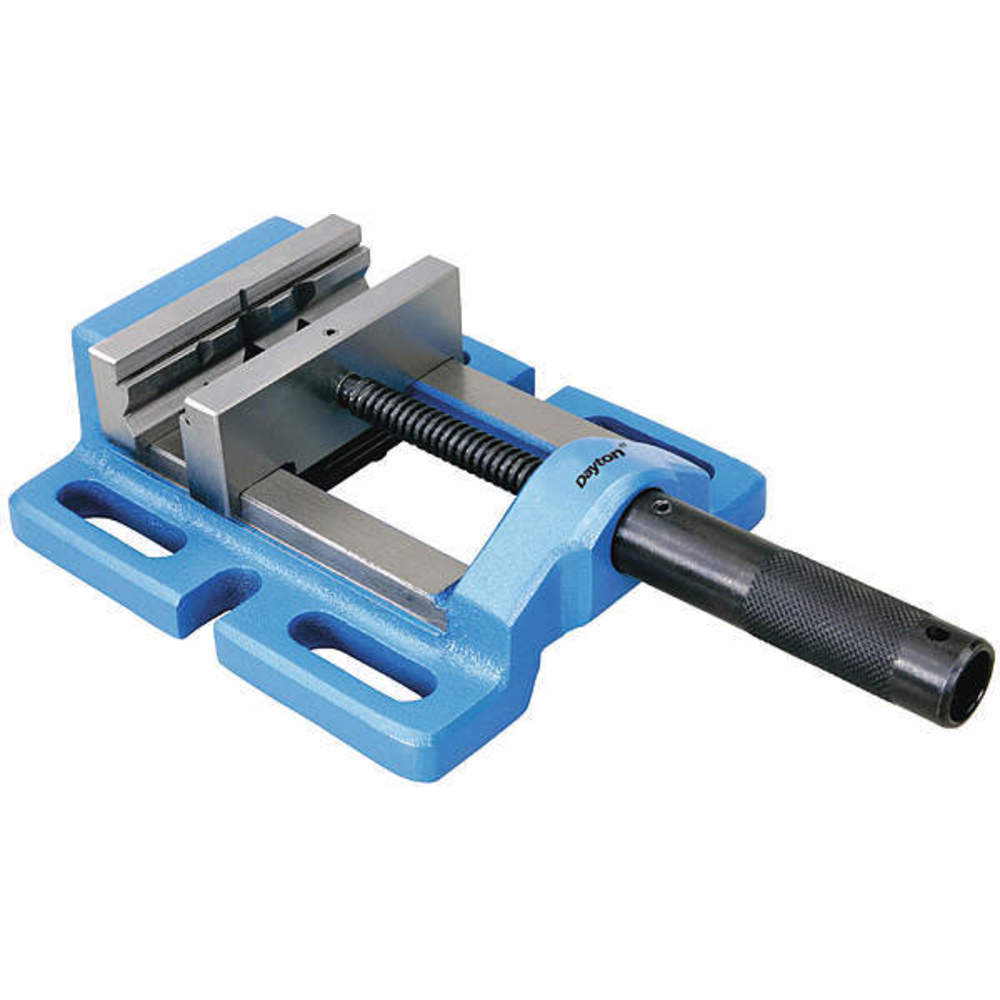

31LZ64 | Uni Grip | 3" | 2 3/4" | 2 1/2" | 1 1/4" | 9" | 450 lbs. | 0.002" | €100.00 | |
|
31LZ65 | Uni Grip | 4" | 4" | 2 1/2" | 1 1/4" | 11" | 450 lbs. | 0.003" | €130.75 | |
|
31LZ66 | Uni Grip | 4 3/4" | 4 1/2" | 2 1/2" | 1 1/2" | - | 450 lbs. | 0.004" | €177.71 | |
|

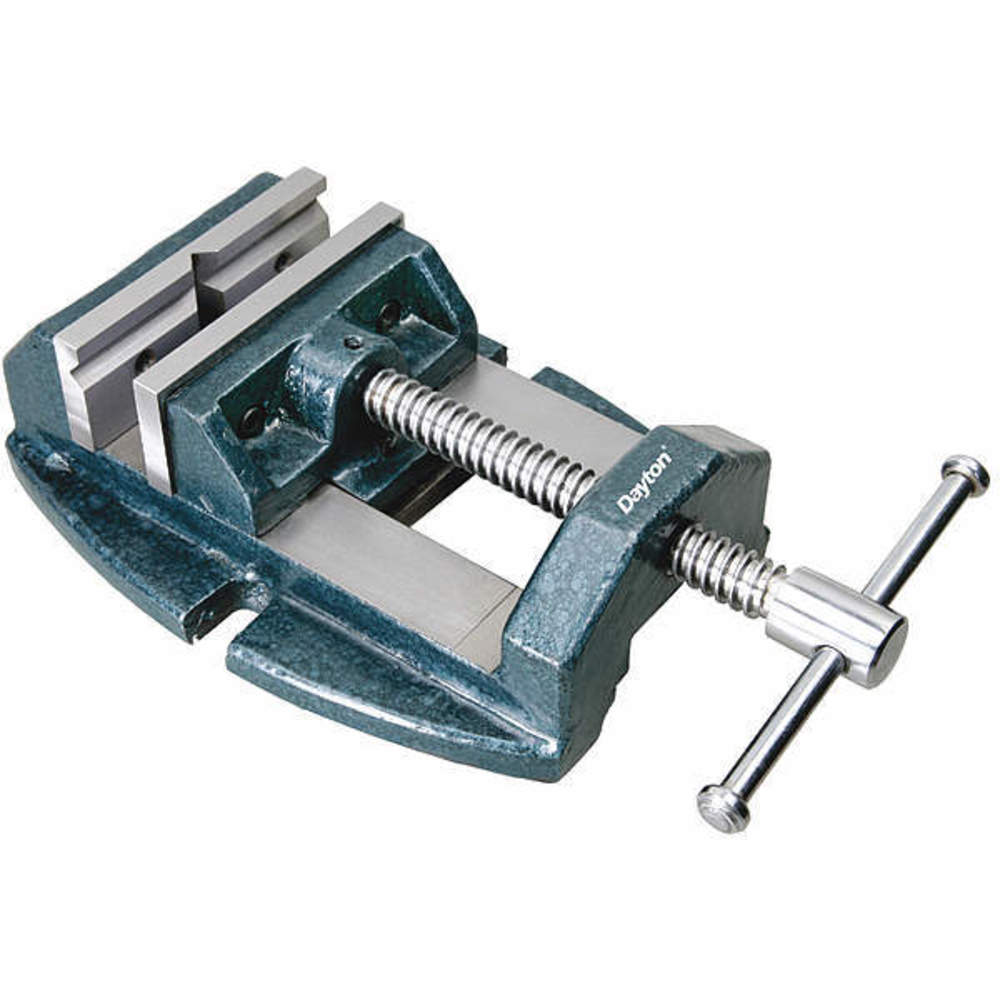

31LZ67 | Precision | 3" | 2 3/4" | 2" | 1 1/4" | 7 1/2" | 450 lbs. | 0.004" | €86.23 | |
|
31LZ68 | Precision | 4" | 4" | 2 1/2" | 1 1/2" | 9 1/2" | 750 lbs. | 0.004" | €104.05 | |
|
31LZ70 | Precision | 6" | 6" | 3 1/2" | 2 5/16" | 13 1/4" | 1100 lbs. | 0.008" | €260.74 | |
 |

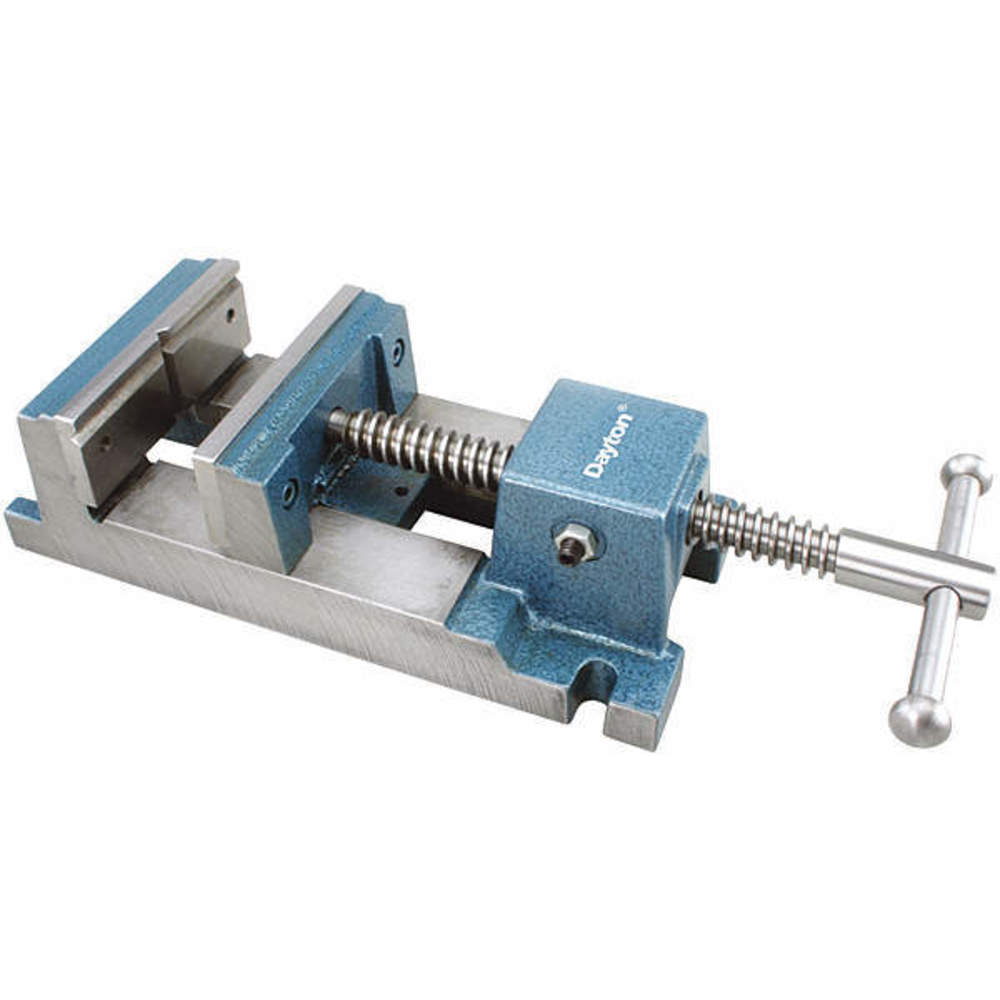

31LZ71 | Spindle Quick Release | 3 1/2" | 4" | 3" | 1 3/4" | 11 1/2" | 450 lbs. | 0.004" | €184.87 |
