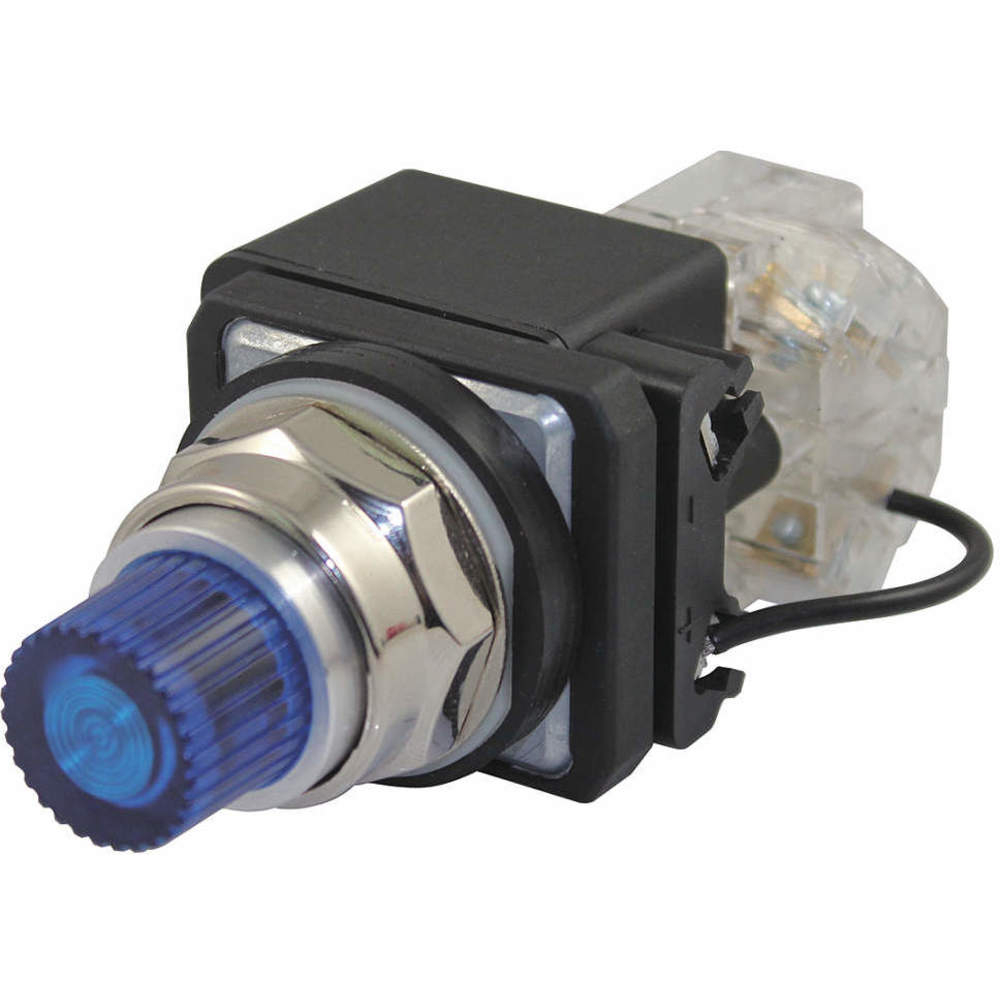

DAYTON 30G409 Pilot Light Led 24vac/dc 30mm Chrome Blue
Item: AC4NVTModel: 30G409
7 In Stock
Ships within 2 days via
Request a Quote
Payment
Product Specifications:
| Item | Push to Test Pilot Light |
| Basic Material | Metal |
| Body Color | Silver |
| Body Finish | Chrome Plated |
| Body Material | Zinc Die Cast |
| Color | Blue |
| Included Lamp Module | Lamp Module Included |
| Included Lens | Lens Included |
| Included Push-to-test | Push To Test Included |
| Ip Rating | IP65 |
| Lamp Bulb Color | Blue |
| Lamp Bulb Type | LED |
| Lamp Module Type | Full Voltage |
| Lamp Type | LED |
| Lamp Voltage | 24V |
| Lens Color | Blue |
| Lens Material | Plastic |
| Lens Type | Fresnel |
| Max. Lamp Bulb Voltage | 24V AC/DC |
| Max. Supply Voltage | 24V AC/DC |
| Nema Enclosure Rating | Nema 4, Nema 13 |
| Overall Depth | 2.17" |
| Overall Height | 4.39" |
| Overall Width | 1.73" |
| Panel Mounting Hole Dia. | 30 mm |
| Replacement Lamps | Not Applicable |
| Resistance Properties | Non Magnetic |
| Series | DAYTON Series |
| Shape | Round |
| Terminal Connection | Pressure Plate |
| Terminal Connection Type | Pressure Plate |
Shipping Info:
| Ship weight (kg) | 0.2 |
| Ship height (cm) | 5.84 |
| Ship length (cm) | 9.14 |
| Ship width (cm) | 10.92 |
| HS code | 8531800050 |
| Country of Origin | CN |
Product Variants
| Product | Model | Lamp Module Type | Lens Color | Basic Material | Color | Lamp Voltage | Max. Supply Voltage | Lamp Bulb Color | Max. Lamp Bulb Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

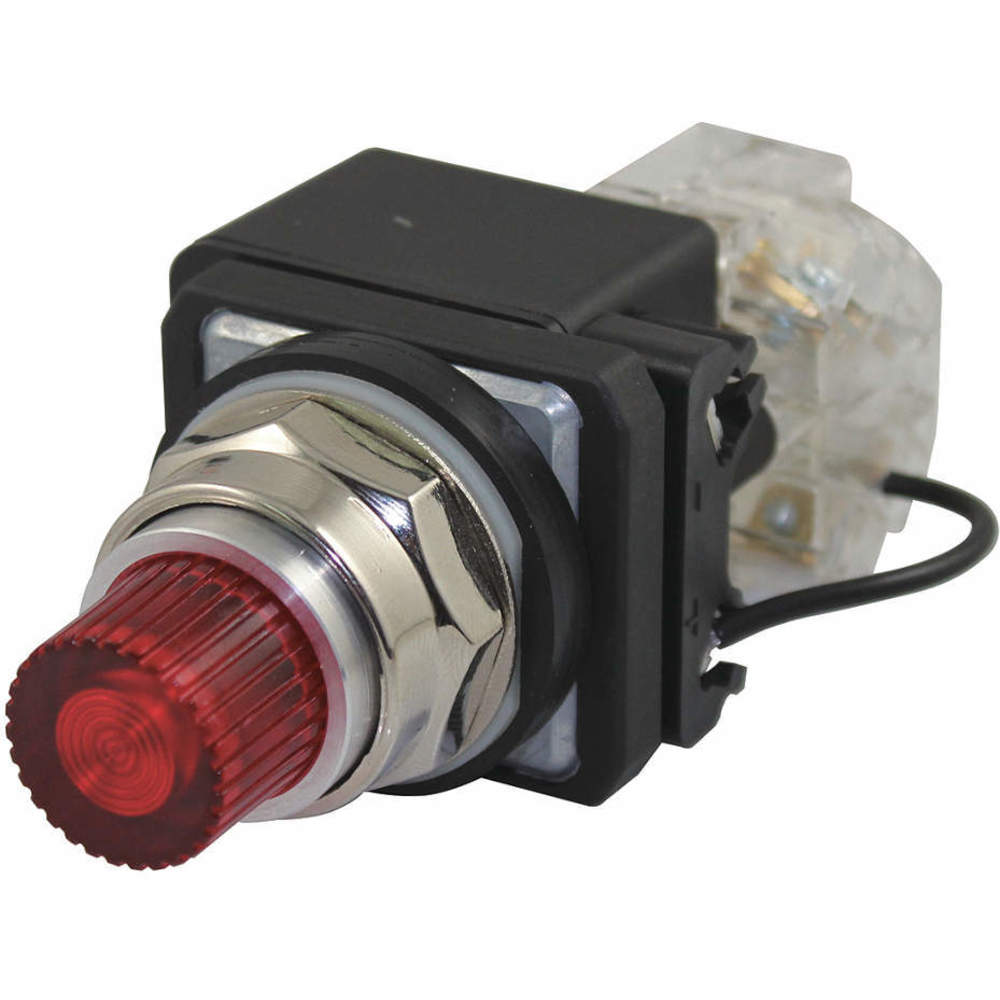

30G407 | Full Voltage | Red | Metal | Red | 24V | 24V AC/DC | Red | 24V AC/DC | €335.80 | |
 |
30G408 | Full Voltage | Green | Metal | Green | 24V | 24V AC/DC | Green | 24V AC/DC | €335.80 | |
 |

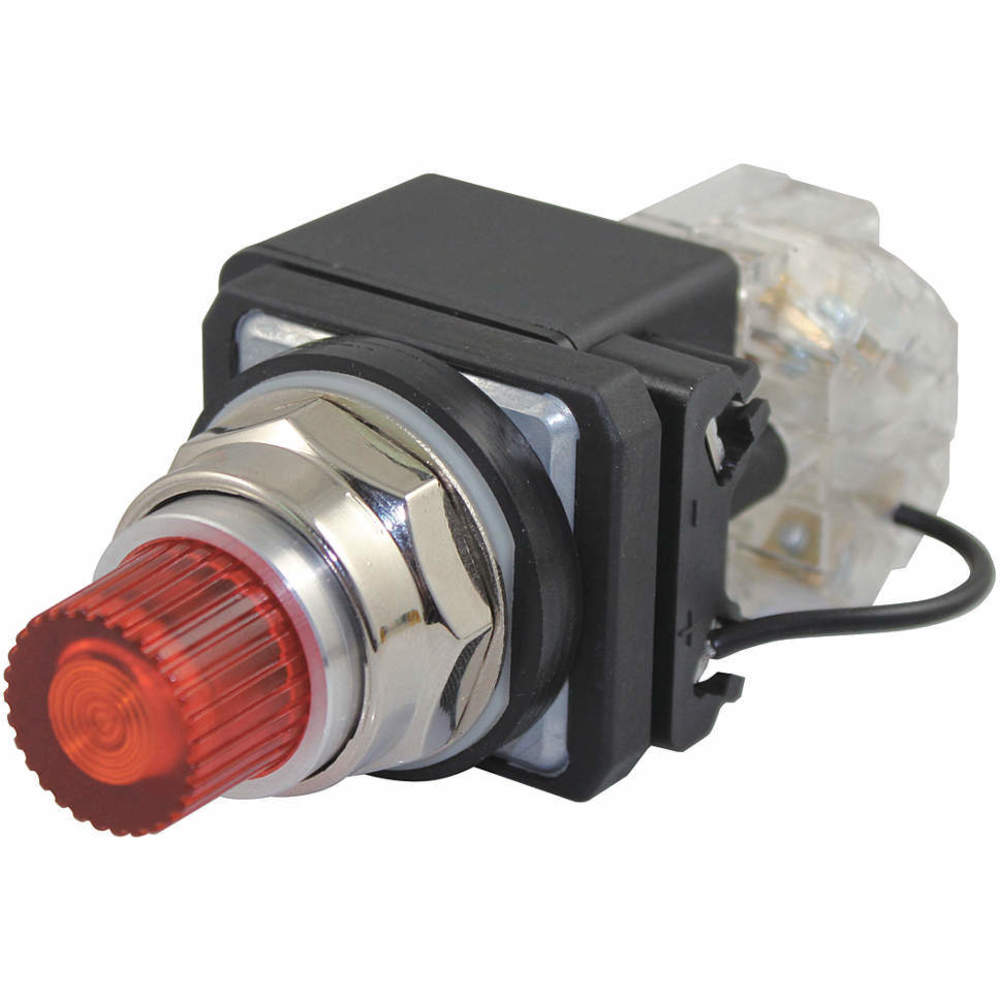

30G410 | Full Voltage | Amber | Metal | Amber | 24V | 24V AC/DC | Amber | 24V AC/DC | - | RFQ
|
 |

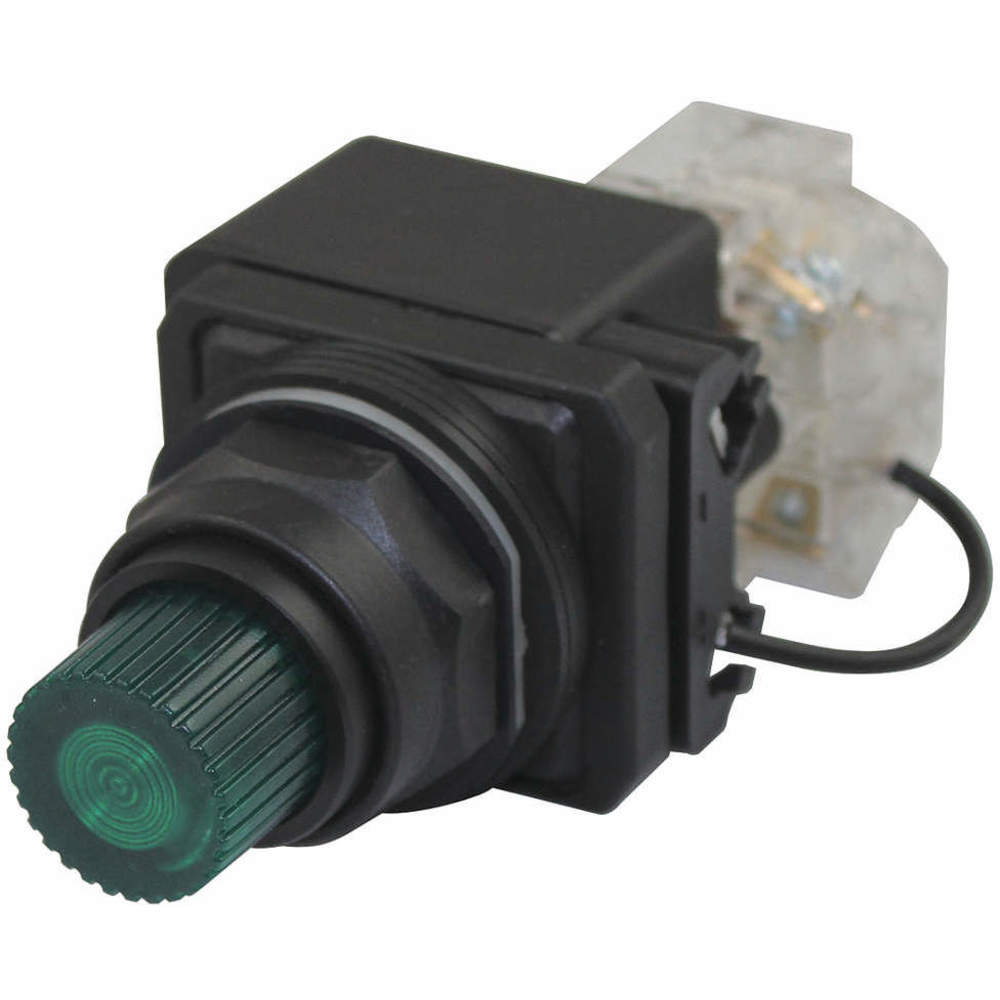

30G412 | Full Voltage | - | Plastic | Green | 24V | - | - | - | - | RFQ
|
 |

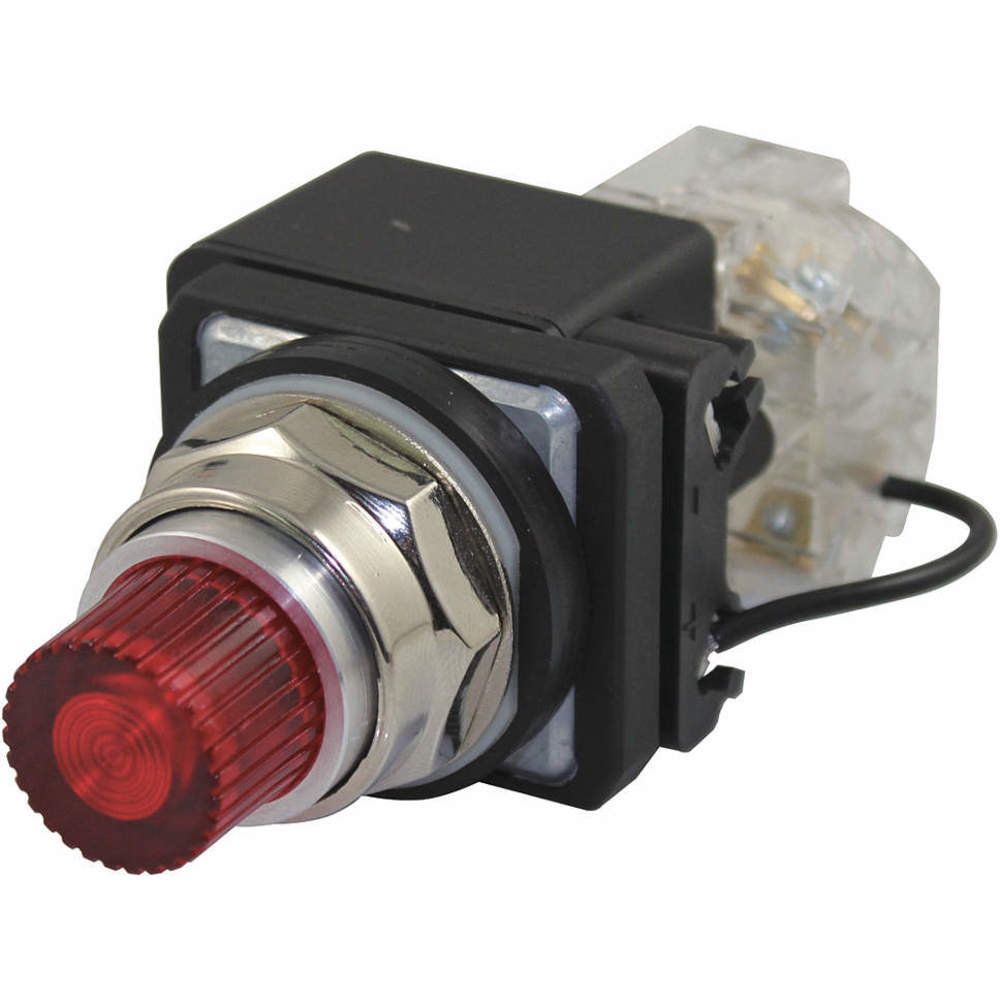

30G417 | Transformer | Red | Metal | Red | 6V | 120V AC | Red | 6V AC/DC | - | RFQ
|
 |

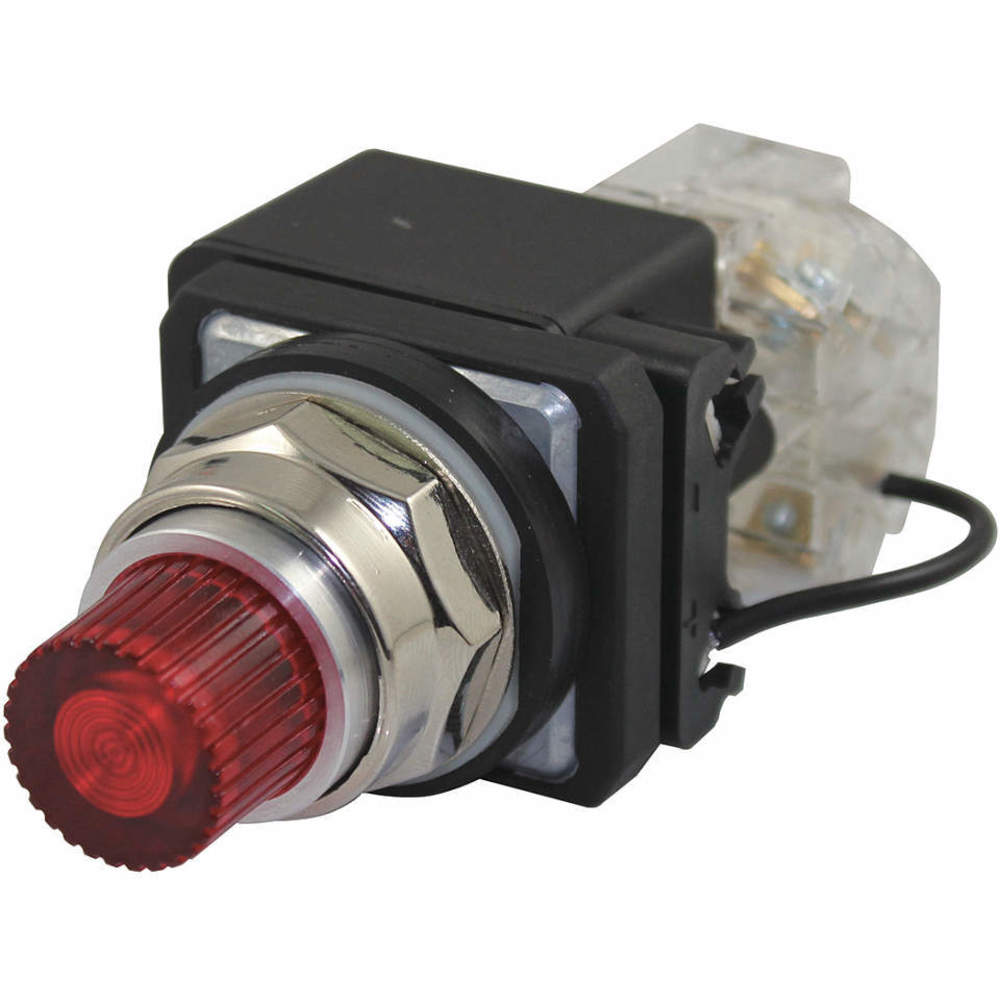

30G423 | Full Voltage | Red | Metal | Red | 120V AC | 120V AC | Red | 120V AC | €335.80 | |
|
30G424 | Full Voltage | Green | Metal | Green | 120V AC | 120V AC | Green | 120V AC | €335.80 |
