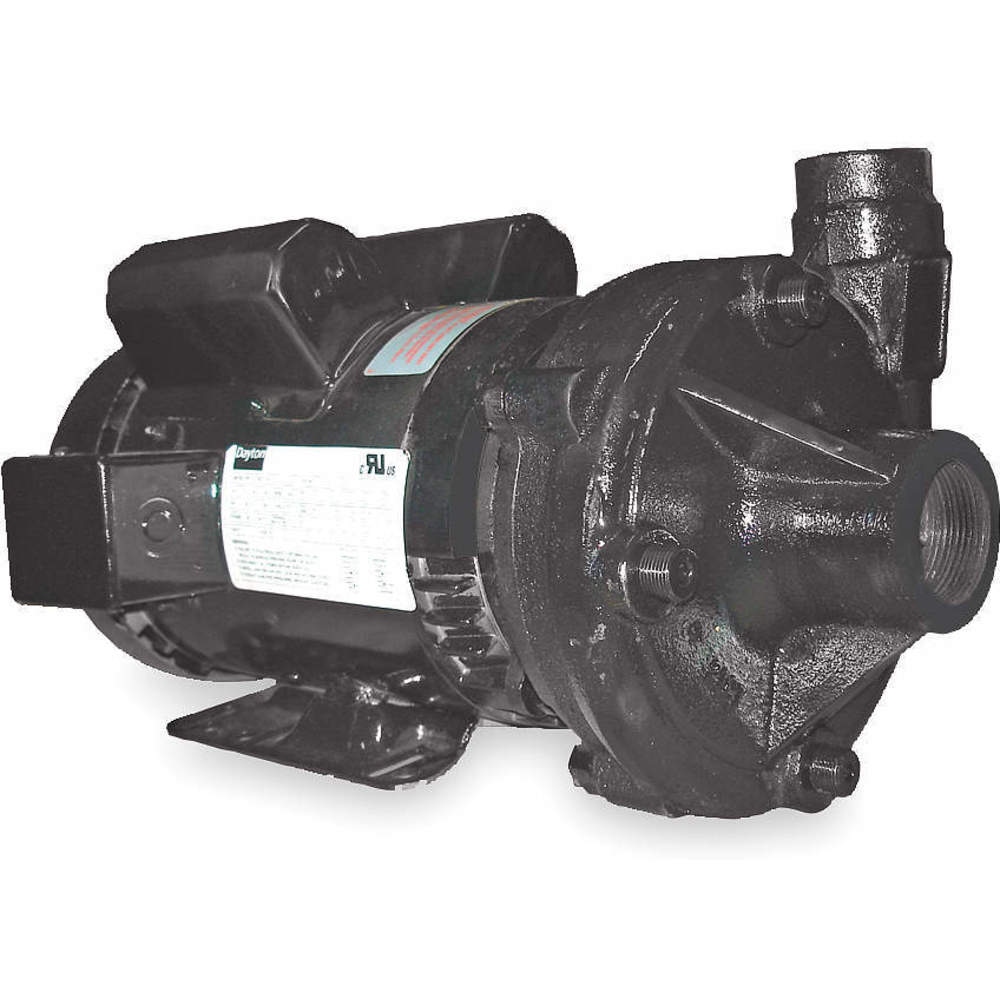

DAYTON 2ZXN8 Centrifugal Pump 3 Hp 1ph 230v
Get it by Tuesday, Dec 23
10.00% off
€1,036.23 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Centrifugal Pump |
| Amps | 12.5A |
| Bearing Type | Ball |
| Best Efficiency Flow | 95 GPM |
| Best Efficiency Flow Range @ Head | 40 to 87 GPM @ 100 to 50 ft. |
| Best Efficiency Flow Rate @ Head | 70 GPM @ 72 ft. |
| Best Efficiency Head | 57 ft. |
| Compatible Discharge Pipe Size | 1 1/4" |
| Compatible Intake Pipe Size | 1 1/2" |
| Drain Plug | Easily Accessible |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Features | Continuous High Pressure Circulation |
| Feet Of Head (minimum) | 10 ft. |
| Flow Rate @ 1 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 10 Ft Of Head (maximum) | 107 GPM |
| Flow Rate @ 100 Ft Of Head (maximum) | 43 GPM |
| Flow Rate @ 120 Ft Of Head (maximum) | 17 GPM |
| Flow Rate @ 140 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 15 Ft Of Head (maximum) | 105 GPM |
| Flow Rate @ 160 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 180 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 20 Ft Of Head (maximum) | 103 GPM |
| Flow Rate @ 200 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 220 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 240 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 260 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 280 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 30 Ft Of Head (maximum) | 98 GPM |
| Flow Rate @ 300 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 40 Ft Of Head (maximum) | 92 GPM |
| Flow Rate @ 5 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 50 Ft Of Head (maximum) | 87 GPM |
| Flow Rate @ 60 Ft Of Head (maximum) | 79 GPM |
| Flow Rate @ 70 Ft Of Head (maximum) | 72 GPM |
| Flow Rate @ 80 Ft Of Head (maximum) | 63 GPM |
| Flow Rate @ 90 Ft Of Head (maximum) | 55 GPM |
| For Media Type | Non-Flammable Liquids |
| For Use With Potable Systems | No |
| Frame | 56J |
| Gpm Of Water @ 100 Ft. Of Head | 43 |
| Gpm Of Water @ 110 Ft. Of Head | 32 |
| Gpm Of Water @ 120 Ft. Of Head | 17 |
| Gpm Of Water @ 130 Ft. Of Head | 2 |
| Gpm Of Water @ 90 Ft. Of Head | 55 |
| Height | 8.9" |
| Housing Material | Cast Iron |
| Hp | 3 hp |
| Hp - Pumps | 3 hp |
| Impeller Design | Closed |
| Impeller Material | Brass |
| Impeller Type | Closed |
| Includes | Manual |
| Inlet Pressure | 200 psi |
| Length | 18" |
| Max. Case Pressure | 200 psi |
| Max. Feet Of Head | 130 ft. |
| Max. Flow Rate @ 10 Ft. | 107 GPM |
| Max. Flow Rate @ 100 Ft. | 43 GPM |
| Max. Flow Rate @ 110 Ft. | 32 GPM |
| Max. Flow Rate @ 120 Ft. | 17 GPM |
| Max. Flow Rate @ 130 Ft. | 2 GPM |
| Max. Flow Rate @ 140 Ft. | 105 GPM |
| Max. Flow Rate @ 15 Ft. | 105 GPM |
| Max. Flow Rate @ 20 Ft. | 103 GPM |
| Max. Flow Rate @ 25 Ft. | 100 GPM |
| Max. Flow Rate @ 30 Ft. | 98 GPM |
| Max. Flow Rate @ 40 Ft. | 92 GPM |
| Max. Flow Rate @ 50 Ft. | 87 GPM |
| Max. Flow Rate @ 60 Ft. | 79 GPM |
| Max. Flow Rate @ 70 Ft. | 72 GPM |
| Max. Flow Rate @ 80 Ft. | 63 GPM |
| Max. Flow Rate @ 90 Ft. | 55 GPM |
| Max. Flow Rate @ Head | 107 GPM @ 10 ft. |
| Max. Head | 131 ft. |
| Max. Liquid Temp. | 200°F |
| Max. Operating Pressure | 56 psi |
| Max. Solid Dia. | 5/16" |
| Max. Specific Gravity | 1 |
| Media Type | Non Flammable Liquids |
| Min. Flow Rate @ Head | 2 GPM @ 130 ft. |
| Min. Head | 10 ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Designation | 56J |
| Motor Type | Totally Enclosed Fan Cooled |
| Overall Height | 8.9" |
| Overall Length | 18" |
| Overall Width | 8 4/5" |
| Phase | 1 |
| Port Rotation | Four Position |
| Pump Housing Material | Cast Iron |
| Rpm | 3450 RPM |
| Screw Finish | Zinc Plated |
| Seal Application | Long Life When Not Run Dry Or Pumping Abrasives |
| Seal Material | Viton |
| Seal Type | Mechanical |
| Service Factor | 1 |
| Shaft Material | Stainless Steel |
| Shut Off Pressure | 56 psi |
| Shut Off Pressure (maximum) | 56 psi |
| Solid Diameter (maximum) | 0.31" |
| Specific Gravity | 1 |
| Specific Gravity (maximum) | 1 |
| Type | High Head |
| Voltage | 230V AC |
| Volute Material | Cast Iron |
| Wetted Material | Brass, Carbon, Cast Iron, Ceramic, Stainless Steel, Viton |
| Wetted Materials | Brass, Carbon, Cast Iron, Ceramic, Stainless Steel, Viton |
| Width | 8 4/5" |
Shipping Info:
| Ship weight (kg) | 35.05 |
| Ship height (cm) | 22.61 |
| Ship length (cm) | 45.72 |
| Ship width (cm) | 22.35 |
| HS code | 8413702005 |
| Country of Origin | IN |
Product Details:
- GPM of Water @ 114 Ft. of Head (25)
Product Variants
| Product | Model | Hp | Max. Flow Rate @ 40 Ft. | Voltage | Phase | Max. Flow Rate @ 20 Ft. | Compatible Intake Pipe Size | Compatible Discharge Pipe Size | Motor Enclosure Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2ZWZ6 | 1/2 hp | 32 GPM | 115/230V AC | 1 | 39 GPM | 1 1/4" | 1" | Open Dripproof | €1,194.40 | |
 |
2ZWZ7 | 1/2 hp | 32 GPM | 208-230/460V AC | 3 | 39 GPM | 1 1/4" | 1" | Open Dripproof | €1,124.39 | |
|
2ZWZ8 | 3/4 hp | 42 GPM | 115/230V AC | 1 | 49 GPM | 1 1/4" | 1" | Open Dripproof | €1,202.64 | |
|
2ZWZ9 | 3/4 hp | 42 GPM | 208-230/460V AC | 3 | 49 GPM | 1 1/4" | 1" | Open Dripproof | €1,173.57 | |
|
2ZXA3 | 1 1/2 hp | 78 GPM | 115/230V AC | 1 | 90 GPM | 1 1/2" | 1" | Open Dripproof | €1,568.11 | |
|
2ZXA4 | 1 1/2 hp | 78 GPM | 208-230/460V AC | 3 | 90 GPM | 1 1/2" | 1 1/4" | Open Dripproof | €1,482.25 | |
 |
2ZXA5 | 2 hp | 78 GPM | 115/230V AC | 1 | 90 GPM | 1 1/2" | 1 1/4" | Totally Enclosed Fan Cooled | €2,274.53 |
