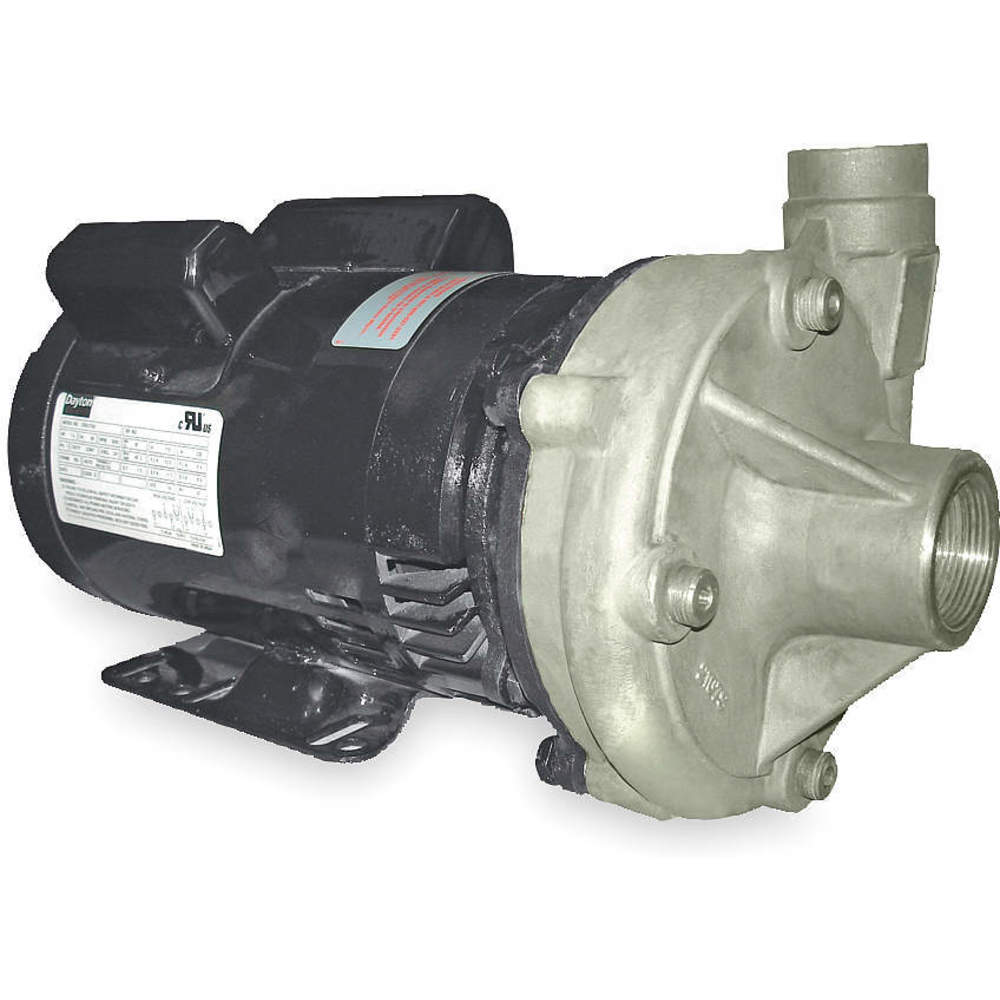

DAYTON 2ZXK6 Centrifugal Pump 3/4 Hp 1ph 115/230v
Get it by Tuesday, Dec 23
10.00% off
€1,271.30 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Centrifugal Pump |
| Amps | 11.3/5.6A |
| Bearing Type | Ball |
| Best Efficiency Flow | 33 GPM |
| Best Efficiency Flow Range @ Head | 20 to 44 GPM @ 80 to 35 ft. |
| Best Efficiency Flow Rate @ Head | 33 GPM @ 59 ft. |
| Best Efficiency Head | 59 ft. |
| Compatible Discharge Pipe Size | 1" |
| Compatible Intake Pipe Size | 1 1/4" |
| Compatible With Media Type | Non Flammable Liquids |
| Connection Type | NPT |
| Discharge Type | NPT |
| Drain Plug | Easily Accessible |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Features | Continuous High Pressure Circulation |
| Feet Of Head (minimum) | 10 ft. |
| Flow Rate @ 1 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 10 Ft Of Head (maximum) | 53 GPM |
| Flow Rate @ 100 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 120 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 140 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 15 Ft Of Head (maximum) | 51 GPM |
| Flow Rate @ 160 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 180 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 20 Ft Of Head (maximum) | 49 GPM |
| Flow Rate @ 200 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 220 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 240 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 260 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 280 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 30 Ft Of Head (maximum) | 46 GPM |
| Flow Rate @ 300 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 40 Ft Of Head (maximum) | 42 GPM |
| Flow Rate @ 5 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 50 Ft Of Head (maximum) | 37 GPM |
| Flow Rate @ 60 Ft Of Head (maximum) | 32 GPM |
| Flow Rate @ 70 Ft Of Head (maximum) | 27 GPM |
| Flow Rate @ 80 Ft Of Head (maximum) | 19 GPM |
| Flow Rate @ 90 Ft Of Head (maximum) | 12 GPM |
| For Media Type | Non-Flammable Liquids |
| For Use With Potable Systems | No |
| Frame | 56J |
| Frequency | 60 Hz |
| Gpm Of Water @ 90 Ft. Of Head | 12 |
| Height | 8 1/2" |
| Housing Material | Stainless Steel |
| Hp | 3/4 hp |
| Hp - Pumps | 3/4 hp |
| Impeller Design | Closed |
| Impeller Material | Stainless Steel |
| Impeller Type | Closed |
| Includes | Manual |
| Inlet Pressure | 200 psi |
| Length | 15 1/2" |
| Max. Case Pressure | 200 psi |
| Max. Feet Of Head | 98 ft. |
| Max. Flow Rate @ 10 Ft. | 53 GPM |
| Max. Flow Rate @ 140 Ft. | 51 GPM |
| Max. Flow Rate @ 15 Ft. | 51 GPM |
| Max. Flow Rate @ 20 Ft. | 49 GPM |
| Max. Flow Rate @ 25 Ft. | 47 GPM |
| Max. Flow Rate @ 30 Ft. | 46 GPM |
| Max. Flow Rate @ 40 Ft. | 42 GPM |
| Max. Flow Rate @ 50 Ft. | 37 GPM |
| Max. Flow Rate @ 60 Ft. | 32 GPM |
| Max. Flow Rate @ 70 Ft. | 27 GPM |
| Max. Flow Rate @ 80 Ft. | 19 GPM |
| Max. Flow Rate @ 90 Ft. | 12 GPM |
| Max. Flow Rate @ Head | 53 GPM @ 10 ft. |
| Max. Head | 98 ft. |
| Max. Liquid Temp. | 200°F |
| Max. Operating Pressure | 42 psi |
| Max. Solid Dia. | 5/32" |
| Max. Specific Gravity | 1 |
| Maximum Flow Rate @ 140 Feet Of Head | 51 GPM |
| Media Type | Non Flammable Liquids |
| Min. Flow Rate @ Head | 12 GPM @ 90 ft. |
| Min. Head | 10 ft. |
| Motor Enclosure - Pumps | Open Dripproof |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Designation | 56J |
| Motor Type | Open Dripproof |
| Overall Height | 8 1/2" |
| Overall Length | 15 1/2" |
| Overall Width | 7.9" |
| Phase | 1 |
| Port Rotation | Four Position |
| Pump Housing Material | Stainless Steel |
| Rpm | 3450 RPM |
| Rpm (maximum) | 3450 RPM |
| Screw Material | Stainless Steel |
| Seal Application | Long Life When Not Run Dry Or Pumping Abrasives |
| Seal Material | Viton |
| Seal Type | Mechanical |
| Service Factor | 1.5 |
| Shaft Material | Stainless Steel |
| Shut Off Pressure | 42 psi |
| Shut Off Pressure (maximum) | 42 psi |
| Solid Diameter (maximum) | 4/25" |
| Specific Gravity | 1 |
| Specific Gravity (maximum) | 1 |
| Type | High Head |
| Voltage | 115/230V AC |
| Volute Material | Stainless Steel |
| Wetted Material | Carbon Ceramic, Stainless Steel, Viton |
| Wetted Materials | Carbon, Ceramic, Stainless Steel, Viton |
| Width | 7.9" |
Shipping Info:
| Ship weight (kg) | 19.53 |
| Ship height (cm) | 21.59 |
| Ship length (cm) | 39.37 |
| Ship width (cm) | 20.07 |
| HS code | 8413702005 |
| Country of Origin | IN |
Product Variants
| Product | Model | Hp | Max. Flow Rate @ 40 Ft. | Voltage | Phase | Max. Flow Rate @ 20 Ft. | Compatible Intake Pipe Size | Compatible Discharge Pipe Size | Motor Enclosure Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2ZWZ6 | 1/2 hp | 32 GPM | 115/230V AC | 1 | 39 GPM | 1 1/4" | 1" | Open Dripproof | €1,194.40 | |
 |
2ZWZ7 | 1/2 hp | 32 GPM | 208-230/460V AC | 3 | 39 GPM | 1 1/4" | 1" | Open Dripproof | €1,124.39 | |
|
2ZWZ8 | 3/4 hp | 42 GPM | 115/230V AC | 1 | 49 GPM | 1 1/4" | 1" | Open Dripproof | €1,202.64 | |
|
2ZWZ9 | 3/4 hp | 42 GPM | 208-230/460V AC | 3 | 49 GPM | 1 1/4" | 1" | Open Dripproof | €1,173.57 | |
|
2ZXA3 | 1 1/2 hp | 78 GPM | 115/230V AC | 1 | 90 GPM | 1 1/2" | 1" | Open Dripproof | €1,568.11 | |
|
2ZXA4 | 1 1/2 hp | 78 GPM | 208-230/460V AC | 3 | 90 GPM | 1 1/2" | 1 1/4" | Open Dripproof | €1,482.25 | |
 |
2ZXA5 | 2 hp | 78 GPM | 115/230V AC | 1 | 90 GPM | 1 1/2" | 1 1/4" | Totally Enclosed Fan Cooled | €2,274.53 |
