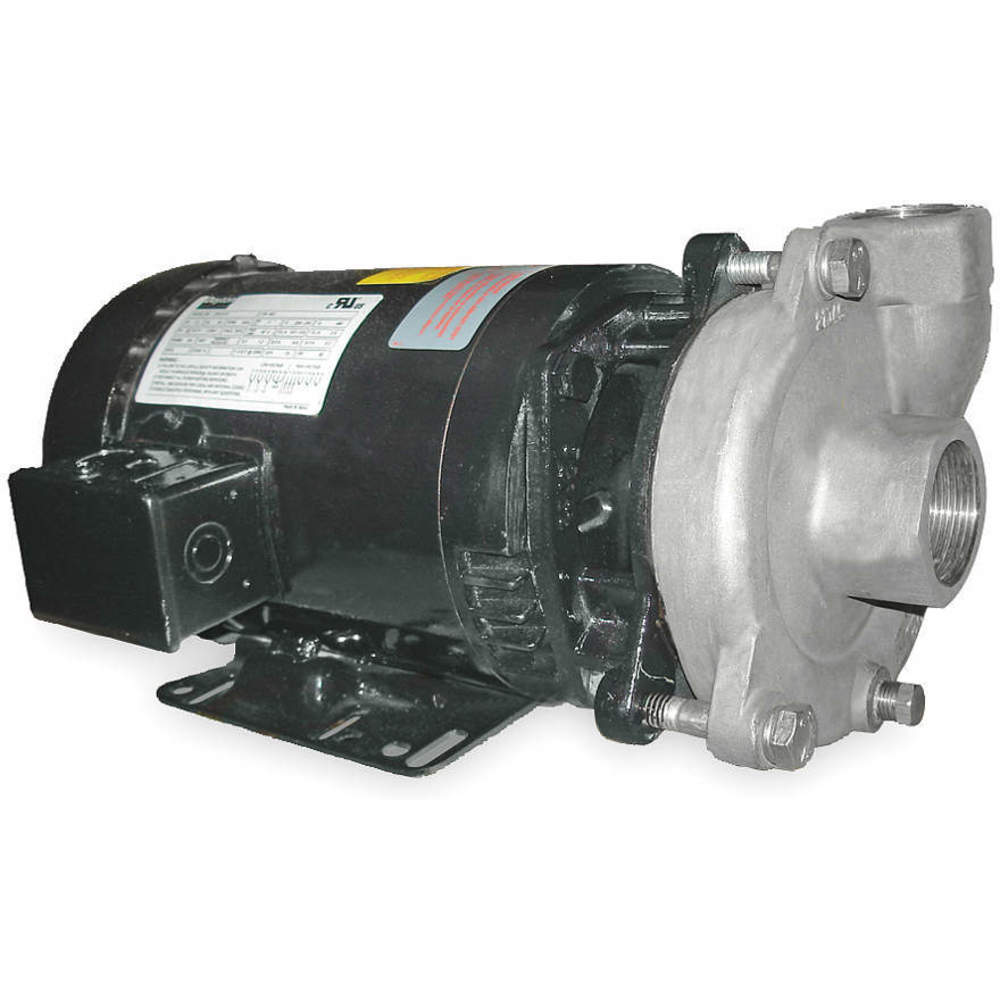

DAYTON 2ZWU9 Pump Centrifugal 2 Hp 3-phase 230/460v
Get it by Monday, Dec 22
10.00% off
€2,059.77 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Centrifugal Pump |
| Amps | 5.8/2.9A |
| Bearing Type | Ball |
| Best Efficiency Flow | 65 GPM |
| Best Efficiency Flow Range @ Head | 50 to 95 GPM @ 65 to 30 ft. |
| Best Efficiency Flow Rate @ Head | 70 GPM @ 52 ft. |
| Best Efficiency Head | 52 ft. |
| Compatible Discharge Pipe Size | 1 1/4" |
| Compatible Intake Pipe Size | 1 1/2" |
| Drain Plug | Side And Bottom |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Features | Continuous High Pressure Circulation |
| Feet Of Head (minimum) | 10 ft. |
| Flow Rate @ 1 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 10 Ft Of Head (maximum) | 122 GPM |
| Flow Rate @ 100 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 120 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 140 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 15 Ft Of Head (maximum) | 115 GPM |
| Flow Rate @ 160 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 180 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 20 Ft Of Head (maximum) | 109 GPM |
| Flow Rate @ 200 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 220 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 240 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 260 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 280 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 30 Ft Of Head (maximum) | 98 GPM |
| Flow Rate @ 300 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 40 Ft Of Head (maximum) | 84 GPM |
| Flow Rate @ 5 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 50 Ft Of Head (maximum) | 68 GPM |
| Flow Rate @ 60 Ft Of Head (maximum) | 46 GPM |
| Flow Rate @ 70 Ft Of Head (maximum) | 10 GPM |
| Flow Rate @ 80 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 90 Ft Of Head (maximum) | Not Applicable |
| For Media Type | Non-Flammable Liquids |
| For Use With Potable Systems | No |
| Frame | 56J |
| Grade | Grade 304 |
| Height | 7" |
| Housing Material | Stainless Steel |
| Hp | 2 hp |
| Hp - Pumps | 2 hp |
| Impeller Material | Stainless Steel |
| Impeller Type | Semi Open |
| Includes | Manual |
| Inlet Pressure | 200 psi |
| Length | 15 1/2" |
| Max. Case Pressure | 200 psi |
| Max. Feet Of Head | 72 ft. |
| Max. Flow Rate | 122 GPM |
| Max. Flow Rate @ 10 Ft. | 122 GPM |
| Max. Flow Rate @ 140 Ft. | 115 GPM |
| Max. Flow Rate @ 15 Ft. | 115 GPM |
| Max. Flow Rate @ 20 Ft. | 109 GPM |
| Max. Flow Rate @ 25 Ft. | 103 GPM |
| Max. Flow Rate @ 30 Ft. | 98 GPM |
| Max. Flow Rate @ 40 Ft. | 84 GPM |
| Max. Flow Rate @ 50 Ft. | 68 GPM |
| Max. Flow Rate @ 60 Ft. | 46 GPM |
| Max. Flow Rate @ 70 Ft. | 10 GPM |
| Max. Flow Rate @ Head | 122 GPM @ 10 ft. |
| Max. Head | 72 ft. |
| Max. Liquid Temp. | 200°F |
| Max. Operating Pressure | 31.2 psi |
| Max. Solid Dia. | 2/5" |
| Max. Specific Gravity | 1 |
| Media Type | Non Flammable Liquids |
| Min. Flow Rate | 10 GPM |
| Min. Flow Rate @ Head | 10 GPM @ 70 ft. |
| Min. Head | 10 ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Designation | 56J |
| Overall Height | 7" |
| Overall Length | 15 1/2" |
| Overall Width | 7 2/5" |
| Phase | 3 |
| Port Rotation | Four Position |
| Pump Housing Material | Stainless Steel |
| Rpm | 3450 RPM |
| Screw Material | Stainless Steel |
| Seal Application | Long Life When Not Run Dry Or Pumping Abrasives |
| Seal Material | Viton |
| Seal Type | Mechanical |
| Service Factor | 1.2 |
| Shaft Material | Stainless Steel |
| Shaft Size | 5/8" |
| Shut Off Pressure | 31 psi |
| Shut Off Pressure (maximum) | 31 psi |
| Solid Diameter (maximum) | 0.39" |
| Specific Gravity | 1 |
| Specific Gravity (maximum) | 1 |
| Type | Centrifugal |
| Voltage | 230/460V AC |
| Volute Material | Stainless Steel |
| Wetted Material | Carbon Ceramic, Stainless Steel, Viton |
| Wetted Materials | Carbon, Ceramic, Stainless Steel, Viton |
| Width | 7 2/5" |
Shipping Info:
| Ship weight (kg) | 22.93 |
| Ship height (cm) | 17.78 |
| Ship length (cm) | 39.37 |
| Ship width (cm) | 18.8 |
| HS code | 8413702005 |
| Country of Origin | IN |
Product Variants
| Product | Model | Voltage | Hp | Housing Material | Compatible Discharge Pipe Size | Motor Enclosure Design | Compatible Intake Pipe Size | Phase | Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
4BF1K1F0 | 230V AC | 7 1/2 hp | Cast Iron | 2 1/2" | Open Dripproof | 3" | 1 | NPT | €5,609.84 | |
|
4BF1J1H0 | 208-230V AC | 5 hp | Cast Iron | 2 1/2" | Open Dripproof | 3" | 1 | NPT | €4,765.24 | |
|
3BF1J1A0 | 230V AC | 5 hp | Cast Iron | 1 1/2" | Open Dripproof | 2" | 1 | NPT | €4,644.83 | |
|
3BF1H1AOH | 115/208-230V AC | 3 hp | Cast Iron | 1 1/2" | Open Dripproof | 2" | 1 | NPT | €3,819.30 | |
 |
2BF12034 | 208-230/460V AC | 2 hp | Cast Iron | 1 1/4" | - | 1 1/2" | 3 | NPT | €2,136.17 | |
|
2BF12012 | 115/230V AC | 2 hp | Cast Iron | 1 1/4" | Open Dripproof | 1 1/2" | 1 | NPT | €2,185.07 | |
 |
1BF22012 | 115/230V AC | 2 hp | Cast Iron | 1" | Totally Enclosed Fan Cooled | 1 1/4" | 1 | NPT | €2,458.66 |
