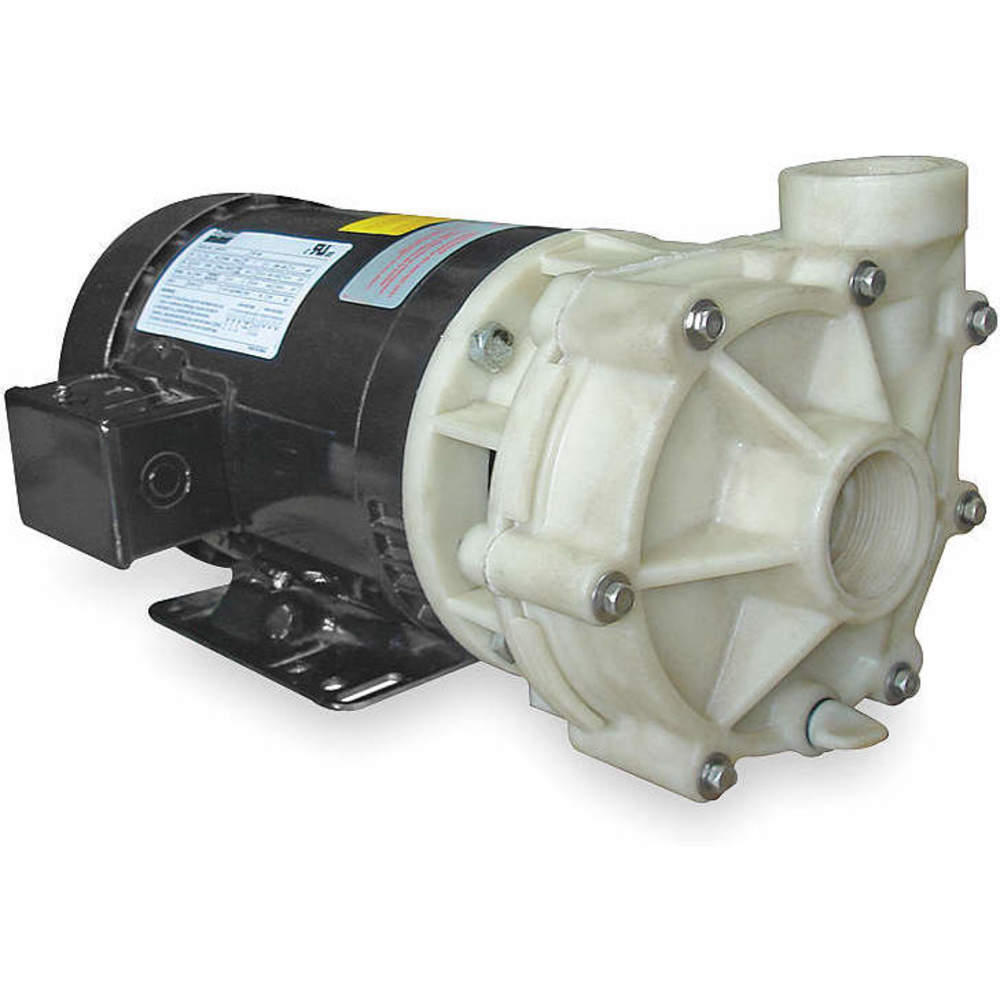

DAYTON 2YEU5 Centrifugal Pump 3 Hp 3-phase 208-230/460v
Get it by Tuesday, Dec 23
10.00% off
€1,776.40 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Centrifugal Pump |
| Amps | 7.2/3.6A |
| Application | Aggressive Liquid Applications, And Other General Purpose Pumping, Booster Service, Irrigation, Jockey Pump Service, Moderate Flow At Moderate Head Pressure, Spraying Systems, Transfer Of Non Flammable Liquids, Water Circulation |
| Bearing Type | Ball |
| Best Efficiency Flow | 80 GPM |
| Best Efficiency Flow Range @ Head | 48 to 106 GPM @ 80 to 30 ft. |
| Best Efficiency Flow Rate | 80 GPM |
| Best Efficiency Flow Rate @ Head | 85 GPM @ 60 ft. |
| Best Efficiency Head | 60 ft. |
| Compatible Motor Frame | 56J NEMA |
| Discharge Pipe Size | 1 1/2" |
| Discharge Pipe Type | NPT |
| Discharge Port Size | 1 1/2" |
| Discharge Port Type | NPT |
| Drain Plug | Yes |
| Duty Cycle | Continuous |
| Electrical Connection Type | Hardwired |
| Feet Of Head (maximum) | 95 ft. |
| Flow Rate @ 10 Ft. | 123 GPM |
| Flow Rate @ 20 Ft. | 115 GPM |
| Flow Rate @ 25 Ft. | 110 GPM |
| Flow Rate @ 30 Ft. | 106 GPM |
| Flow Rate @ 40 Ft. | 97 GPM |
| Flow Rate @ 50 Ft. | 86 GPM |
| Flow Rate @ 60 Ft. | 76 GPM |
| Flow Rate @ 70 Ft. | 63 GPM |
| Flow Rate @ 80 Ft. | 48 GPM |
| For Use With Potable Systems | No |
| Frame | 56J |
| Frequency | 60 Hz |
| Height | 7 1/2" |
| Horsepower (maximum) | 3 hp |
| Housing Material | Polypropylene |
| Hp | 3 hp |
| Impeller Design | Closed |
| Impeller Material | Polypropylene |
| Impeller Type | Closed |
| Includes | Manual |
| Inlet Size | 1 1/2" |
| Inlet Type | NPT |
| Intake Pipe Size | 1 1/2" |
| Intake Pipe Type | NPT |
| Length | 18 1/8" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 104°F |
| Max. Case Pressure | 100 psi |
| Max. Flow @ 10 Ft Of Head | 123 GPM |
| Max. Flow @ 20 Ft Of Head | 115 GPM |
| Max. Flow @ 25 Ft Of Head | 110 GPM |
| Max. Flow @ 30 Ft Of Head | 106 GPM |
| Max. Flow @ 40 Ft Of Head | 97 GPM |
| Max. Flow @ 60 Ft Of Head | 76 GPM |
| Max. Flow @ 70 Ft Of Head | 63 GPM |
| Max. Flow @ 80 Ft Of Head | 48 GPM |
| Max. Flow Rate | 123 GPM |
| Max. Flow Rate @ 15 Ft. | 119 GPM |
| Max. Head | 95 ft. |
| Max. Media Temp. | 140°F |
| Max. Solid Dia. | 1/4" |
| Max. Viscosity | 100 SUS |
| Min. Flow Rate | 48 GPM |
| Min. Flow Rate @ Head | 48 GPM @ 80 ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed (maximum) | 3450 RPM |
| Motor Type | Totally Enclosed Fan Cooled |
| Nameplate Voltage | 230/460V AC |
| Outlet Size | 1 1/2" |
| Outlet Type | NPT |
| Overall Height | 7 1/2" |
| Overall Length | 18.1" |
| Overall Width | 10" |
| Phase | 3 |
| Port Rotation | None |
| Priming | Manual |
| Screw Material | Stainless Steel |
| Seal Material | Buna N, Carbon Ceramic, Stainless Steel |
| Seal Type | Mechanical |
| Self Priming | Manual |
| Service Factor | 1.15 |
| Shaft Material | Stainless Steel |
| Shaft Outside Dia. | 5/8" |
| Shut Off Pressure (maximum) | 85 ft. |
| Specific Gravity | 1 |
| Specific Gravity (maximum) | 1 xg |
| Suction Port | 1 1/2" NPT |
| Type | Chemical Resistant |
| Volute Material | Polypropylene |
| Wetted Material | Buna N, Carbon Ceramic, Polypropylene, Stainless Steel |
| Width | 10" |
Shipping Info:
| Ship weight (kg) | 25.65 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 45.97 |
| Ship width (cm) | 25.4 |
| HS code | 8413702005 |
| Country of Origin | IN |
Product Variants
| Model | Hp | Housing Material | Nameplate Voltage | Max. Head | Outlet Size | Phase | Max. Flow Rate | Max. Flow Rate @ 15 Ft. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 2YER2 | 1/3 hp | Polypropylene | 115/230V AC | 62 ft. | 1 1/2" | 1 | 22 GPM | 20 GPM | €1,283.93 | |
| 2YER3 | 1/2 hp | Polypropylene | 115/230V AC | 68 ft. | 1 1/2" | 1 | 26 GPM | 24 GPM | €1,284.96 | |
| 2YER4 | 1/2 hp | Polypropylene | 208-230/460V AC | 68 ft. | 1 1/2" | 3 | 26 GPM | 24 GPM | €1,290.98 | |
| 2YER5 | 3/4 hp | Polypropylene | 115/230V AC | 72 ft. | 1 1/2" | 1 | 37 GPM | 35 GPM | €1,278.16 | |
| 2YER6 | 3/4 hp | Polypropylene | 208-230/460V AC | 72 ft. | 1 1/2" | 3 | 37 GPM | 35 GPM | €1,442.31 | |
| 2YER7 | 1 hp | Polypropylene | 115/230V AC | 79 ft. | 1 1/2" | 1 | 55 GPM | 54 GPM | €1,478.57 | |
| 2YER8 | 1 hp | Polypropylene | 208-230/460V AC | 79 ft. | 1 1/2" | 3 | 55 GPM | 54 GPM | €1,543.11 |
