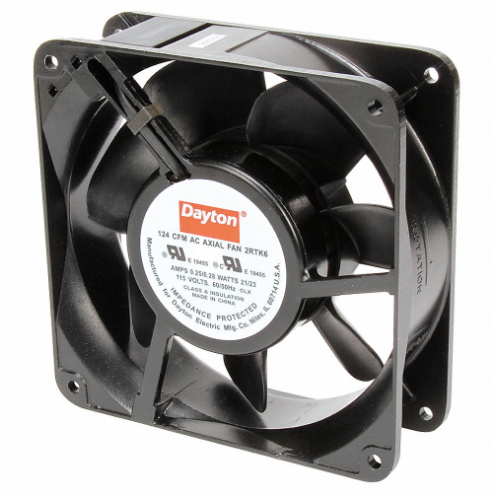

DAYTON 2RTK6 Axial Fan 115vac 4-11/16 Inch H 4-11/16 Inch Width
Item: AC3DLNModel: 2RTK6
7 In Stock
Ships within 2 days via
5.00% off
€56.65 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Axial Fan |
| Amps | 0.25/0.28A |
| Bearing Type | Ball |
| Blade Material | Polybutylene |
| Cfm @ 0.000 In Sp | 100/85 CFM |
| Color | Black |
| Depth | 1 1/2" |
| Electrical Connection | Terminal |
| Electrical Connection-fans | Terminals |
| Environmental Applications | Equipment Cooling |
| Fan Shape | Square |
| Fan Voltage | 115V AC |
| Frequency | 50/60 Hz |
| Height | 4 11/16" |
| Housing Material | Aluminum |
| Ip Rating | IP20 |
| Max. Ambient Temp. | 158°F |
| Motor Design | Shaded Pole |
| Motor Insulation | Class A |
| Motor Type | Shaded Pole |
| Mounting Eye O.c. | 4-1/8" |
| Mounting Eye O.c. | 4 1/8" |
| Mounting Position | Horizontal, Vertical |
| Phase | 1 |
| Requires | Cord Set (Not Included) |
| Shape | Square |
| Sound Level | 47 dB, 44 dB |
| Speed | 2750/2500 RPM |
| Thermal Protection | Impedance |
| Voltage | 115V AC |
| Watts | 21 W , 21/23 W |
| Width | 4 11/16" |
Shipping Info:
| Ship weight (kg) | 0.54 |
| Ship height (cm) | 14 |
| Ship length (cm) | 50.01 |
| Ship width (cm) | 27 |
| HS code | 8414596090 |
| Country of Origin | CN |
Product Details:
Dayton 2RTK6 axial fan is ideal for spot cooling computers, electronic equipment, cabinets and machine tool products in dry locations with limited space. It provides an easy field replacement to most axial fans. This standard square axial fan has ball bearings for operating optimally in all mounting positions.
Features:
- Dayton 2RTK6 axial fan has a square housing with mounting holes at each corner for easy wall or panel installation.
- This unit has a shaded pole motor with Class A insulation and produces 124 / 112 cfm airflow at 0.000-inch static pressure.
- It has impedance thermal protection for protecting the unit.
- This fan's housing is made of aluminium and the fan blades are made of polybutylene for corrosion resistance.
Compatible Accessories:
- Fan Guards: These fan or finger guards install over this fan to protect it from damage & prevent injuries.
- Cord Sets: A compatible cord set is attached to the terminal of this fan for powering the unit.
Standards and Approvals:
- RoHS
- UL
Frequently Asked Questions:
Q. What is the IP rating of this Dayton 2RTK6 axial fan?
A. This Dayton 2RTK6 axial fan is IP20 rated for restricting fingers or objects to enter inside.
Q. What is the power rating of this axial fan?
A. This Dayton 2RTK6 axial fan has a power rating of 21 / 23 Watts and requires a power supply of 115VAC.
Q. What are the safety points for operating this axial fan?
A.
- The fan must be securely grounded and the connected power source must conform to the requirement.
- Lock and tag the power disconnect to prevent accidental power applications. Do not kink the cable or allow the cable to come in contact with hot surfaces, oil, grease or chemicals.
- Guard all moving parts and protect the cable from sharp objects.
Q. What is the maximum temperature that this axial fan can handle?
A. This Dayton 2RTK6 axial fan can withstand a maximum temperature of 158 degrees F.
Product Variants
| Product | Model | Voltage | Height | Depth | Housing Material | Electrical Connection | Bearing Type | Mounting Position | Mounting Eye O.c. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2RTD1 | 115V AC | 4 11/16" | 1 1/2" | Aluminum | Terminal | Sleeve | Horizontal | 4 1/8" | €82.18 | |
 |
2RTD3 | 230V AC | 4 3/4" | 1 1/2" | Aluminum | Terminal | Sleeve | Horizontal | 4 1/8" | - | RFQ
|
 |
2RTD9 | 230V AC | 4 11/16" | 1 1/2" | Aluminum | Terminal | Sleeve | Horizontal | 4 1/8" | €53.45 | |
 |
2RTE1 | 230V AC | 4 11/16" | 1 1/2" | Aluminum | Terminal | Ball | Horizontal, Vertical | 4 1/8" | €84.14 | |
 |
2RTE4 | 115V AC | 2 3/8" | 1" | PBT Plastic | - | Zero Friction Air | Horizontal, Vertical | 1 15/16" | €40.89 | |
 |
2RTE8 | 115V AC | 3 1/8" | 1" | PBT Plastic | - | Zero Friction Air | Horizontal, Vertical | 2 13/16" | €54.76 | |
 |
2RTF9 | 12V DC | 2 3/8" | 1" | PBT Plastic | - | Zero Friction Air | Horizontal, Vertical | 1 15/16" | €33.65 |
