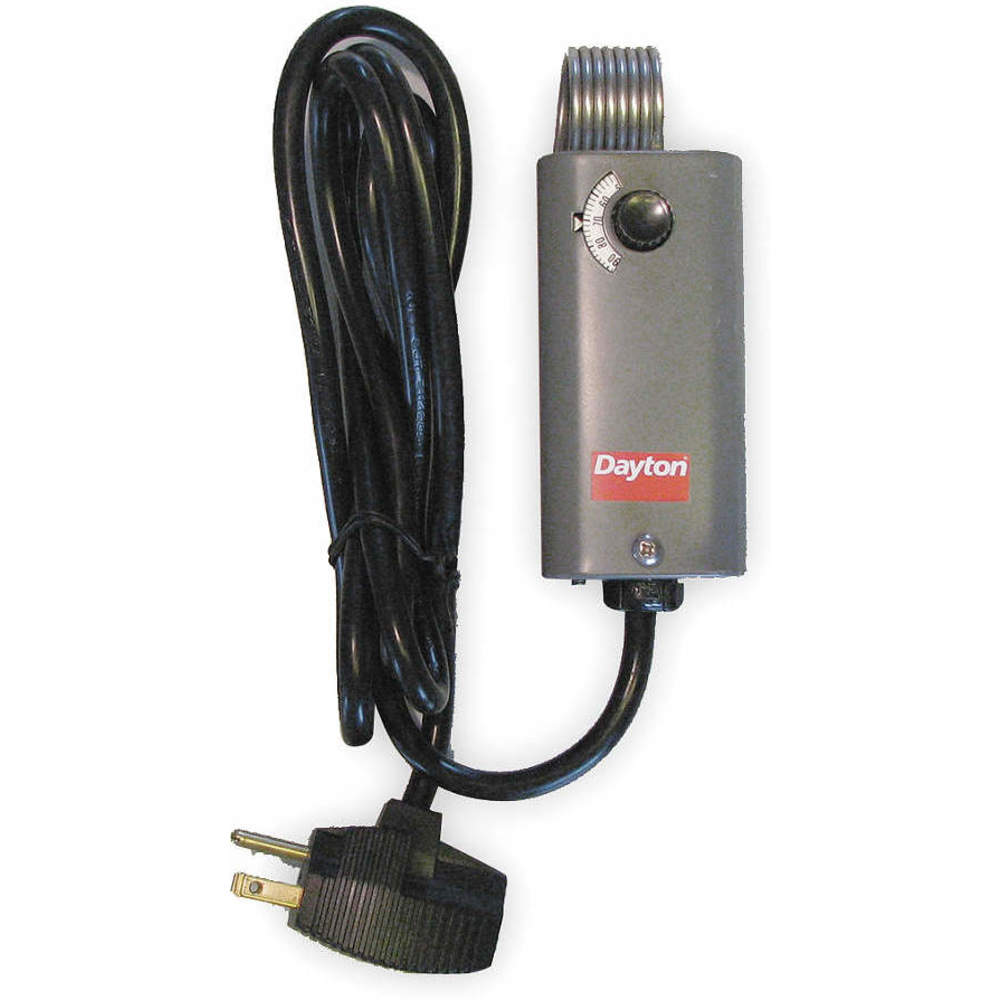

DAYTON 2NNR8 Line Voltage T-stat 35 To 95 F Spst
Item: AC2WNMModel: 2NNR8
7 In Stock
Ships within 2 days via
10.00% off
€172.06 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Line Volt Mechanical Tstat |
| Application | Heat Only |
| Battery Backup | No |
| Capillary Length | 60" |
| Color | Gray |
| Compatible System Type | Portable Heating Equipment |
| Contact Rating | 120V AC |
| Contact Rating Resistive @ 120v | 15A |
| Contact Rating Resistive @ 240v | 22A |
| Contact Type | Snap Action |
| Control Type | Mechanical Selector Dial |
| Cooling Full Load @ 120v | 16A |
| Cooling Full Load @ 240v | 8A |
| Cooling Locked Rotor @ 120v | 96A |
| Cooling Locked Rotor @ 240v | 48A |
| Depth | 2 1/8" |
| Display Type | Analog |
| Dual Transformer Compatible | No |
| Electrical Connection Type | Corded |
| Enclosure Color | Gray |
| Enclosure Finish | Powder Coated |
| Enclosure Material | Steel |
| Enclosure Nema Rating | NEMA 1 |
| Enclosure Type | Steel |
| Features | Extended Cord With A Piggyback Plug |
| For Use With | Portable Heating Equipment |
| Full Load Amps @ 120v | 16A |
| Height | 4 1/2" |
| Housing Color | Gray |
| Housing Material | Steel |
| Housing Type | Standard Housing |
| Includes | 6 ft. Cord With Piggyback Plug, Wire Hanger |
| Includes Batteries | No |
| Inductive Amps @ 120v | 12A |
| Inductive Amps @ 120v | 16A |
| Inductive Amps @ 208v | 9.2A |
| Inductive Amps @ 240v | 8A |
| Input Voltage | 120V AC |
| Key Pad Lockout | No |
| Locked Rotor Amps @ 120v | 72A |
| Maximum Control Temperature | 95°F |
| Maximum Operating Temperature | 110°F |
| Minimum Control Temperature | 35°F |
| Number Of Stages | 1 |
| Number Of Switches | 1 |
| Overall Depth | 2 1/4" |
| Overall Height | 5 3/4" |
| Overall Length | 5 3/4" |
| Overall Width | 2 1/4" |
| Pilot Duty Contacts | 125 VA |
| Pilot Duty Contacts (va) | 125VA |
| Programming Capability | Not Programmable |
| Resistive Amps @ 120v | 15A |
| Resistive Amps @ 208v Ac | 22A |
| Resistive Amps @ 208vac | 22A |
| Sensing Bulb Dia. | 3/16" |
| Sensing Bulb Dia. | 0.188" |
| Sensor Type | Hydraulic Air Coil |
| Smart Connectivity | No Connectivity |
| Switch Action | Open On Rise |
| Switch Type | SPST |
| Temp. Sensitivity | 3 Degrees |
| Temp. Sensitivity | 3°F |
| Temperature Differential | 3°F |
| Temperature Limiting | No |
| Temperature Scale | Fahrenheit |
| Temperature Sensitivity | -3°F to +3°F |
| Temperature Settings Per Day | Manual Adjust |
| Temporary Program Override | No |
| Temporary Temperature Hold | No |
| Thermostat Type | Portable Heating |
| Thread Npt | 1/2" Knockout |
| Voltage | 120V AC |
| Voltage Range | 120V AC |
| Width | 2 1/8" |
Shipping Info:
| Ship weight (kg) | 0.74 |
| Ship height (cm) | 14.61 |
| Ship length (cm) | 5.72 |
| Ship width (cm) | 5.72 |
| HS code | 9032100060 |
| Country of Origin | CN |
Product Details:
- Inductive Amps @ 208V (9.2A)
Product Variants
| Product | Model | Compatible System Type | Application | Switch Type | Switch Action | Number Of Heating Stages | Height | Depth | Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1UHH1 | Fan Coil Units | Heat Or Cool | SPDT | Open/Close On Rise | 1 | 5 3/4" | 2 1/2" | White | €226.74 | |
 |
1UHH2 | Fan Coil Units | Heat Or Cool | SPDT | Open/Close On Rise | 1 | 5 3/4" | 2 1/4" | Gray | €218.76 | |
|
1UHH4 | Fan Coil Units | Cool Only | SPST | Close On Rise | - | 5 3/4" | 2 1/4" | Gray | €158.20 | |
 |
2E815 | Gas Or Forced Air Furnaces | Heat Only | SPST | Open On Rise | 1 | 5 1/2" | 2.63" | Gray | €78.37 | |
 |
2NNR5 | Attic Fans, Fan Coil Units | Cool Only | SPST | Close On Rise | - | 4 1/2" | 2 1/2" | Gray | €105.49 | |
 |
2NNR6 | Attic Fans, Fan Coil Units | Heat And Cool | SPDT | Open/Close On Rise | 1 | 4 1/2" | 2 1/2" | Beige | €138.73 | |
|
2NNR7 | Attic Fans, Fan Coil Units | Heat And Cool | SPDT | Open/Close On Rise | 1 | 4 1/2" | 2 1/8" | Gray | €451.58 |
