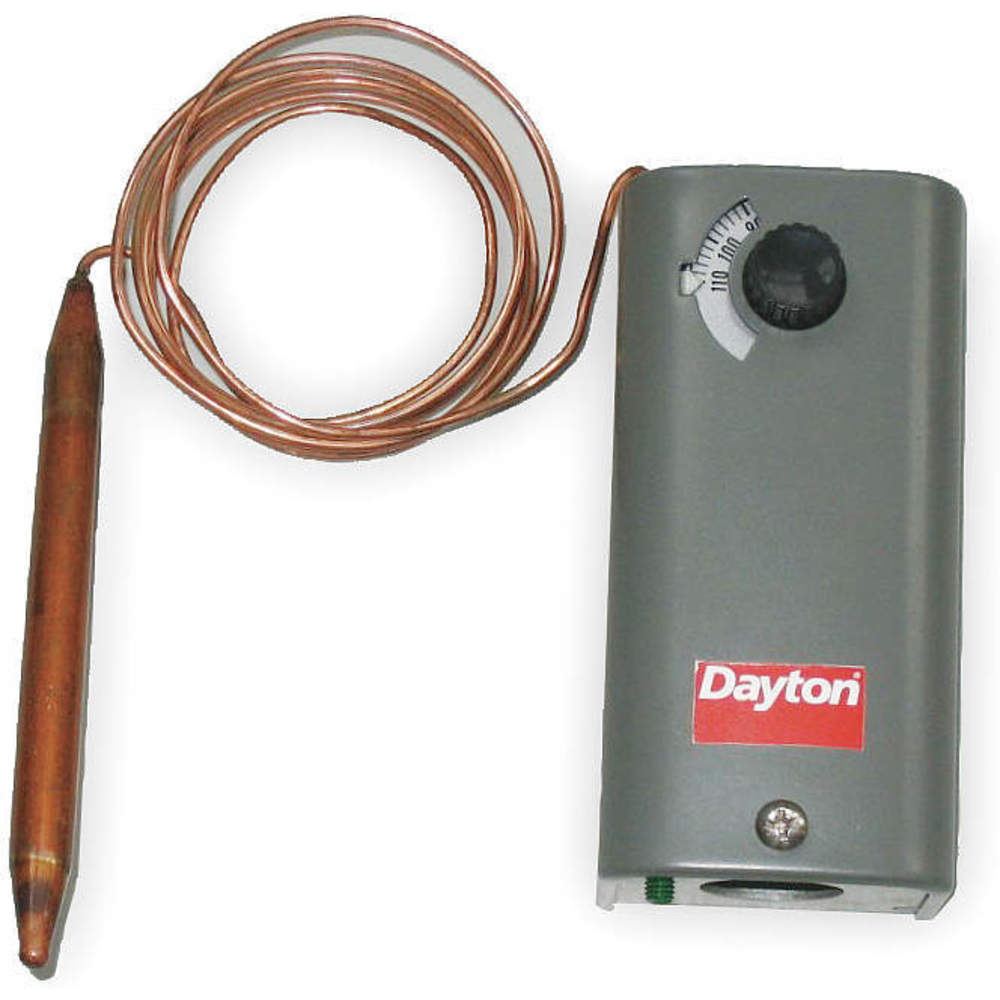

DAYTON 2NNR5 Line Voltage T-stat -30 To 90 F Spst
Item: AC2WNJModel: 2NNR5
7 In Stock
Ships within 2 days via
10.00% off
€94.94 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Line Volt Mechanical Tstat |
| Application | Cool Only |
| Bulb Dia. | 1/4" |
| Bulb Length | 5" |
| Capillary Length | 60" |
| Changeover Type | Automatic |
| Color | Gray |
| Compatible System Type | Attic Fans, Fan Coil Units |
| Contact Rating | 120/240/277V AC |
| Contact Rating Resistive @ 120v | 15A |
| Contact Rating Resistive @ 120v | 22A |
| Contact Rating Resistive @ 240v | 22A |
| Contact Rating Resistive @ 277v | 22A |
| Contact Type | Snap Action |
| Control Type | Exposed Dial |
| Cooling Full Load @ 120v | 16A |
| Cooling Full Load @ 240v | 8A |
| Cooling Locked Rotor @ 120v | 96A |
| Cooling Locked Rotor @ 240v | 48A |
| Dehumidification Control | No |
| Depth | 2 1/2" |
| Differential | 3.5°F |
| Differential Type | Fixed |
| Electrical Connection Type | Hardwired |
| Enclosure Color | Gray |
| Enclosure Finish | Chrome |
| Enclosure Material | Steel |
| Enclosure Nema Rating | 1 |
| Enclosure Type | Steel |
| Frequency | 50/60 Hz |
| Full Load Amps @ 120v | 16A |
| Full Load Amps @ 240v Ac | 8A |
| Full Load Amps @ 240vac | 8A |
| Height | 4 1/2" |
| Includes | Mounting Hardware |
| Inductive Amps @ 120v | 16A |
| Inductive Amps @ 208v | 9.2A |
| Inductive Amps @ 240v | 8A |
| Locked Rotor Amps @ 120v | 96A |
| Locked Rotor Amps @ 240v | 48A |
| Maximum Control Temperature | 90°F |
| Maximum Operating Temperature | 110°F |
| Minimum Control Temperature | -30°F |
| Minimum Operating Temperature | -30°F |
| Mounting Direction | Vertical |
| Mounting Type | Surface Mount |
| Number Of Cooling Stages | 1 |
| Number Of Heating Stages | 0 |
| Number Of Poles | 1 |
| Number Of Stages | 1 |
| Number Of Switches | 1 |
| Operating Temperature Range | -30°F to +110°F |
| Overall Depth | 2 1/4" |
| Overall Height | 5 3/4" |
| Overall Length | 4 1/2" |
| Overall Width | 2 1/4" |
| Pilot Duty Contacts | 125 VA |
| Pilot Duty Contacts (va) | 125VA |
| Pilot Duty Rating | 125 VA @ 24 to 600V AC |
| Remote Sensing Bulb Included | Yes |
| Remote Sensing Capability | Yes |
| Resistive Amps @ 208v Ac | 22A |
| Resistive Amps @ 208vac | 22A |
| Sensing Bulb Dia. | 3/16" |
| Sensing Bulb Length | 5" |
| Sensor Location | Remote |
| Sensor Type | Hydraulic Capillary Bulb Copper |
| Shape | Rectangle |
| Switch Action | Close On Rise |
| Switch Type | SPST |
| Temp. Sensitivity | 3° |
| Temp. Sensitivity | 3 Degrees |
| Temperature Differential | 3°F |
| Temperature Limiting | No |
| Temperature Scale | Fahrenheit |
| Temperature Sensitivity | -3°F to +3°F |
| Thermostat Heating/cooling | Cooling |
| Thermostat Programmable | No |
| Thermostat Type | Indoor Single Stage Controls |
| Thread Npt | 1/2" Knockout |
| Voltage | 120/240V/277V AC |
| Voltage Range | 24-600V AC |
| Width | 2 1/2" |
Shipping Info:
| Ship weight (kg) | 0.41 |
| Ship height (cm) | 14.61 |
| Ship length (cm) | 5.72 |
| Ship width (cm) | 5.72 |
| HS code | 9032100060 |
| Country of Origin | CN |
Product Details:
- Inductive Amps @ 208V (9.2A)
Product Variants
| Product | Model | Compatible System Type | Application | Switch Type | Switch Action | Number Of Heating Stages | Height | Depth | Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1UHH1 | Fan Coil Units | Heat Or Cool | SPDT | Open/Close On Rise | 1 | 5 3/4" | 2 1/2" | White | €226.74 | |
 |
1UHH2 | Fan Coil Units | Heat Or Cool | SPDT | Open/Close On Rise | 1 | 5 3/4" | 2 1/4" | Gray | €218.76 | |
|
1UHH4 | Fan Coil Units | Cool Only | SPST | Close On Rise | - | 5 3/4" | 2 1/4" | Gray | €158.20 | |
 |
2E815 | Gas Or Forced Air Furnaces | Heat Only | SPST | Open On Rise | 1 | 5 1/2" | 2.63" | Gray | €78.37 | |
 |

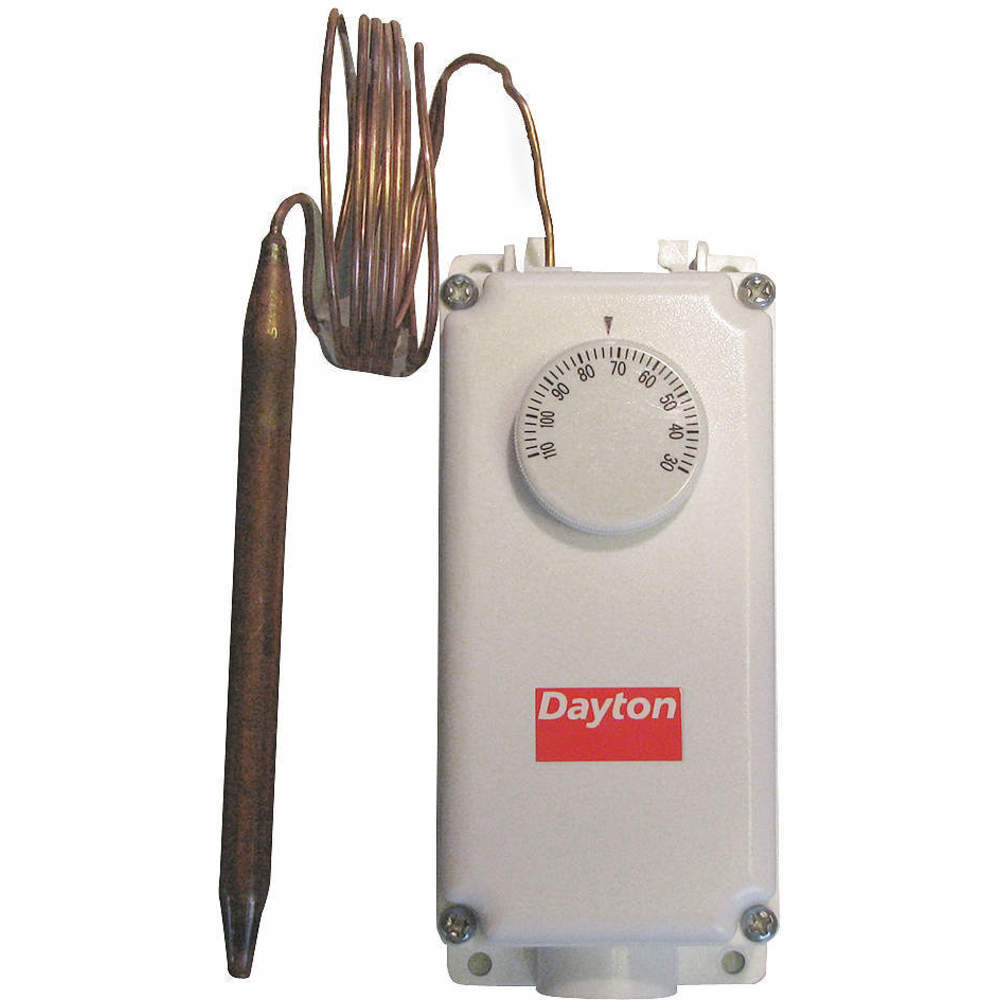

2NNR6 | Attic Fans, Fan Coil Units | Heat And Cool | SPDT | Open/Close On Rise | 1 | 4 1/2" | 2 1/2" | Beige | €138.73 | |
|
2NNR7 | Attic Fans, Fan Coil Units | Heat And Cool | SPDT | Open/Close On Rise | 1 | 4 1/2" | 2 1/8" | Gray | €451.58 | |
 |
2NNR8 | Portable Heating Equipment | Heat Only | SPST | Open On Rise | - | 4 1/2" | 2 1/8" | Gray | €191.18 |
