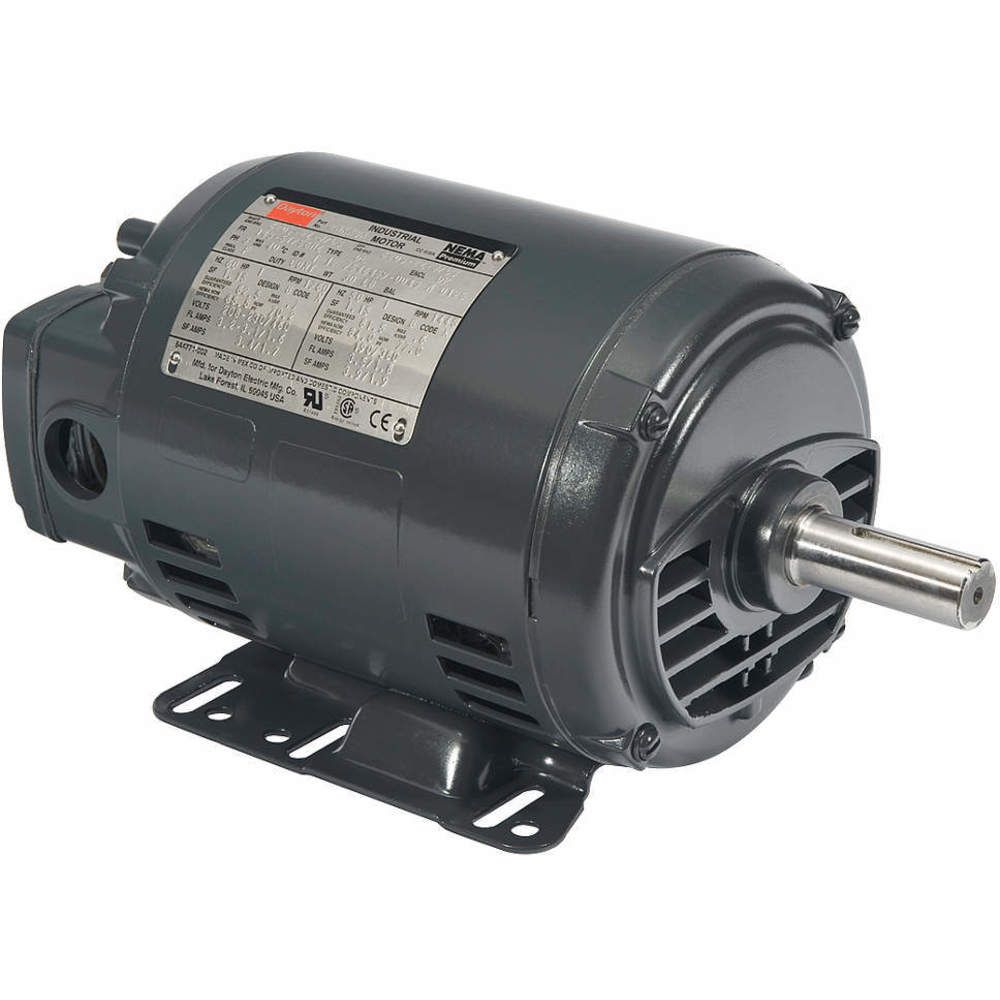

DAYTON 2NKX9 General Purpose Motor 3-phase Odp 2 Hp 3490rpm 143-5t/56hz
Get it by Monday, Dec 22
10.00% off
€727.60 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 104°F |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Cc Number | CC003A |
| Duty Cycle | Continuous |
| Efficiency | 85.5% |
| Efficiency Group | Premium |
| Frame | 143-5T/56HZ |
| Frame Material | Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 5/2.5A |
| Green Certification Or Other Recognition | NEMA Premium Rated |
| Hp | 2 hp |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Length Less Shaft | 10 1/2" |
| Manufacturers Warranty Length | 3 yrs. |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3 Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3515 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 85.5% |
| Overall Length | 12 13/16" |
| Phase | 3 |
| Rpm Range | Over 3600 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Standards | Csa, Ul |
| Thermal Protection | None |
| Voltage | 230/460V AC |
| Warranty | 3 yrs. |
Shipping Info:
| Ship weight (kg) | 20.03 |
| Ship height (cm) | 28.45 |
| Ship length (cm) | 48.77 |
| Ship width (cm) | 28.96 |
| HS code | 8501524000 |
| Country of Origin | MX |
Product Variants
| Product | Model | Frequency | Full Load Amps | Service Factor | Nameplate Rpm | Phase | Motor Type | Hp | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
11W342 | 60 Hz | 8.3/4.2A | 1.15 | 1750 RPM | 3 | Three Phase | 3 hp | Face | €693.46 | |
 |
01518OT3H254TC | 60 Hz | 14.9A | 1.15 | 1775 RPM | 3 | Three Phase | 15 hp | Rigid Base | €1,909.02 | |
 |
02018OT3E256TC-W40 | 60 Hz | 48.2/24.1A | 1.25 | 1765 RPM | 3 | Three Phase | 20 hp | Rigid Base | €2,318.06 | |
|
02018OT3H256TC | 60 Hz | 19.8A | 1.15 | 1770 RPM | 3 | Three Phase | 20 hp | Rigid Base | €2,237.16 | |
|
02518OT3E284TC-W40 | 60 Hz | 59/29.5A | 1.25 | 1770 RPM | 3 | Three Phase | 25 hp | Rigid Base | €2,987.15 | |
|
02518OT3H284TC | 60 Hz | 23.9A | 1.15 | 1770 RPM | 3 | Three Phase | 25 hp | Rigid Base | €3,659.77 | |
|
03018OT3E286TC-W40 | 60 Hz | 69.8/34.9A | 1.25 | - | 3 | - | - | - | €3,468.72 |
