DAYTON 2M033 Universal AC/DC Motor 1/15Hp 5000 Rpm 115V
Item: AC2QLKModel: 2M033
4 In Stock
Ships within 2 days via
10.00% off
€126.03 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Universal AC/DC Motor |
| Average Brush Life | 300 hrs. |
| Bearing Type | Sleeve |
| Body Dia. | 2 3/4" |
| Finish | Unfinished |
| Frequency | 60 Hz |
| Full Load Amps | 1.2A |
| Hp | 1/15 hp |
| Insulation Class | Class A |
| Length | 5 3/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Universal AC/DC Motor |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Hole |
| Motor Shaft Rotation | Counter Clockwise Shaft End |
| Motor Type | Standard |
| Mount Hole Size | #10-32 |
| Mounting Hole Size | #10-32 |
| Mounting Type | Hole |
| Nameplate Rpm | 5000 RPM |
| No. Of Mounting Holes | 2 |
| No. Of Shafts | 1 |
| No. Of Speeds | 1 |
| Number Of Mounting Holes | 2 |
| O.c Mounting | 2 3/16" |
| O.c. Mounting | 2.188" |
| Overall Length | 5.187" |
| Phase | 1 |
| Service Factor | 1 |
| Shaft Dia. | 1/4" |
| Shaft Length | 3/4" |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
Shipping Info:
| Ship weight (kg) | 0.97 |
| Ship height (cm) | 9.65 |
| Ship length (cm) | 17.27 |
| Ship width (cm) | 8.89 |
| HS code | 8501202000 |
| Country of Origin | US |
Product Variants
| Product | Model | Hp | Nameplate Rpm | O.c Mounting | Motor Mounting Type | Motor Enclosure Design | Motor Shaft Rotation | Full Load Amps | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

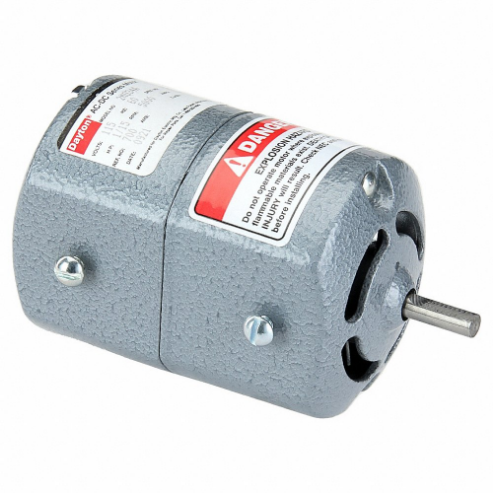

2M034 | 1/15 hp | 5000 RPM | 2 3/16" | Hole | Open | Clockwise Shaft End | 1.2A | Hole | €148.70 | |
|
2M037 | 1/10 hp | 8000 RPM | 2 3/16" | Hole | Open | Counter Clockwise Shaft End | 1.5A | Hole | €196.02 | |
 |

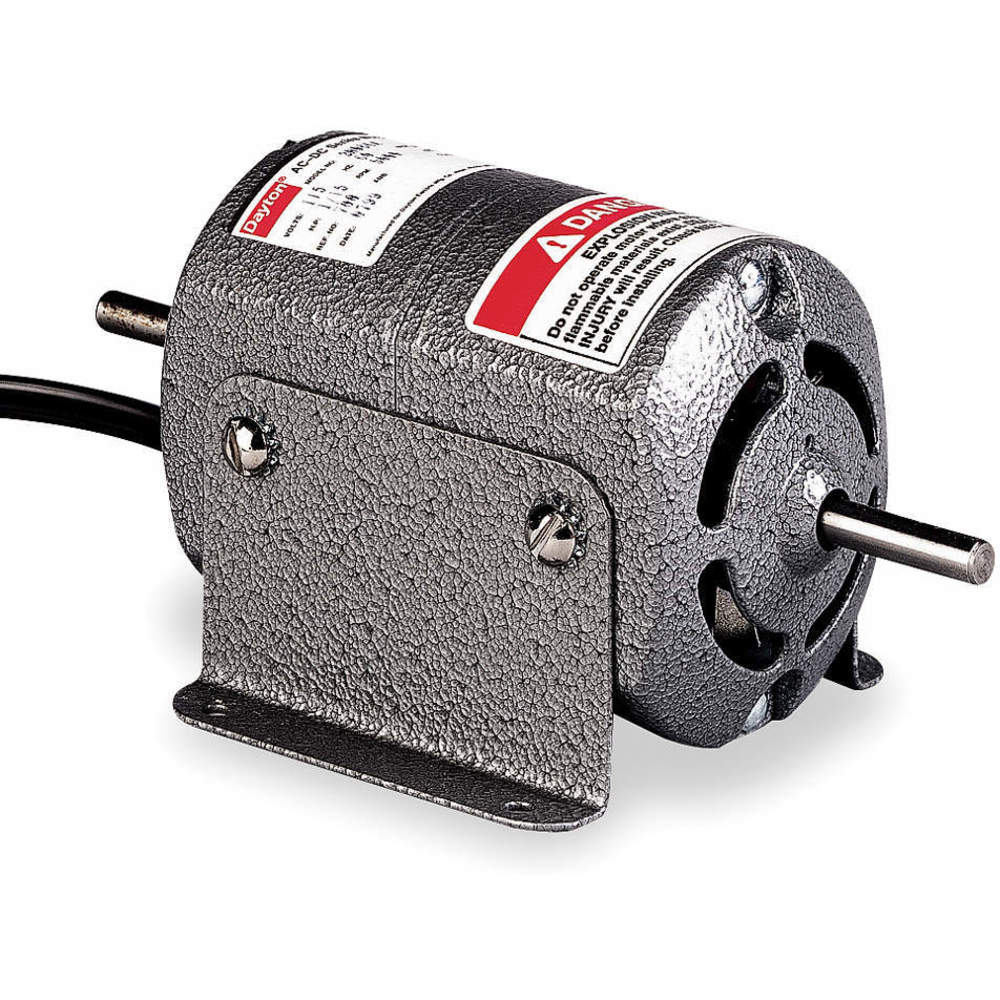

2M066 | 1/15 hp | 5000 RPM | 2 3/16" x 3" | Rigid Base | Open | Counter Clockwise Shaft End | 1.2A | Rigid Base | €176.94 | |
|
2M277 | 1/15 hp | 5000 RPM | 2 3/16" | Hole | Open | Counter Clockwise Shaft End | 1.2A | Hole | €173.18 |
