DAYTON 2LY96 Air Circulator 20 Inch 3700 Cfm 115v
Get it by Wednesday, Dec 24
10.00% off
€328.00 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Air Circulator |
| Air Velocity (fpm) @ 10 Ft. | 800/550 |
| Air Velocity (fpm) @ 20 Ft. | 400/350 |
| Air Velocity (fpm) @ 40 Ft | 200/190 FPM |
| Air Velocity (fpm) @ 40 Ft | 200/190 |
| Air Velocity (fpm) @ 60 Ft. | 150/130 |
| Air Velocity (fpm) @ 60 Ft. | 150/130 FPM |
| Air Velocity @ 10 Ft. | 800/550 FPM |
| Air Velocity @ 20 Ft. | 400/350 FPM |
| Assembled | No |
| Base Dia. | 27" |
| Bearing Type | Ball |
| Blade Dia. | 20" |
| Blade Material | Steel |
| Cfm Low | 2600 |
| Cfm/watt | 15.1/15.0 |
| Color | Black |
| Cord Length | 9 ft. |
| Depth | 27" |
| Drive Type | Direct |
| Environmental Applications | Industrial |
| Fan Accessory Style | Standard |
| Fan Cord Length | 9 ft. |
| Fan Speed | 1100/1300 RPM |
| Fan Style | Standard |
| Finish | Powder Coat |
| Guard Material | Steel |
| Housing Material | Steel |
| Max. Ambient Temp. | 105°F |
| Max. Depth | 26" |
| Mobile/stationary | Stationary |
| Motor Enclosure Design | Open Air Over |
| Motor Hp | 1/8 hp |
| Motor Insulation | Class B |
| Motor Insulation Class | Class A |
| Motor Speed | 1300/1100 RPM |
| Motor Type | Permanent Split Capacitor |
| Mounting Location | Pedestal |
| Mounting Style | Pedestal |
| No. Of Conductors | 3 |
| Number Of Blades | 3 |
| Number Of Speeds | 2 |
| Oscillating | No |
| Oscillating/non-oscillating | Non Oscillating |
| Outside Dia. | 23" |
| Phase | 1 |
| Shaft Dia. | 12 mm |
| Sound Level | 72 dBA |
| Thermal Protection | Automatic |
| Wattage | 245/173 W |
| Width | 26" |
| Wire Guard Finish | Gloss Powder Coated |
Shipping Info:
| Ship weight (kg) | 33.75 |
| Ship height (cm) | 93.73 |
| Ship length (cm) | 69.34 |
| Ship width (cm) | 24.89 |
| HS code | 8414596090 |
| Country of Origin | CN |
Product Details:
- Mobile/Stationary (Stationary)
Product Variants
| Product | Model | Blade Dia. | Phase | Number Of Speeds | Oscillating/non-oscillating | Motor Hp | Voltage | Sound Level | Assembled | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

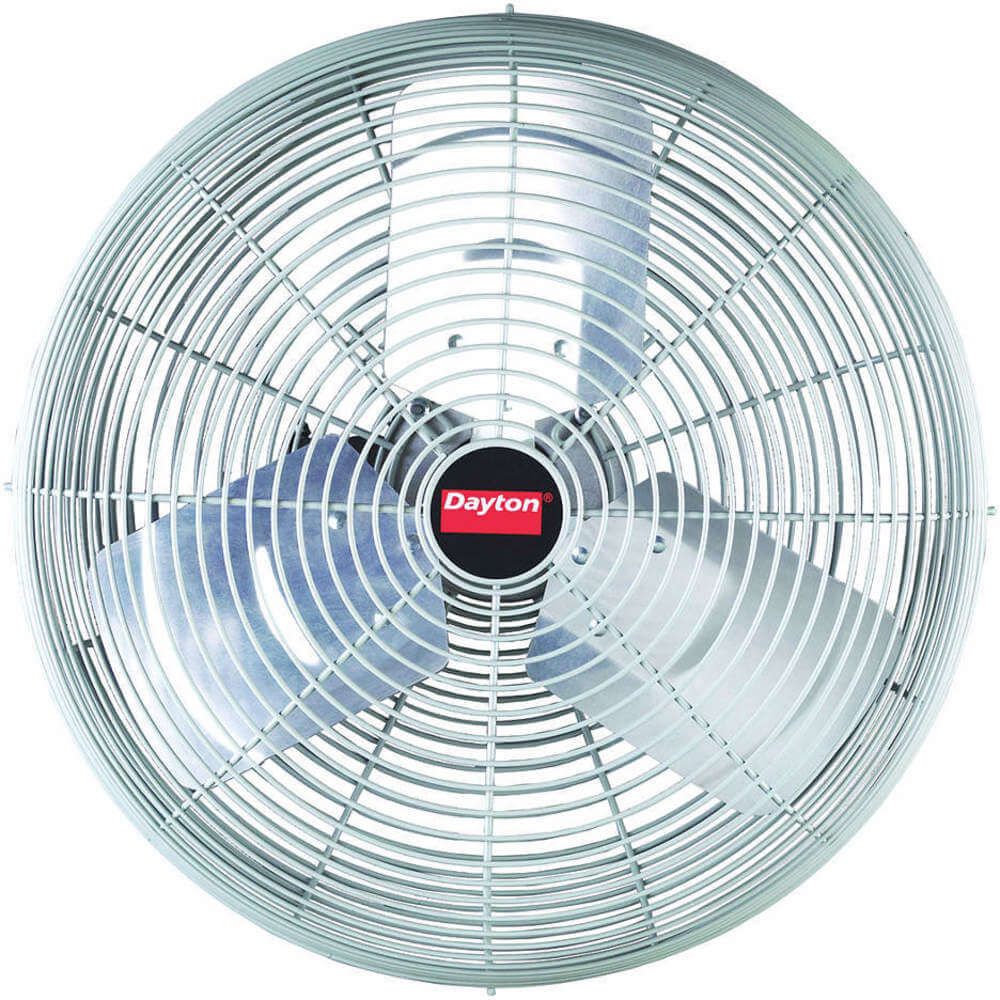

13F045 | 18" | 1 | 2 | Non Oscillating | 1/4 hp | 115V AC | 72 dBA | Yes | €393.74 | |
 |

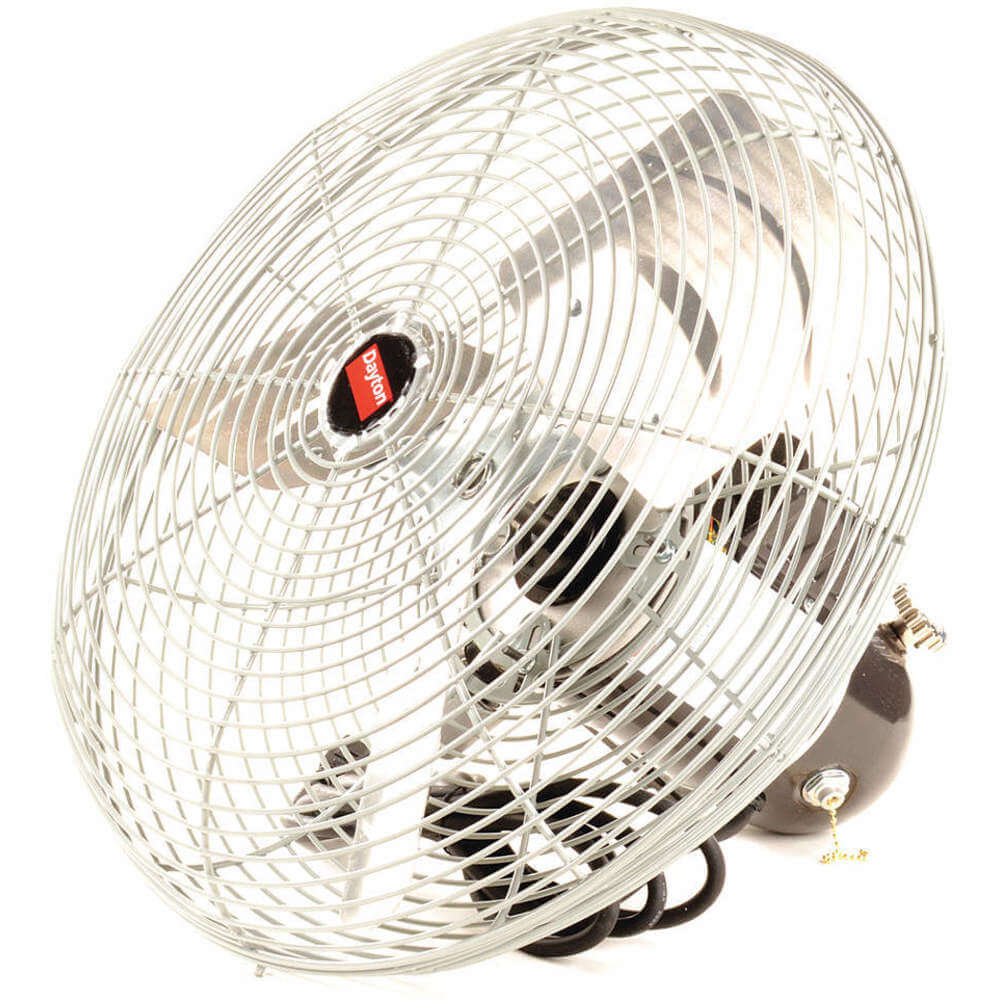

13F047 | 18" | 1 | 2 | Oscillating | 1/4 hp | 115V AC | 72 dBA | Yes | €472.27 | |
 |

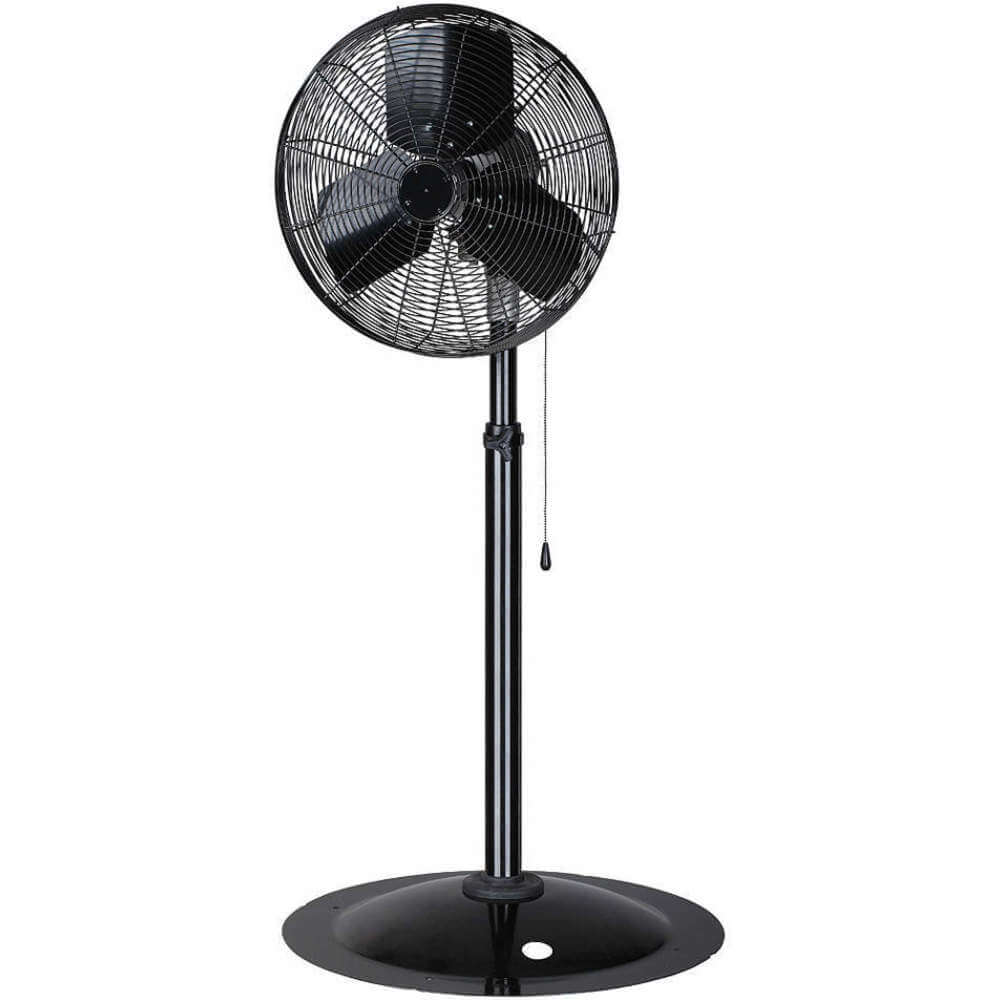

13V398 | 18" | 1 | 2 | Oscillating | 1/5 hp | 120V AC | 70 dBA, 66 dBA | No | €371.05 | |
|
13V399 | 20" | 1 | 2 | Oscillating | 1/5 hp | 120V AC | 68 dBA, 65 dBA | No | €364.52 | |
 |
13V401 | 18" | 1 | 2 | Oscillating | 1/5 hp | - | 70 dBA, 66 dBA | No | €351.64 | |
|
13V402 | 20" | 1 | 2 | Oscillating | 1/5 hp | 120V AC | 68 dBA, 65 dBA | No | €408.45 | |
 |

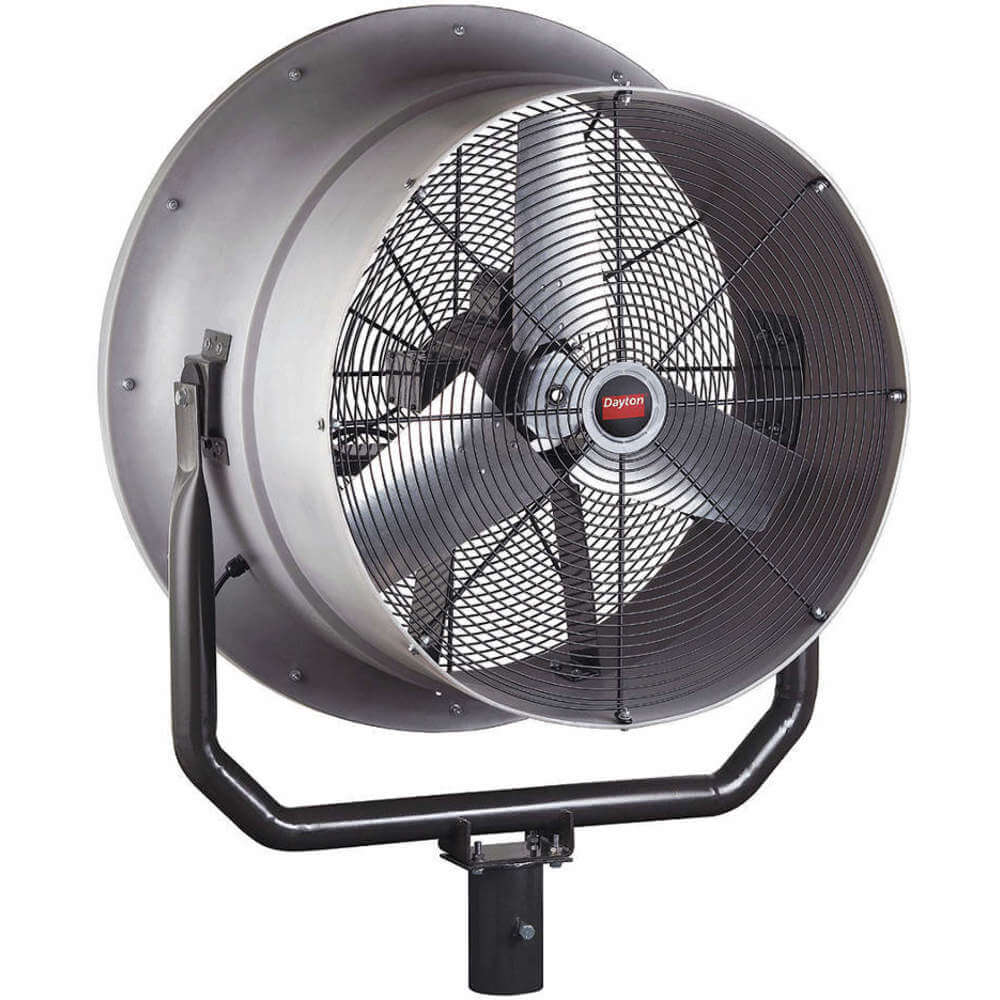

1LXN4 | 30" | 1 | 1 | Non Oscillating | 1 hp | 115V AC | 92 dBA | Yes | €2,175.97 |
