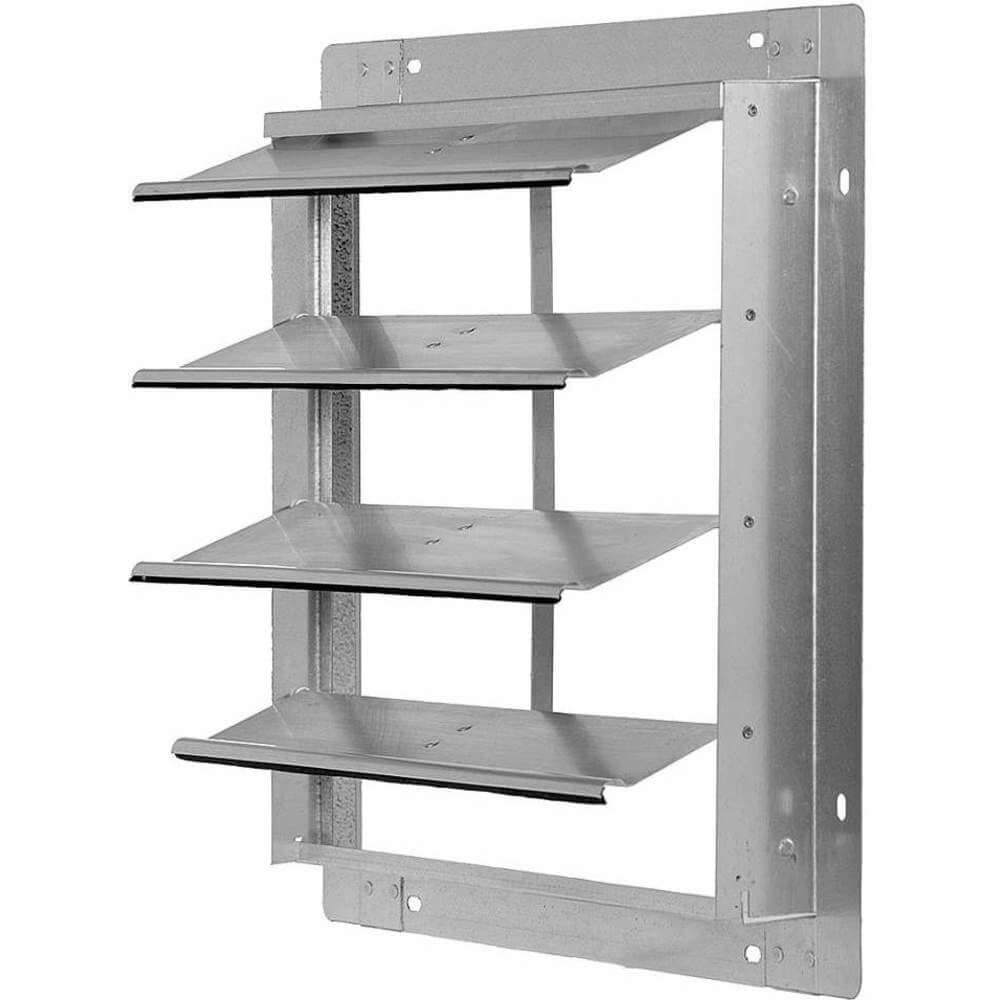

DAYTON 2C518 Fan Shutter 12in
Item: AB9CYMModel: 2C518
7 In Stock
Ships within 2 days via
5.00% off
€67.16 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Backdraft Damper/Wall Shutter |
| Action | Single Acting |
| Airflow Direction | Horizontal |
| Blade Material | Aluminum |
| Blade Material Thickness | 26 ga. |
| Blade Orientation | Parallel Blades |
| Blade Seal Material | Felt |
| Blade Type | Flat Blade |
| Bushing Material | Nylon, Stainless Steel |
| Closure Type | Gravity |
| Closure Velocity Rating | 2000 FPM |
| Connection Type | Not Applicable |
| Counterbalanced | No |
| Damper Application | Backdraft |
| Damper Finish | Mill Finish |
| Damper Type | Static |
| Fits Fan Dia. | 12" |
| Fits Fan Dia. (in.) | 12 |
| Flange Type | Rear Flange |
| Flange Width | 1 1/2" |
| For Duct Shape | Not Applicable |
| For Fuel Type | Not Applicable |
| For Use With | Vertical Mounted Exhaust Fans |
| Frame Depth | 2 1/4" |
| Frame Less Flange | 12 |
| Frame Material | Galvanized Steel |
| Frame Material Thickness | 20 ga. |
| Frame Opening A | 12" |
| Frame Opening B | 12" |
| Free Area | 0.8 sq. ft. |
| Included | Felted Louvers For Quiet Operation |
| Max. Air Velocity | 2000 FPM |
| Max. Ambient Temp. | 180°F |
| Max. Pressure | 1 in. wc |
| Max. Velocity | 2000 FPM |
| Mounting Hole Di. | 1/4" |
| Mounting Hole Dia. | 1/4" |
| Mounting Hole Size | 9/32" x 1/2" |
| Mounting Location | Wall |
| Mounting Position | Vertical |
| No. Of Panels | 1 |
| Number Of Panels | 1 |
| Open Depth | 6 1/4" |
| Open Depth (in.) | 6-1/4 |
| Opening Required | 12 1/2" x 12 1/2" |
| Opening Type | Gravity |
| Overall Dia. | 15" |
| Overall Height | 15" |
| Overall Length | 6" |
| Overall Square | 15" |
| Overall Square (in.) | 15 |
| Overall Width | 15" |
| Pressure Drop @ 1000 Fpm | Not Applicable |
| Rough Opening Dia. | 12 1/2" |
| Rough Opening Length | 12 1/2" |
| Rough Opening Shape | Square |
| Rough Opening Width | 12 1/2" |
| Series | 502 Series |
| Shutter Mounting Location | Wall |
| Shutter Mounting Position | Vertical |
| Shutter Opening Required | 12 1/2" x 12 1/2" |
| Shutter Overall Size | 15" x 15" |
| Single Acting/double Acting | Single Acting |
| Switch Action | Normally Closed |
| Tie Rod Material | Galvanized Steel Frame And Tie Rods |
| Type | Gravity Operated Single Panel |
Shipping Info:
| Ship weight (kg) | 1.6 |
| Ship height (cm) | 38.1 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 38.1 |
| HS code | 8414901080 |
| Country of Origin | US |
Product Variants
| Product | Model | Blade Material | Frame Depth | Shutter Mounting Location | Fits Fan Dia. | Shutter Mounting Position | Open Depth | Overall Height | Overall Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1C055 | Aluminum | 2 1/2" | Wall | 30" | Vertical | 6 1/4" | 33" | 33" | €162.93 | |
 |
1C209 | Aluminum | 2 1/2" | Wall | 36" | Vertical | 6 1/4" | 39" | 39" | €272.51 | |
|
1C210 | Aluminum | 2 1/2" | Wall | 42" | Vertical | 6 1/4" | 45" | 45" | €312.88 | |
|
1C211 | Aluminum | 2 1/2" | Wall | 48" | Vertical | 6 1/4" | 51" | 51" | €421.56 | |
 |
1C742 | Aluminum | 2 1/2" | Wall | 12" | Vertical | 5 3/4" | 15" | 15" | €90.29 | |
|
1C743 | Aluminum | 2 1/2" | Wall | 16" | Vertical | 5 3/4" | 19" | 19" | €94.25 | |
|
1C744 | Aluminum | 2 1/2" | Wall | 18" | Vertical | 5 3/4" | 21" | 21" | €105.66 |
