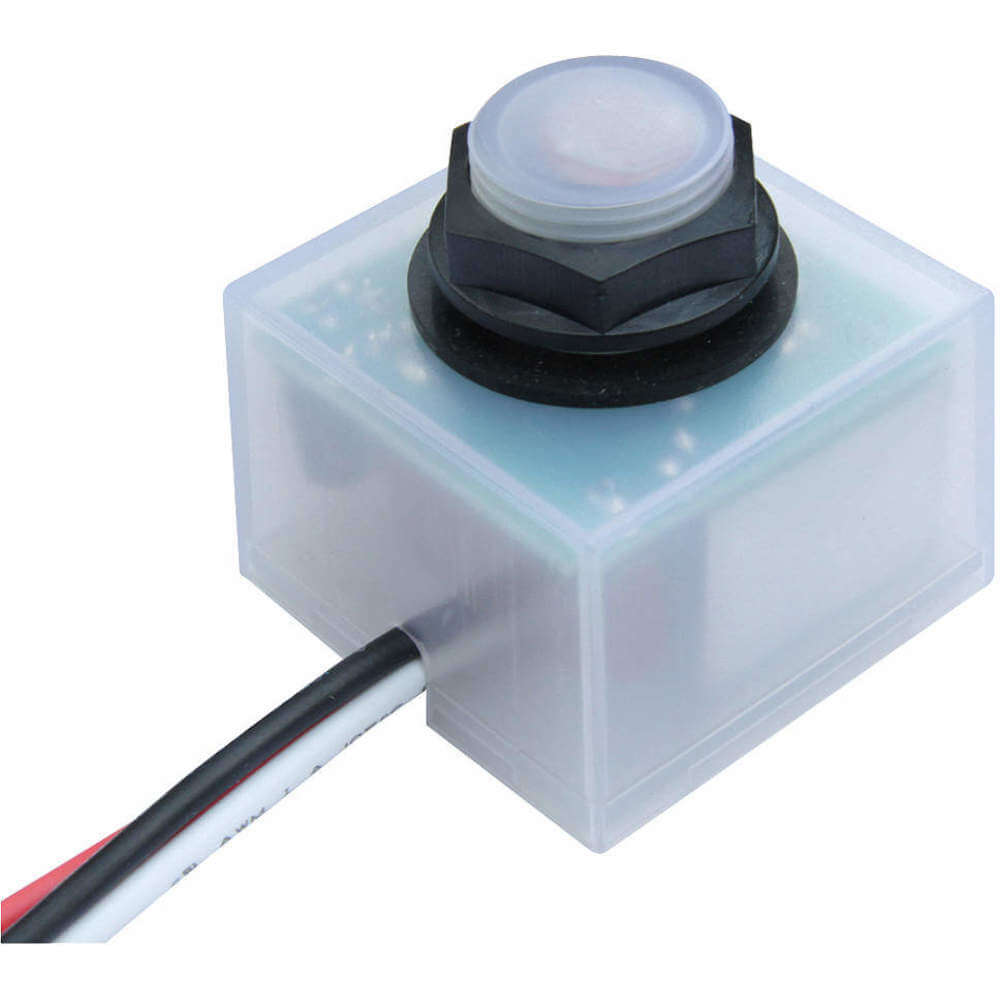

DAYTON 26WA98 Photocontrol Fixed 120 To 277vac
Item: AB8QRDModel: 26WA98
7 In Stock
Ships within 2 days via
10.00% off
€28.68 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Photocontrol |
| Applicable Ac Voltage Ranges | 120-277V AC |
| Color | Translucent |
| Compatible Lighting | Incandescent |
| Contact Form | SPST |
| Depth | 1 7/8" |
| Description/special Features | Delay Action Elimates Loads Switching Off Due To Car Headlights, Lightning, 9 In Leads |
| Display Qty | 1 |
| Enclosure Type | Raintight |
| Features | 9" Leads, Built In Delay |
| Foot Candles Off | 30 to 60 |
| Foot Candles Off | 30 fC to 60 fC |
| Foot Candles On | 10 to 20 |
| For Use With | Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting |
| Housing Color | Translucent |
| Housing Material | Polycarbonate |
| Incandescent Current - Maximum | 6A |
| Includes | Lock Nut, Washer Gasket |
| Length | 1 3/4" |
| Length (straight Wireway) | 1 3/4" |
| Manufacturers Warranty Length | 5 yrs. |
| Max. Ballast Amps | 6 |
| Max. Ballast Amps | 6A |
| Max. Incandescent Amps | 6 |
| Max. Incandescent Amps | 6A |
| Max. Wattage | 720-1662 W |
| Maximum On Illumination | 20 fC |
| Mounting Style | Flush |
| Mounting Type | Fixed |
| Nema Rating | Non-NEMA |
| Nominal Ac Voltage Ratings | 120/240/277V AC |
| Off Illumination - Maximum | 60 fC |
| Off Illumination - Minimum | 30 fC |
| On Illumination - Minimum | 10 fC |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -40°F |
| Overall Depth | 1.88" |
| Overall Height | 1 3/4" |
| Setting | On at Dusk, Off at Dawn |
| Setting | Dusk To Dawn |
| Voltage | 120-277V AC |
| Wattage - Maximum | 1662 W |
| Width | 1 3/4" |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 6.9 |
| Ship length (cm) | 6.6 |
| Ship width (cm) | 6.6 |
| HS code | 8536509065 |
| Country of Origin | CN |
Product Details:
- Special Features: Delay Action Elimates Loads Switching Off Due To Car Headlights, Lightning, 9" Leads
