DAYTON 23L436 Speed Reducer:12.5:1
Item: AG9YMCModel: 23L436
7 In Stock
Ships within 2 days via
10.00% off
€199.84 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Speed Reducer |
| Bearing Type | Ball |
| Duty | Continuous |
| Finish | Epoxy Paint |
| Gear Ratio | 12.5:1 |
| Gear Type | Helical |
| Housing Material Finish | Powdered Epoxy Paint |
| Input Rpm | 1800 RPM |
| Lubrication | Grease |
| Max. Input Hp | 1/20 hp |
| Max. Output Torque | 24.60 in.-lb. |
| Maximum Input Horsepower | 0.05 hp |
| Maximum Input Speed | 1800 RPM |
| Maximum Output Speed | 144 RPM |
| Maximum Output Torque | 24.6 lbs.-in. |
| Mounting Type | Flange |
| Nominal Output Rpm | 144 RPM |
| Rotation | CW/CCW |
| Shaft Orientation | Parallel Inline |
Shipping Info:
| Ship weight (kg) | 0.81 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 10.16 |
| Country of Origin | KR |
Product Variants
| Product | Model | Max. Input Hp | Gear Ratio | Max. Output Torque | Rotation | Nominal Output Rpm | Maximum Output Speed | Maximum Input Horsepower | Gear Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
23L542 | 2/25 hp | - | - | CW/CCW | 360 RPM | - | - | - | €318.22 | |
|
23L543 | 2/25 hp | 61 | - | Reversible | 300 RPM | - | - | Helical | €319.63 | |
 |

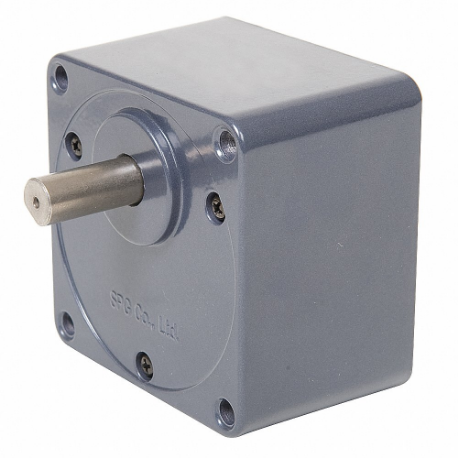

23L460 | 1/4 hp | 12:1 | 121.26 lbs.-in. | CW/CCW | - | 144 RPM | - | Helical | €453.03 | |
 |

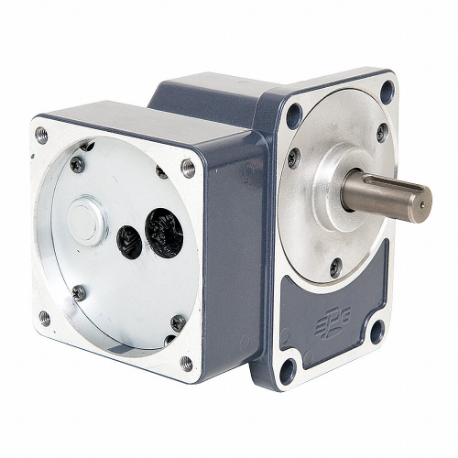

23L428 | 3/100 hp | 180:1 | 78 lbs.-in. | CW/CCW | - | 10 RPM | 0.03 hp | - | €329.53 |
