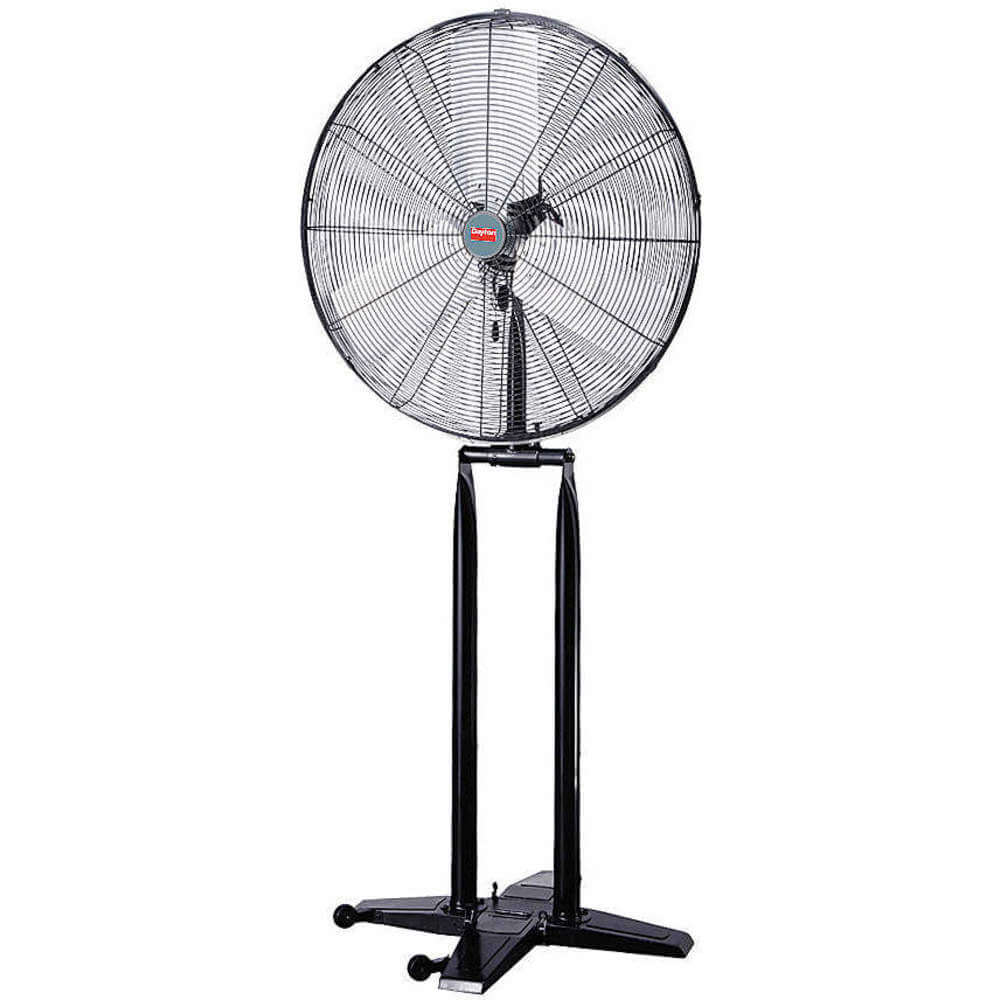

DAYTON 22YK17 Foldable Air Circulator 30 Inch Osc
Get it by Wednesday, Dec 24
10.00% off
€549.53 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Foldable Air Circulator |
| Air Flow | 7200/8130 CFM |
| Air Velocity (fpm) @ 10 Ft. | 745 |
| Air Velocity (fpm) @ 20 Ft. | 510 |
| Air Velocity (fpm) @ 40 Ft | 200 FPM |
| Air Velocity (fpm) @ 40 Ft | 200 |
| Air Velocity @ 10 Ft. | 745 FPM |
| Air Velocity @ 20 Ft. | 510 FPM |
| Amps | 2.8/1.6A |
| Assembled | Yes |
| Assembly Required | No |
| Bearing Type | Sealed Ball |
| Blade Dia. | 30" |
| Blade Material | Aluminum |
| Cfm Low | 7200 |
| Cfm/watt | 38.7 CFM/W |
| Cfm/watt | 38.7 |
| Color | Black |
| Cord Length | 9 ft. |
| Depth | 32" |
| Drive Type | Direct Drive |
| Environmental Applications | Industrial |
| Fan Accessory Style | Standard |
| Fan Cord Length | 9 ft. |
| Fan Housing Material | Steel |
| Fan Mounting Location | Foldable Pedestal |
| Fan Style | Standard |
| Guard Material | Steel |
| Height | 74 1/4" |
| Height Adjustment | Fixed Height |
| Housing Material | Steel |
| Hz | 60 Hz |
| Includes | Pedestal Base, Column, And 2" Plastic Wheels |
| Max. Ambient Temp. | 104°F |
| Max. Depth | 32" |
| Mobile/stationary | Stationary |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Hp | 1/4 hp |
| Motor Insulation | Class B |
| Motor Insulation Class | Class B |
| Motor Speed | 1100/850 RPM |
| Motor Type | Permanent Split Capacitor |
| Mounting Location | Foldable Pedestal |
| Mounting Style | Pedestal |
| Nema Plug Configuration | 5-15P |
| Number Of Blades | 3 |
| Number Of Speeds | 2 |
| Oscillating | Yes |
| Oscillating/non-oscillating | Oscillating |
| Oscillation | Oscillating |
| Phase | 1 |
| Product Type | Light-Duty Industrial Fan |
| Rpm | 1100/900 RPM |
| Shaft Dia. | 15 mm |
| Sound Level | 74 dBA |
| Thermal Protection | Automatic Reset |
| Voltage | 120V AC |
| Wattage | 185/279 W |
| Watts | 280/220 W |
| Wheel Dia. | 2" |
| Wheel Material | Plastic |
| Wheeled Base | Mobile |
| Width | 33" |
| Wire Guard Finish | Polyester Powder Coated Black |
Shipping Info:
| Ship weight (kg) | 33.75 |
| Ship height (cm) | 113.03 |
| Ship length (cm) | 88.9 |
| Ship width (cm) | 44.45 |
| HS code | 8414596090 |
| Country of Origin | CN |
Product Details:
- Mobile/Stationary (Mobile)
Product Variants
| Model | Blade Dia. | Oscillating/non-oscillating | Sound Level | Height | Motor Enclosure Design | Watts | Motor Speed | Cfm/watt | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 22YK15 | 24" | Oscillating | 72 dBA | 71 3/4" | Totally Enclosed Air Over | 280/220 W | 1100/850 RPM | 40.9 CFM/W | €531.45 | |
| 22YK16 | 24" | Non Oscillating | 72 dBA | 71 3/4" | Open Air Over | 310/230 W | 1100/850 RPM | 41.1 CFM/W | €476.23 | |
| 22YK18 | 30" | Non Oscillating | 74 dBA | 74 1/4" | Open Air Over | 310/230 W | 1100/900 RPM | 41.4 CFM/W | €524.40 |
