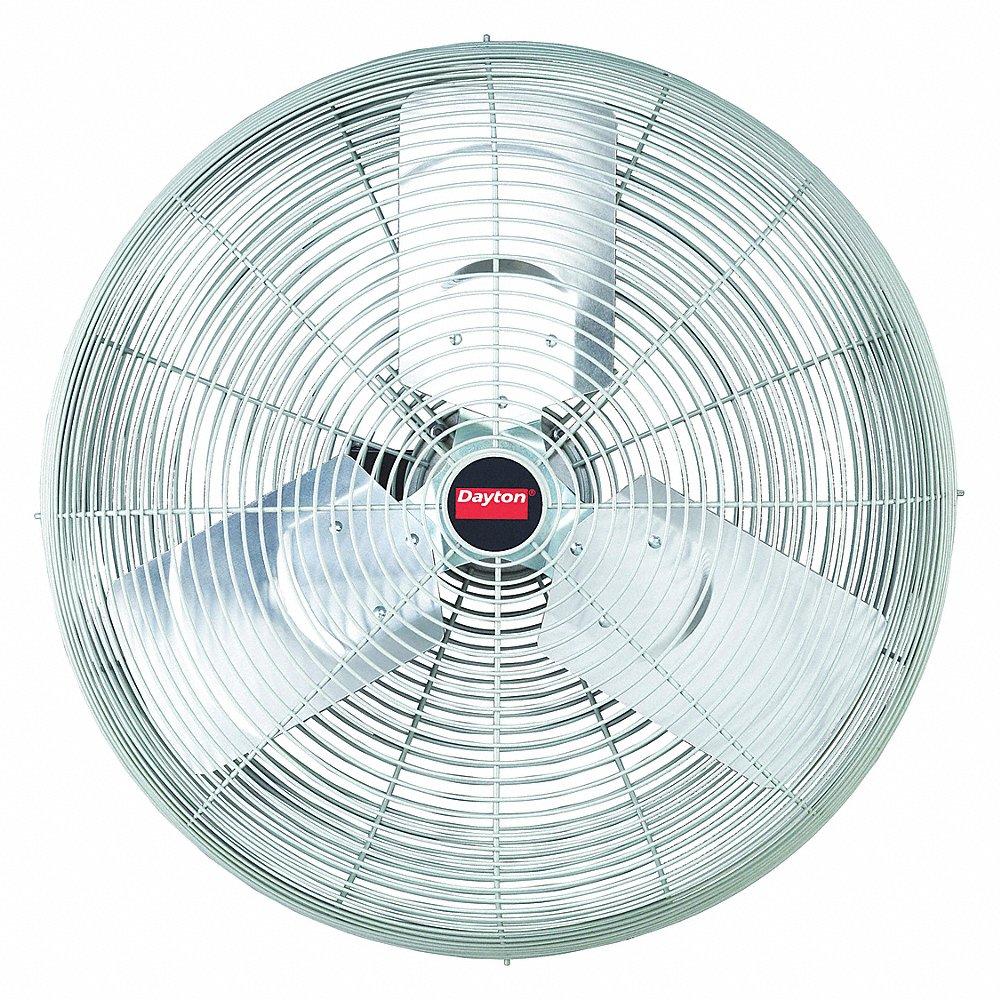

DAYTON 216NU3 Industrial Fan, 24 Inch Blade Dia., 6000 cfm, 208 To 230/460V AC, 1/2 HP
Get it by Wednesday, Jul 1
5.00% off
€417.91 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fan |
| Air Velocity @ 10 Ft. | 1000 FPM |
| Air Velocity @ 20 Ft. | 590 FPM |
| Air Velocity @ 40 Ft. | 200 FPM |
| Airflow | 6000 CFM |
| Amps | 1.1/2.2A |
| Assembly Required | No |
| Bearing Type | Ball |
| Blade Dia. | 24" |
| Blade Material | Aluminum |
| Color | Gray |
| Depth | 13 9/16" |
| Environmental Applications | Industrial |
| Fan Mounting Location | Ceiling, Post, Wall |
| Features | Mounting Bolts, Conduit Box |
| Frequency | 60 Hz |
| Guard Material | Steel |
| Height | 26" |
| Height Adjustment | Fixed Height |
| Hp | 1/2 hp |
| Included | Air Circulator, Mounting Bracket |
| Max. Ambient Temp. | 104°F |
| Motor Design | 3-Phase |
| Motor Enclosure | Totally Enclosed Air Over |
| Motor Hp | 1/2 hp |
| Motor Insulation | Class B |
| Motor Type | 3 Phase |
| Mounting Location | Ceiling, Post, Wall |
| Nema Plug Configuration | Hardwired |
| No. Of Blades | 3 |
| No. Of Speed | 1 |
| Oscillation | Non Oscillating |
| Phase | 3 |
| Product Type | Standard-Duty Industrial Fan |
| Shaft Dia. | 1/2" |
| Sound Level | 73 dBA |
| Thermal Protection | No Thermal Protection |
| Voltage | 208-230/460V AC |
| Watts | 420 W |
| Wheeled Base | Stationary |
| Width | 26" |
| Wire Guard Finish | Powder Coated |
Shipping Info:
| Ship weight (kg) | 20.04 |
| Ship height (cm) | 66.04 |
| Ship length (cm) | 34.45 |
| Ship width (cm) | 66.04 |
| Country of Origin | CN |
Product Variants
| Product | Model | Phase | Blade Dia. | Motor Hp | Voltage | Mounting Location | Oscillating/non-oscillating | Sound Level | Max. Ambient Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
13V401 | 1 | 18" | 1/5 hp | - | Wall | Oscillating | 70 dBA, 66 dBA | 104°F | €324.25 | |
|
13V402 | 1 | 20" | 1/5 hp | 120V AC | Wall | Oscillating | 68 dBA, 65 dBA | 104°F | €373.12 | |
 |
1RWB4 | 1 | 30" | 1/4 hp | 120V AC | Ceiling, Wall | Non Oscillating | 77 dBA | 104°F | €336.21 | |
 |
1VCH1 | 1 | 24" | 1/4 hp | 115/230V AC | Wall | Non Oscillating | 76 dBA | 104°F | €1,855.80 | |
|
1VCH2 | 1 | 30" | 3/4 hp | 115/230V AC | Wall | Non Oscillating | 80 dBA | 104°F | €1,646.89 | |
|
1VCH3 | 1 | 36" | 3/4 hp | 115/230V AC | Wall | Non Oscillating | 82 dBA | 104°F | €2,360.17 | |
 |
1ZCN7 | 1 | 18" | 1/15 hp | 115V AC | Ceiling, Wall | Non Oscillating | 59 dBA | 104°F | €227.50 |
