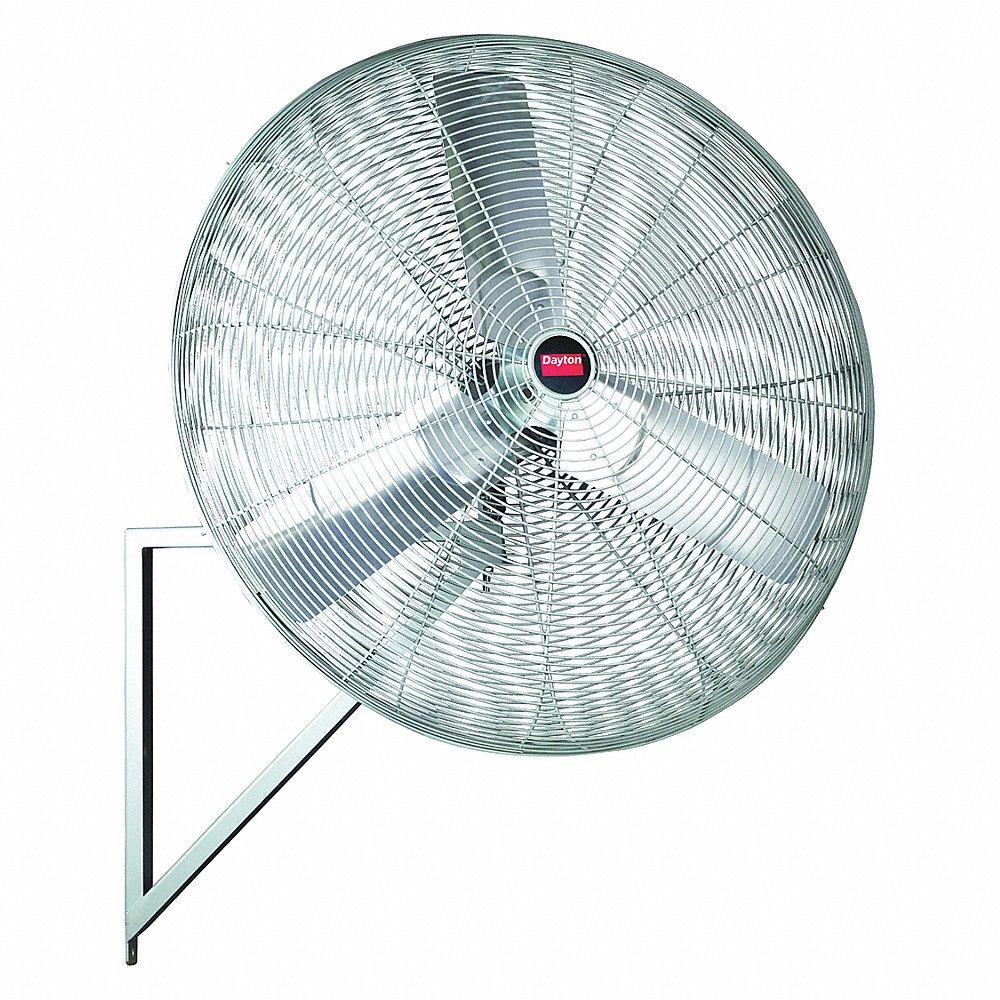

DAYTON 216NU2 Standard Duty Industrial Fan, Stationary, Ceiling, Post, Wall, 24 Inch Size, 277VAC
Get it by Friday, Feb 13
10.00% off
€512.81 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fan |
| Air Flow | 6050 CFM |
| Air Velocity @ 10 Ft. | 970 FPM |
| Air Velocity @ 20 Ft. | 450 FPM |
| Air Velocity @ 40 Ft. | 200 FPM |
| Amps | 1.8A |
| Assembly Required | No |
| Bearing Type | Ball |
| Blade Dia. | 24" |
| Blade Material | Aluminum |
| Color | Gray |
| Depth | 24 1/4" |
| Environmental Applications | Industrial |
| Fan Mounting Location | Ceiling, Post, Wall |
| Features | Wall Bracket, Conduit Box |
| Guard Material | Steel |
| Height | 31" |
| Height Adjustment | Fixed Height |
| Hp | 1/2 hp |
| Hz | 60 Hz |
| Includes | Air Circulator, Mounting Bracket |
| Max. Ambient Temp. | 104°F |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure | Totally Enclosed Air Over |
| Motor Hp | 1/2 hp |
| Motor Insulation | Class B |
| Mounting Location | Ceiling, Post, Wall |
| Nema Plug Configuration | Hardwired |
| Number Of Blades | 3 |
| Number Of Speeds | 1 |
| Oscillation | Non Oscillating |
| Phase | 1 |
| Product Type | Standard-Duty Industrial Fan |
| Shaft Dia. | 1/2" |
| Sound Level | 73 dBA |
| Thermal Protection | Automatic Reset |
| Voltage | 277V AC |
| Watts | 450 W |
| Wheeled Base | Stationary |
| Width | 27" |
| Wire Guard Finish | Powder Coated |
Shipping Info:
| Ship weight (kg) | 22.36 |
| Ship height (cm) | 78.74 |
| Ship length (cm) | 61.6 |
| Ship width (cm) | 68.58 |
| Country of Origin | CN |
Product Variants
| Product | Model | Phase | Number Of Speeds | Motor Hp | Voltage | Blade Dia. | Mounting Location | Oscillating/non-oscillating | Sound Level | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
13V401 | 1 | 2 | 1/5 hp | - | 18" | Wall | Oscillating | 70 dBA, 66 dBA | €351.64 | |
|
13V402 | 1 | 2 | 1/5 hp | 120V AC | 20" | Wall | Oscillating | 68 dBA, 65 dBA | €408.45 | |
 |
1RWB4 | 1 | 2 | 1/4 hp | 120V AC | 30" | Ceiling, Wall | Non Oscillating | 77 dBA | €379.49 | |
 |
1VCH1 | 1 | 1 | 1/4 hp | 115/230V AC | 24" | Wall | Non Oscillating | 76 dBA | €1,971.79 | |
|
1VCH2 | 1 | 1 | 3/4 hp | 115/230V AC | 30" | Wall | Non Oscillating | 80 dBA | €1,749.83 | |
|
1VCH3 | 1 | 1 | 3/4 hp | 115/230V AC | 36" | Wall | Non Oscillating | 82 dBA | €2,507.68 | |
 |
1ZCN7 | 1 | 1 | 1/15 hp | 115V AC | 18" | Ceiling, Wall | Non Oscillating | 59 dBA | €257.15 |
