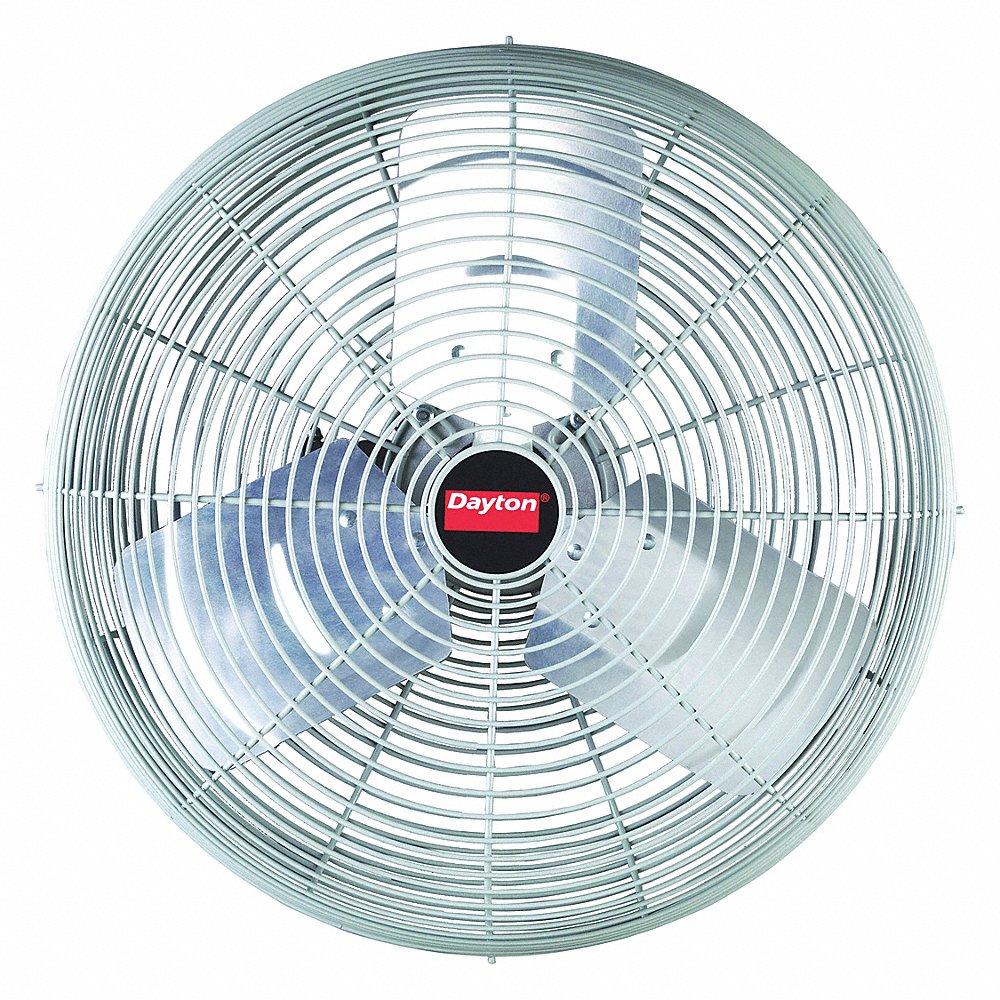

DAYTON 216NT7 Industrial Fan, 20 Inch Blade Dia., 3080/4750 cfm, 115V AC, 1/4 HP
Get it by Wednesday, Jul 1
5.00% off
€550.06 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fan |
| Air Velocity @ 10 Ft. | 910/600 FPM |
| Air Velocity @ 20 Ft. | 585/380 FPM |
| Air Velocity @ 40 Ft. | 150/100 FPM |
| Airflow | 3080/4750 CFM |
| Amps | 1.4/2A |
| Assembly Required | No |
| Bearing Type | Ball |
| Blade Dia. | 20" |
| Blade Material | Aluminum |
| Color | Gray |
| Depth | 13 1/8" |
| Environmental Applications | Industrial |
| Fan Mounting Location | Ceiling, Post, Wall |
| Features | Mounting Bolts |
| Frequency | 60 Hz |
| Guard Material | Steel |
| Height | 23" |
| Height Adjustment | Fixed Height |
| Hp | 1/4 hp |
| Included | Air Circulator, Misting Hub Kit, Mounting Bracket |
| Max. Ambient Temp. | 104°F |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure | Totally Enclosed Air Over |
| Motor Hp | 1/4 hp |
| Motor Insulation | Class B |
| Mounting Location | Ceiling, Post, Wall |
| Nema Plug Configuration | 5-15P |
| No. Of Blades | 3 |
| No. Of Speed | 2 |
| Oscillation | Non Oscillating |
| Phase | 1 |
| Product Type | Standard-Duty Industrial Fan |
| Shaft Dia. | 1/2" |
| Sound Level | 72 dBA |
| Thermal Protection | Automatic Reset |
| Voltage | 115V AC |
| Watts | 160/220 W |
| Wheeled Base | Stationary |
| Width | 23" |
| Wire Guard Finish | Powder Coated |
Shipping Info:
| Ship weight (kg) | 15.88 |
| Ship height (cm) | 58.42 |
| Ship length (cm) | 33.34 |
| Ship width (cm) | 58.42 |
| Country of Origin | CN |
Product Variants
| Product | Model | Phase | Blade Dia. | Motor Hp | Voltage | Mounting Location | Oscillating/non-oscillating | Sound Level | Max. Ambient Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
13V401 | 1 | 18" | 1/5 hp | - | Wall | Oscillating | 70 dBA, 66 dBA | 104°F | €324.25 | |
|
13V402 | 1 | 20" | 1/5 hp | 120V AC | Wall | Oscillating | 68 dBA, 65 dBA | 104°F | €373.12 | |
 |
1RWB4 | 1 | 30" | 1/4 hp | 120V AC | Ceiling, Wall | Non Oscillating | 77 dBA | 104°F | €336.21 | |
 |
1VCH1 | 1 | 24" | 1/4 hp | 115/230V AC | Wall | Non Oscillating | 76 dBA | 104°F | €1,855.80 | |
|
1VCH2 | 1 | 30" | 3/4 hp | 115/230V AC | Wall | Non Oscillating | 80 dBA | 104°F | €1,646.89 | |
|
1VCH3 | 1 | 36" | 3/4 hp | 115/230V AC | Wall | Non Oscillating | 82 dBA | 104°F | €2,360.17 | |
 |
1ZCN7 | 1 | 18" | 1/15 hp | 115V AC | Ceiling, Wall | Non Oscillating | 59 dBA | 104°F | €227.50 |
