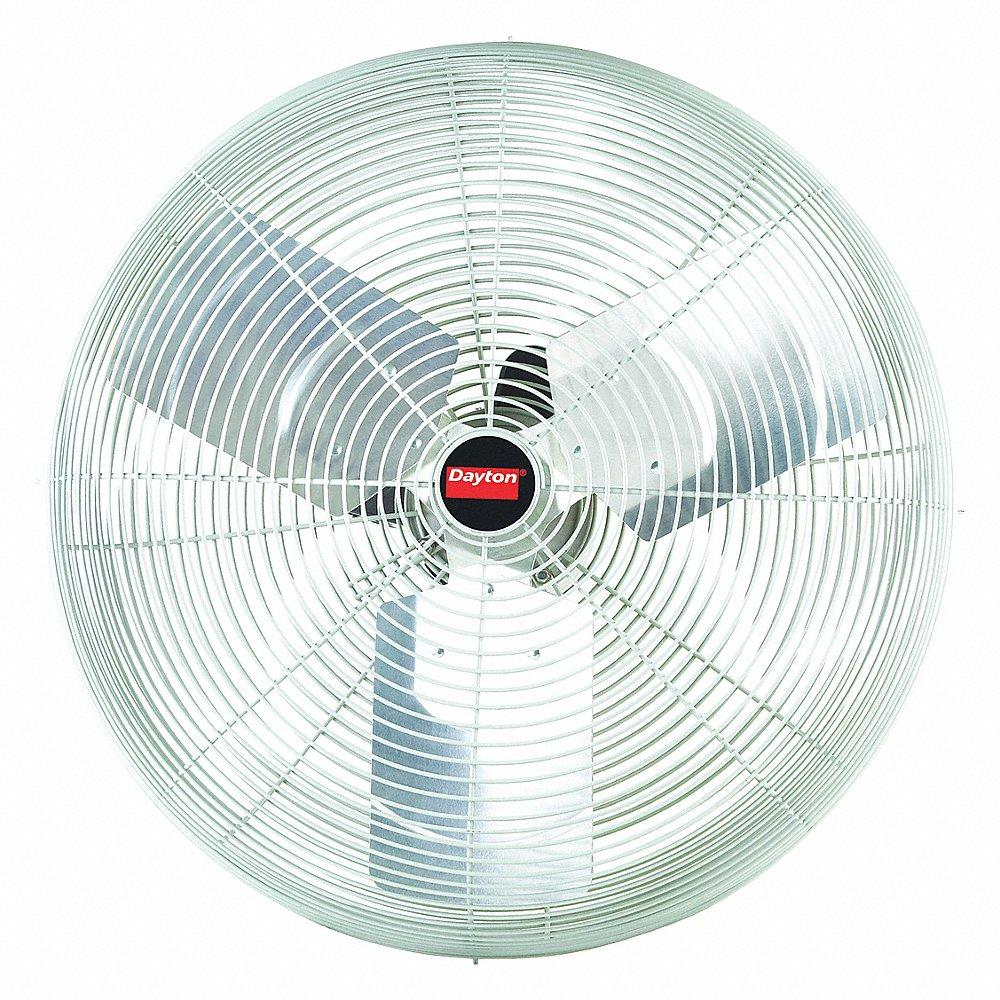

DAYTON 216NT2 High-Temperature Industrial Fan, 24 Inch Blade Dia., 7100 cfm, 115/230V AC, 1/2 HP
Get it by Tuesday, Aug 18
5.00% off
€495.60 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fan |
| Air Velocity @ 10 Ft. | 1000 FPM |
| Air Velocity @ 20 Ft. | 570 FPM |
| Air Velocity @ 40 Ft. | 230 FPM |
| Air Velocity @ 60 Ft. | 120 FPM |
| Airflow | 7100 CFM |
| Amps | 2.6/5.2A |
| Assembly Required | No |
| Bearing Type | Ball |
| Blade Dia. | 24" |
| Blade Material | Aluminum |
| Color | Gray |
| Depth | 13 3/4" |
| Fan Mounting Location | Ceiling, Post, Wall |
| Features | Mounting Bolts, Conduit Box |
| Frequency | 60 Hz |
| Guard Material | Steel |
| Height | 27" |
| Height Adjustment | Fixed Height |
| Hp | 1/2 hp |
| Included | High Ambient Air Circulator, Mounting Bracket |
| Max. Ambient Temp. | 140°F |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure | Totally Enclosed Air Over |
| Motor Hp | 1/2 hp |
| Motor Insulation | Class B |
| Nema Plug Configuration | Hardwired |
| No. Of Blades | 3 |
| No. Of Speed | 1 |
| Oscillation | Non Oscillating |
| Phase | 1 |
| Product Type | High-Temperature Industrial Fan |
| Shaft Dia. | 1/2" |
| Sound Level | 74 dBA |
| Thermal Protection | Automatic Reset |
| Voltage | 115/230V AC |
| Watts | 520 W |
| Wheeled Base | Stationary |
| Width | 27" |
| Wire Guard Finish | Powder Coated |
Shipping Info:
| Ship weight (kg) | 19.98 |
| Ship height (cm) | 68.58 |
| Ship length (cm) | 34.93 |
| Ship width (cm) | 68.58 |
| Country of Origin | CN |
Product Variants
| Product | Model | Phase | Blade Dia. | Blade Material | No. Of Speed | Speed | Watts | Height | No. Of Blades | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
13V401 | 1 | 18" | Aluminum | 2 | - | 213/148 W | 38 1/8" | 3 | €324.25 | |
|
13V402 | 1 | 20" | Aluminum | 2 | 1100/925 RPM | 220/180 W | 39" | 3 | €373.12 | |
 |
1RWB4 | 1 | 30" | Aluminum | 2 | 1100/900 RPM | 320/225 W | 34 1/2" | 3 | €336.21 | |
 |
1VCH1 | 1 | 24" | Cast Aluminum | 1 | 1140 RPM | 353 W | 34" | 4 | €1,855.80 | |
|
1VCH2 | 1 | 30" | Cast Aluminum | 1 | 1140 RPM | 701 W | 37" | 4 | €1,646.89 | |
|
1VCH3 | 1 | 36" | Cast Aluminum | 1 | 1140 RPM | 701 W | 39" | 4 | €2,360.17 | |
 |
1ZCN7 | 1 | 18" | Aluminum | 1 | 1650 RPM | 120 W | 20 1/2" | 2 | €227.50 |
