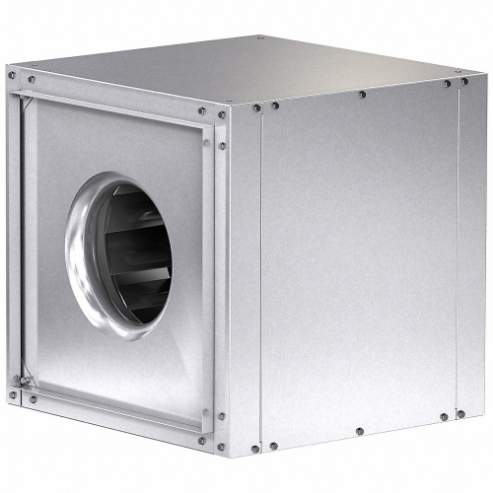

DAYTON 20UD15 Inline Duct Blower, 11 Inch Size, 115V, 1/6 HP
Get it by Tuesday, Dec 23
10.00% off
€1.12 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | In-Line Duct Blower |
| Airflow @ 0.000 In Sp | 1024 CFM |
| Airflow @ 0.125 In Sp | 948 CFM |
| Airflow @ 0.250 In Sp | 850 CFM |
| Airflow @ 0.250 In Sp Range | 0-1999 CFM |
| Airflow @ 0.375 In Sp | 751 CFM |
| Airflow @ 0.500 In Sp | 641 CFM |
| Airflow @ 0.625 In Sp | 507 CFM |
| Airflow @ 0.750 In Sp | 352 CFM |
| Assembly | Assembled |
| Current | 3.1A |
| Discharge Position | Left, Right, Inline, Combinition Of All |
| Drive Type | Direct Drive |
| Features | Collars Simplify Duct Connections, Potentiometer Dial On Motor Allows Speed Control Down To 80%, Provides Upto 60% Energy Savings |
| For Air Type | Clean |
| For High-static Pressure Applications | No |
| For Ventilation Type | Exhaust, Make Up, Return, Supply |
| Frequency | 60 Hz |
| High-efficiency Motor | Yes |
| Housing Material | Steel |
| Housing Material Finish | Galvanized |
| Includes | Access Panels, Motor Mounted Potentiometer For Speed Adjustment, Nema 1 Junction Box |
| Includes Drive Package With Motor | Yes |
| Inlet Diameter | 8.3" |
| Inlet Duct Connection Height | 11 7/8" |
| Inlet Duct Connection Width | 11 7/8" |
| Manufacturer Warranty Length | 1 yr. |
| Maximum Fan Speed | 1725 RPM |
| Maximum Inlet Air Temperature | 104°F |
| Maximum Static Pressure | 0.75 in. wc |
| Motor Enclosure | Totally Enclosed Nonventilated |
| Motor Hp | 1/6 hp |
| Motor Speed | 1725 RPM |
| Motor Type | Electronically Commutated |
| Mounting Orientation | Multiposition |
| Nameplate Voltage | 115V AC |
| Number Of Speeds | Variable |
| Outlet Diameter | 8 1/4" |
| Outlet Duct Connection Height | 11 3/4" |
| Outlet Duct Connection Width | 11 7/8" |
| Overall Depth | 16" |
| Overall Height | 11 7/8" |
| Overall Width | 15" |
| Phase | 1 |
| Rotation | CCW |
| Shaft Diameter | 1/2" |
| Spark Resistant Construction Type | Not Rated |
| Speed Controllable | Variable Speed |
| Thermal Overload Protection | Yes |
| Wheel Diameter | 11" |
| Wheel Material | Aluminum |
| Wheel Type | Backward Inclined |
Shipping Info:
| Ship weight (kg) | 16.81 |
| Ship height (cm) | 30.16 |
| Ship length (cm) | 40.64 |
| Ship width (cm) | 38.1 |
| Country of Origin | US |
Product Variants
| Model | Wheel Diameter | Phase | Motor Hp | Motor Type | Wheel Material | Wheel Type | Motor Speed | Bearing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 7M7R4 | 11" | 1 | 1/3 hp | Capacitor-Start | Aluminum | Backward Inclined | 1725 RPM | Sealed Pillow Block | €2,485.30 | |
| 7M7R8 | 11" | 3 | 3/4 hp | - | Aluminum | Backward Inclined | 1725 RPM | Sealed Pillow Block | €2,896.10 | |
| 7M7R5 | 11" | 1 | - | Capacitor-Start | Aluminum | Backward Inclined | 1725 RPM | Sealed Pillow Block | €2,711.70 | |
| 7M7R7 | 11" | 3 | - | - | Aluminum | Backward Inclined | 1725 RPM | Sealed Pillow Block | €2,756.25 | |
| 20UD17 | 14 1/2" | 1 | 3/4 hp | Electronically Commutated | Aluminum | Backward Inclined | 1725 RPM | - | €2.48 | |
| 20UD16 | 13 1/8" | 1 | - | Electronically Commutated | Aluminum | Backward Inclined | 1725 RPM | - | €2.48 |
