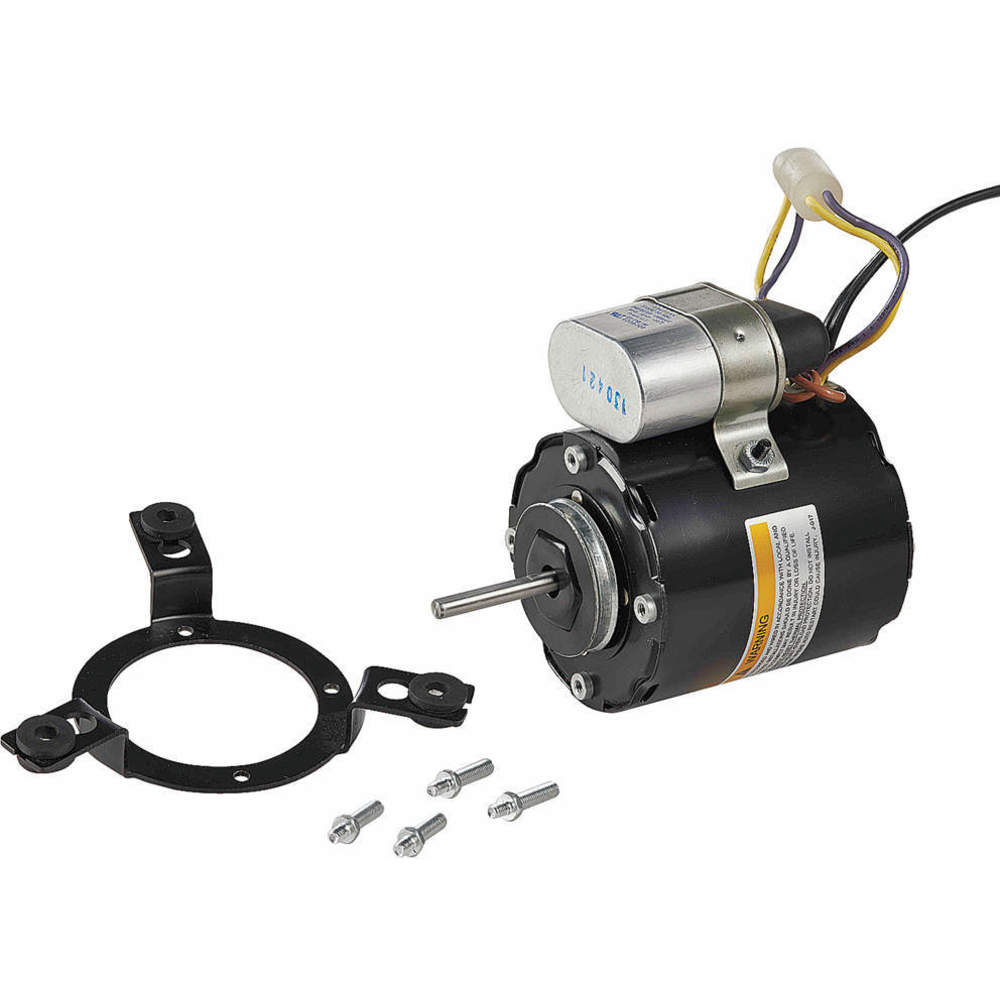

DAYTON 20HN81 HVAC Motor 1/40 HP 1550 rpm 120V 3.3
Get it by Friday, Feb 20
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€79.01 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | HVAC Motor |
| Application | HVAC/R |
| Bearing Type | Ball |
| Body Dia. | 3 5/16" |
| Capacitor Required | Included |
| Cord Length | 20" |
| Duty Cycle | Continuous |
| Frame | 3.3" |
| Frequency | 60 Hz |
| Full Load Amps | 0.37A |
| Hp | 1/40 hp |
| Includes | Capacitor |
| Insulation Class | Class B |
| Length Less Shaft | 4" |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Mounting Type | Extended Studs |
| Motor Mounting Type | Ring, Stud |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Thermal Protection | Auto |
| Motor Type | Permanent Split Capacitor |
| Mounting Pattern | 2 |
| Mounting Stud Location | 4/Both Ends |
| Mounting Stud Pattern | 2 |
| Mounting Type | Extended Studs |
| Nameplate Rpm | 1550 RPM |
| No. Of Shafts | 1 |
| No. Of Speeds | 1 |
| No. Of Studs | 4 |
| Phase | 1 |
| Plug Type | 2 Prong Polarized |
| Service Factor | 1 |
| Shaft Dia. | 1/4" |
| Shaft Length | 1 1/2" |
| Shaft Type | Flat |
| Stud Location | Both Ends |
| Stud Pattern | 2" |
| Stud/base Mtg. Pattern | 2" x 2" |
| Thermal Protection | Automatic |
| Voltage | 120V AC |
Shipping Info:
| Ship weight (kg) | 1.65 |
| Ship height (cm) | 14 |
| Ship length (cm) | 20.5 |
| Ship width (cm) | 12.5 |
| Country of Origin | CN |
Product Details:
- No. of Speeds : 1
Product Variants
| Product | Model | Voltage | Hp | Phase | Frequency | Mounting Type | Motor Enclosure Design | Full Load Amps | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
71732300M | 230V AC | 1/20 hp | 1 | 60 Hz | Extended Studs | Totally Enclosed Fan Cooled | 1A | Shaded Pole | €153.91 | |
 |
71636952M | 115V AC | 1/20 hp | 1 | 60 Hz | Extended Studs | Open Air Over | 2.1A | Shaded Pole | €194.07 | |
 |
71632454M | 115V AC | 1/20 hp | 1 | 60 Hz | Extended Studs | Totally Enclosed Fan Cooled | 1.8A | Shaded Pole | €165.88 | |
 |
71632379M | 115V AC | 1/15 hp | 1 | 60 Hz | Extended Studs | Totally Enclosed Fan Cooled | 2.3A | Shaded Pole | €194.54 | |
 |
71626626M | 115V AC | 1/8 hp | 1 | 60 Hz | Extended Studs | - | 1.3A | Permanent Split Capacitor | €198.46 | |
 |
71632766M | 115V AC | 1/15 hp | 1 | 60 Hz | Extended Studs | Totally Enclosed Fan Cooled | 2.3A | Shaded Pole | €198.55 | |
 |
71632768M | 115V AC | 1/15 hp | 1 | 60 Hz | Cradle Base | Totally Enclosed Fan Cooled | 2.3A | Shaded Pole | €250.87 |
