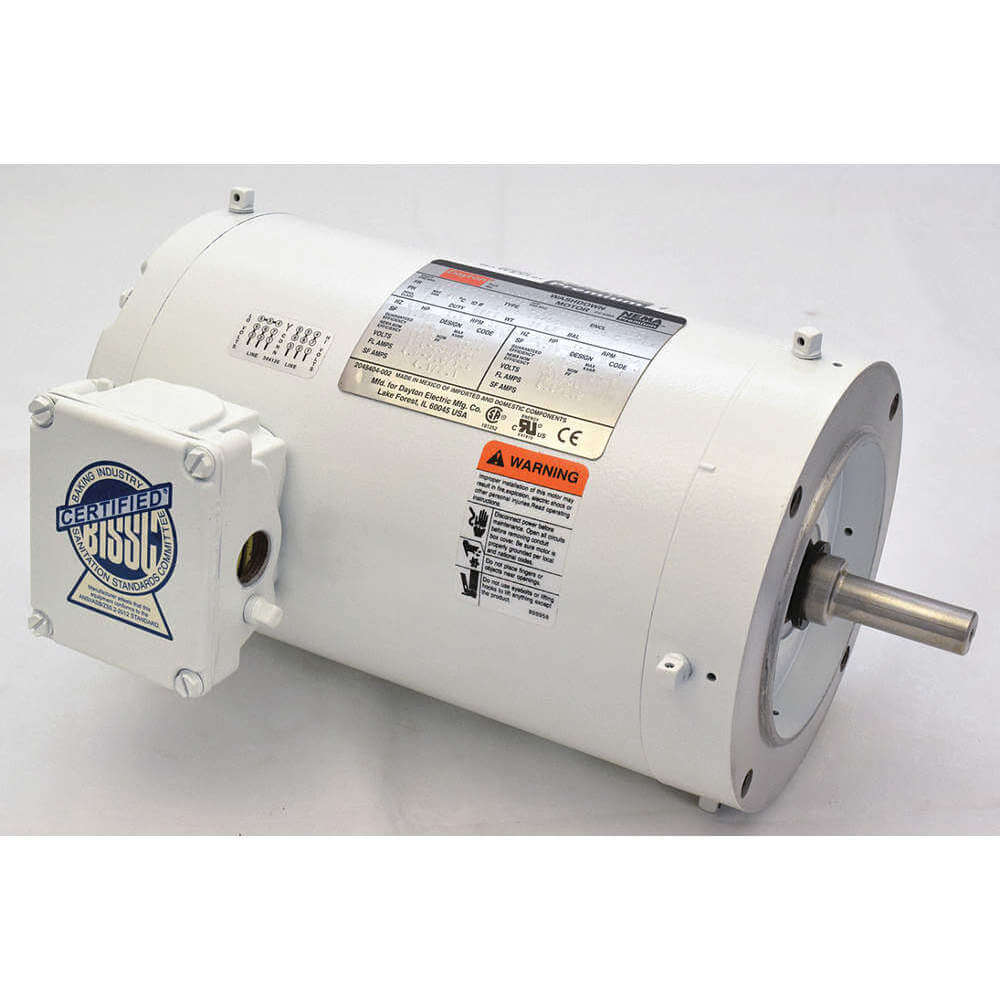

DAYTON 1TTA5BG Washdown Motor 3-phase Tenv 1-1/2 Hp 3450 Rpm
Get it by Tuesday, Sep 1
5.00% off
€1,625.77 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient Temp. | 104°F |
| Application | Washdown |
| Bearing Type | Ball |
| Body Dia. | 6 1/2" |
| Cc Number | CC030A |
| Conduit Box | Cast Oversized Gasketed |
| Conduit Box Position | F1 |
| Drain Plug | (4) Each End, (2) In Conduit Box |
| Drain Plugs | (4) Each End, (2) Conduit Box |
| Drain Plugs | (4) Each End, (2) In Conduit Box |
| Duty Cycle | Continuous |
| End Shield Material | Cast Aluminum |
| Finish | Epoxy Coating |
| Frame | 56C |
| Frame Material | Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 3.6/1.8A |
| Hp | 1 1/2 hp |
| Insulation Class | Class F |
| Length Less Shaft | 10 11/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Frame Material | Epoxy Coated Rolled Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | CW, CCW |
| Motor Thermal Protection | None |
| Motor Type | Three Phase |
| Nameplate Speed | 3505 RPM |
| Nema Design | B |
| Nominal Efficiency | 86.5% |
| Overall Length | 12 3/4" |
| Phase | 3 |
| Product Type | Washdown Motor |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Grade | Grade 303 |
| Shaft Length | 2" |
| Shaft Material | Stainless Steel |
| Thermal Protection | None |
| Voltage | 230/460V AC |
Shipping Info:
| Ship weight (kg) | 19.82 |
| Ship height (cm) | 28.45 |
| Ship length (cm) | 49.78 |
| Ship width (cm) | 29.21 |
| HS code | 8501524000 |
| Country of Origin | US |
Product Variants
| Model | Voltage | Hp | Frame Material | Shaft Dia. | Full Load Amps | Frequency | Nameplate Speed | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 11G244 | 115/208-230V AC | 3/4 hp | Stainless Steel | 5/8" | 7.6/3.8-4A | 60 Hz | 1745 RPM | Face | €947.19 | |
| 11G245 | 115/208-230V AC | 1 hp | Stainless Steel | 5/8" | 11.2/5.6-5.8A | 60 Hz | 1745 RPM | Face | €992.36 | |
| 11G246 | 115/208-230V AC | 1 1/2 hp | Stainless Steel | 5/8" | 14.8/7.4-7.6A | 60 Hz | 1745 RPM | Face | €1,255.99 | |
| 11G247 | 208-230V AC | 2 hp | Stainless Steel | 5/8" | 7.4-8.9A | 60 Hz | 3450 RPM | Face | €1,167.73 | |
| 11G248 | 208-230V AC | 2 hp | Stainless Steel | 5/8" | 8.5-9.9A | 60 Hz | 1745 RPM | Face | €1,221.92 | |
| 11G252 | 115/208-230V AC | 1/2 hp | Stainless Steel | 5/8" | 5/2.5-2.6A | 60 Hz | 1745 RPM | Face, Base | €1,147.89 | |
| 11G253 | 115/208-230V AC | 3/4 hp | Stainless Steel | 5/8" | 7.6/3.8-4A | 60 Hz | 1745 RPM | Face, Base | €990.84 |
