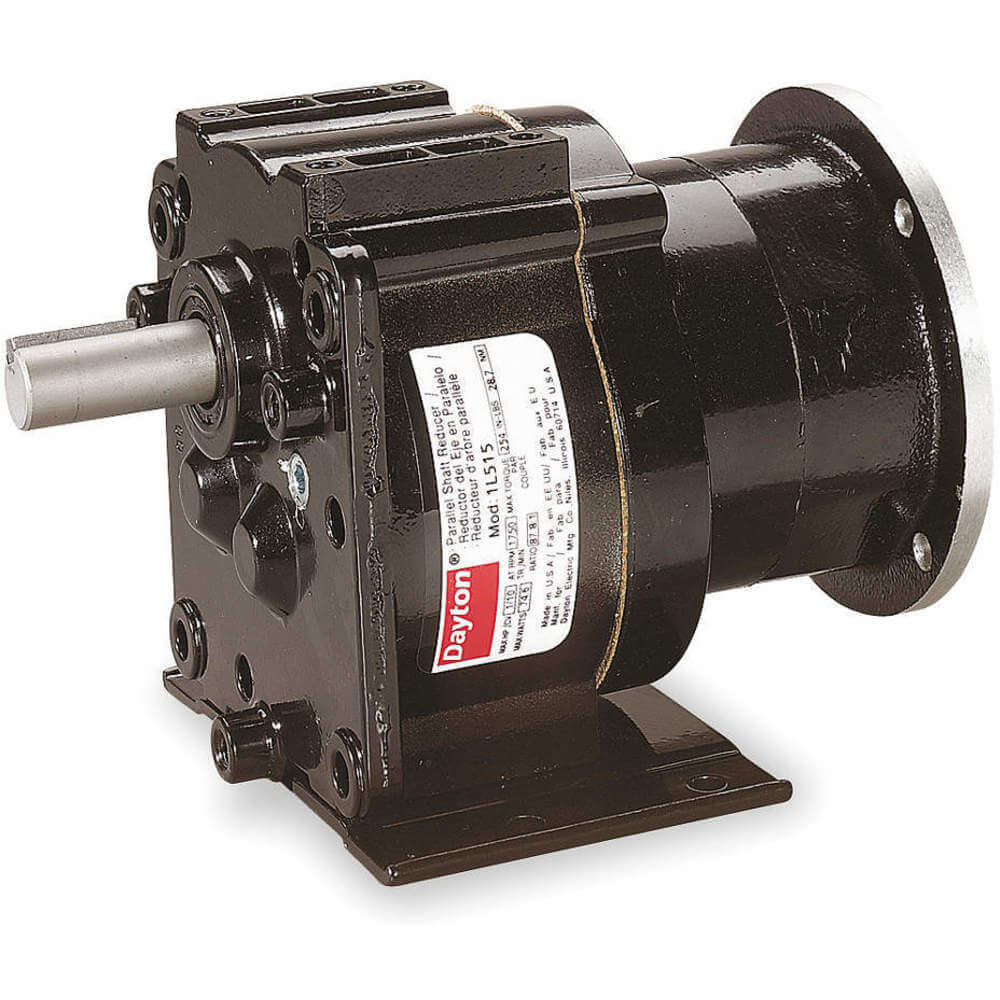

DAYTON 1L515 Speed Reducer C-face 42cz/48 87.8 1
Item: AB2CARModel: 1L515
7 In Stock
Ships within 2 days via
5.00% off
€982.31 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Speed Reducer |
| Application | Speed Reducer |
| Base | Removable |
| Base To Center | 3.33" |
| Base To Shaft Center | 3.33" |
| Base Type | Removable |
| Bearing Type | Ball |
| Bore Dia. | 5/8" |
| Dimension A | 3.344" |
| Dimension B | 2 5/8" |
| Dimension C | 4.953" |
| Dimension D | 0.203" |
| Finish | Gloss Powder Coat |
| Gear Ratio | 87.82:1 |
| Gear Type | Helical First Stage |
| Housing Material | Die Cast Aluminum |
| Housing Material Finish | Gloss Powder Coated |
| Input Connection Type | C-Face |
| Lubrication | Heavy Duty Oil |
| Max. Input Hp | 1/10 hp |
| Max. Output Torque | 254 in.-lb. |
| Maximum Input Horsepower | 0.1 hp |
| Maximum Input Speed | 1725 RPM |
| Maximum Output Speed | 20 RPM |
| Maximum Output Torque | 260 lbs.-in. |
| Motor Frame Designation | 42Cz/48 |
| Mounting Orientation | Any Angle |
| Mounting Type | Any Position |
| Nominal Output Rpm | 20 RPM |
| Number Of Stages | 3 |
| Output Shaft Dia. | 5/8" |
| Output Shaft Height | 3.344" |
| Output Torque @ 1/8 Hp | 254 in.-lb. |
| Overall Height | 4 3/4" |
| Overall Length | 5.38" |
| Overall Width | 4.06" |
| Overhung Load | 175 lbs. |
| Overhung Load Capacity | 175 lbs.-ft. |
| Pinion Material | Hardened Steel |
| Seal Type | Spring Loaded Lip |
| Shaft Orientation | Parallel Inline |
| Speed Reducer Type | C Face |
Shipping Info:
| Ship weight (kg) | 3.08 |
| Ship height (cm) | 12.07 |
| Ship length (cm) | 13.67 |
| Ship width (cm) | 10.31 |
| HS code | 8483407000 |
| Country of Origin | US |
Product Variants
| Model | gear ratio | max. input hp | gear type | mounting type | housing material | finish | Price | |
|---|---|---|---|---|---|---|---|---|
| 1L511 | 19.09:1 | - | Helical First Stage | Any Position | Die Cast Aluminum | Gloss Powder Coat | €926.75 | |
| 1L512 | 22.67:1 | 1/4 hp | Helical First Stage | Any Position | Die Cast Aluminum | Gloss Powder Coat | €859.09 | |
| 1L513 | 28.13:1 | 1/4 hp | Helical First Stage | Any Position | Die Cast Aluminum | Gloss Powder Coat | €979.16 | |
| 1L514 | 35.84:1 | 1/4 hp | Helical First Stage | Any Position | Die Cast Aluminum | Gloss Powder Coat | €1,014.03 | |
| 1L516 | 12.67:1 | - | Helical First Stage | Any Position | Die Cast Aluminum | Gloss Powder Coat | €1,135.17 | |
| 1L537 | 58.27:1 | 1/8 hp | Helical First Stage | Any Position | Die Cast Aluminum | Gloss Powder Coat | €955.08 |
