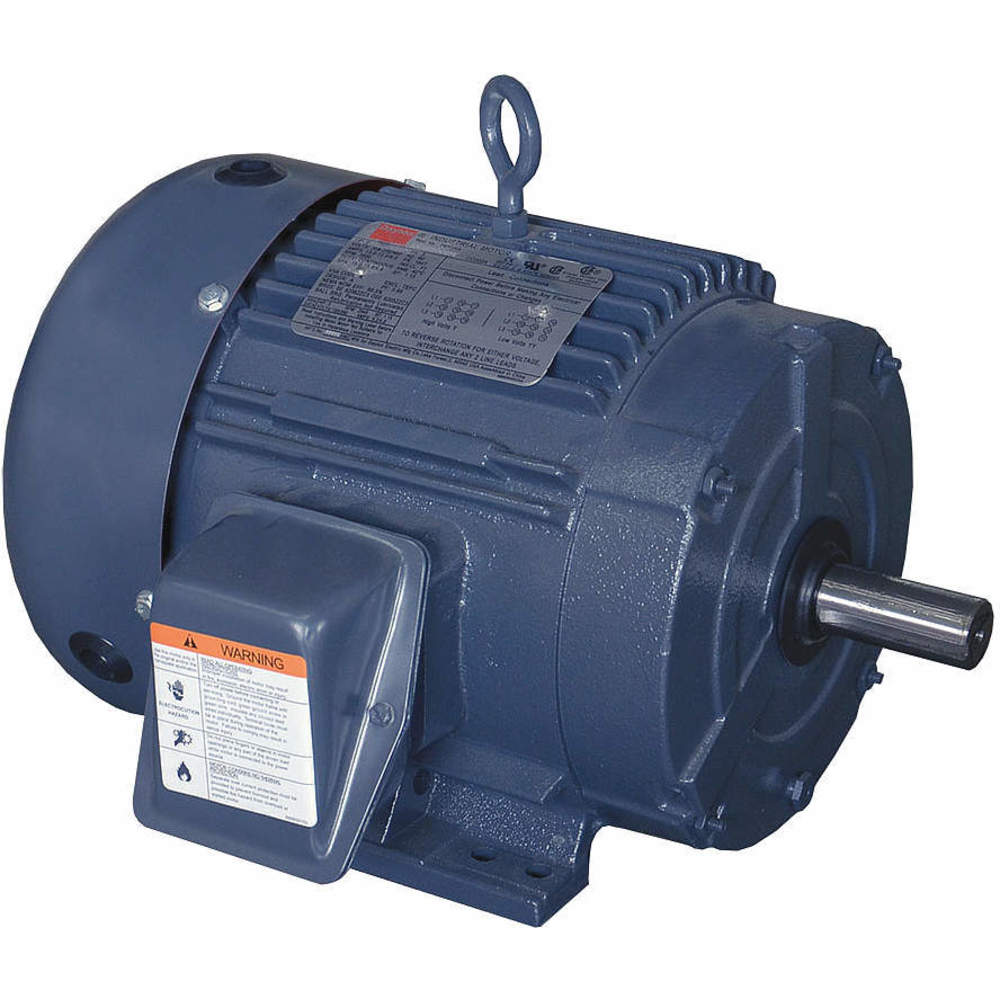

DAYTON 194142.00 Motor 3 Phase 1.5hp 1150 208-230/460 Eff 87.5
Get it by Friday, Aug 21
5.00% off
€1,261.26 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 104°F |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Cc Number | CC003A |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Efficiency | 87.5% |
| Efficiency Group | Premium |
| Frame | 182T |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Full Load Amps | 4.7/2.4A |
| Green Certification Or Other Recognition | NEMA Premium Rated |
| Hp | 1 1/2 hp |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Length Less Shaft | 12 1/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3 Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | CW, CCW |
| Motor Thermal Protection | None |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Speed | 1180 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 86.5% |
| Overall Length | 14 11/16" |
| Phase | 3 |
| Service Factor | 1.15 |
| Shaft Dia. | 1 1/8" |
| Shaft Length | 2 3/4" |
| Speed | 1101-1200 RPM |
| Thermal Protection | None |
| Voltage | 230/460V AC |
Shipping Info:
| Ship weight (kg) | 48.15 |
| Ship height (cm) | 36.83 |
| Ship length (cm) | 48.26 |
| Ship width (cm) | 38.1 |
| HS code | 8501524000 |
| Country of Origin | TW |
Product Variants
| Product | Model | Voltage | Phase | Hp | Frequency | Full Load Amps | Service Factor | Motor Type | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
10C899 | 208-230/460V AC | 3 | 3/4 hp | 50/60 Hz | 2.8/1.5A | 1 | Three Phase | Rigid Base | €444.80 | |
 |
10C901 | 208-230/460V AC | 3 | 1/2 hp | 50/60 Hz | 2/1A | 1.15 | Three Phase | Rigid Base | €410.64 | |
 |
11W365 | 230/460V AC | 3 | 1/4 hp | 60 Hz | 1/0.5A | 1.15 | Three Phase | - | €412.90 | |
|
11W368 | 230/460V AC | 3 | 1/3 hp | 60 Hz | 1.5/0.7A | - | Three Phase | - | €408.76 | |
 |
11W369 | 230/460V AC | 3 | 1 1/2 hp | 60 Hz | 4.4/2.2A | 1.15 | Three Phase | - | €1,301.70 | |
 |
01518ST3QAP254T-W22 | 460V AC | 3 | 15 hp | 50/60 Hz | 18A | 1.25 | Three Phase | Rigid Base | €4,875.87 | |
 |
02018ST3QAP256T-W22 | 460V AC | 3 | 20 hp | 50/60 Hz | 24.1A | 1.25 | - | Rigid Base | €6,341.37 |
