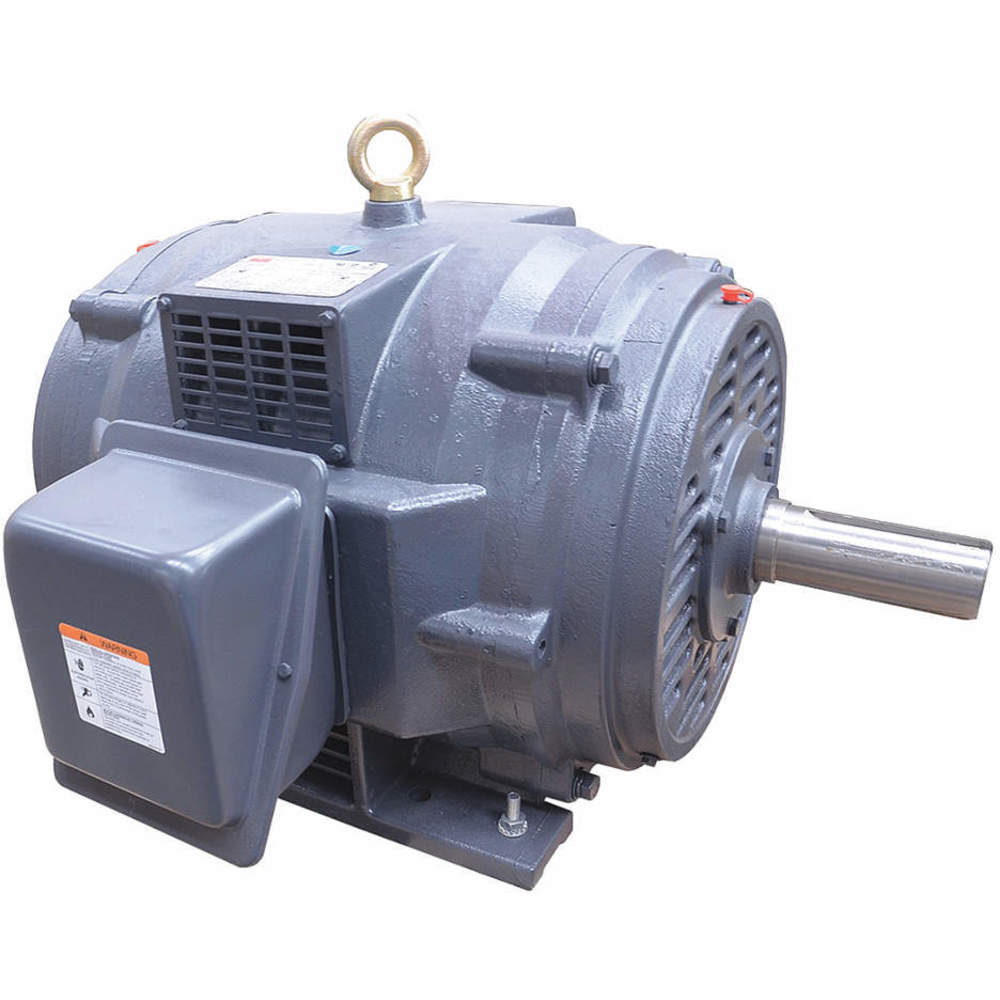

DAYTON 194137.00 Motor 3 Phase 40 Hp 1770 208-230/460 Eff 94.1
Get it by Thursday, Feb 19
10.00% off
€4,997.71 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 104°F |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Cc Number | CC003A |
| Duty Cycle | Continuous |
| Efficiency | 94.1% |
| Efficiency Group | Premium |
| Frame | 324T |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Full Load Amps | 105-94.8/47.4A |
| Green Certification Or Other Recognition | NEMA Premium Rated |
| Hp | 40 hp |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Length Less Shaft | 23 5/16" |
| Manufacturers Warranty Length | 3 yrs. |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3 Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1780 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 94.1% |
| Overall Length | 28 1/8" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 2 1/8" |
| Shaft Length | 5 1/4" |
| Thermal Protection | None |
| Usable @ 208v | Yes |
| Voltage | 230/460V AC |
| Warranty | 3 yrs. |
Shipping Info:
| Ship weight (kg) | 274.05 |
| Ship height (cm) | 69.09 |
| Ship length (cm) | 77.47 |
| Ship width (cm) | 92.71 |
| HS code | 8501528040 |
| Country of Origin | TW |
Product Variants
| Product | Model | Frequency | Full Load Amps | Service Factor | Phase | Nameplate Rpm | Motor Type | Hp | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
11W342 | 60 Hz | 8.3/4.2A | 1.15 | 3 | 1750 RPM | Three Phase | 3 hp | Face | €693.46 | |
 |
02018OT3E256TC-W40 | 60 Hz | 48.2/24.1A | 1.25 | 3 | 1765 RPM | Three Phase | 20 hp | Rigid Base | €2,318.06 | |
|
02518OT3E284TC-W40 | 60 Hz | 59/29.5A | 1.25 | 3 | 1770 RPM | Three Phase | 25 hp | Rigid Base | €2,987.15 | |
|
03018OT3E286TC-W40 | 60 Hz | 69.8/34.9A | 1.25 | 3 | - | - | - | - | €3,468.72 | |
 |
02018OT3E256T-W40 | 60 Hz | 48.2/24.1A | 1.25 | 3 | 1765 RPM | Three Phase | 20 hp | Rigid Base | €1,996.98 | |
|
02036OT3E254T-W40 | 60 Hz | 48.6/24.3A | 1.25 | 3 | 3535 RPM | Three Phase | 20 hp | Rigid Base | €2,075.40 | |
 |
02518OT3E284T-W40 | 60 Hz | 59/29.5A | 1.25 | 3 | 1770 RPM | Three Phase | 25 hp | Rigid Base | €2,031.73 |
