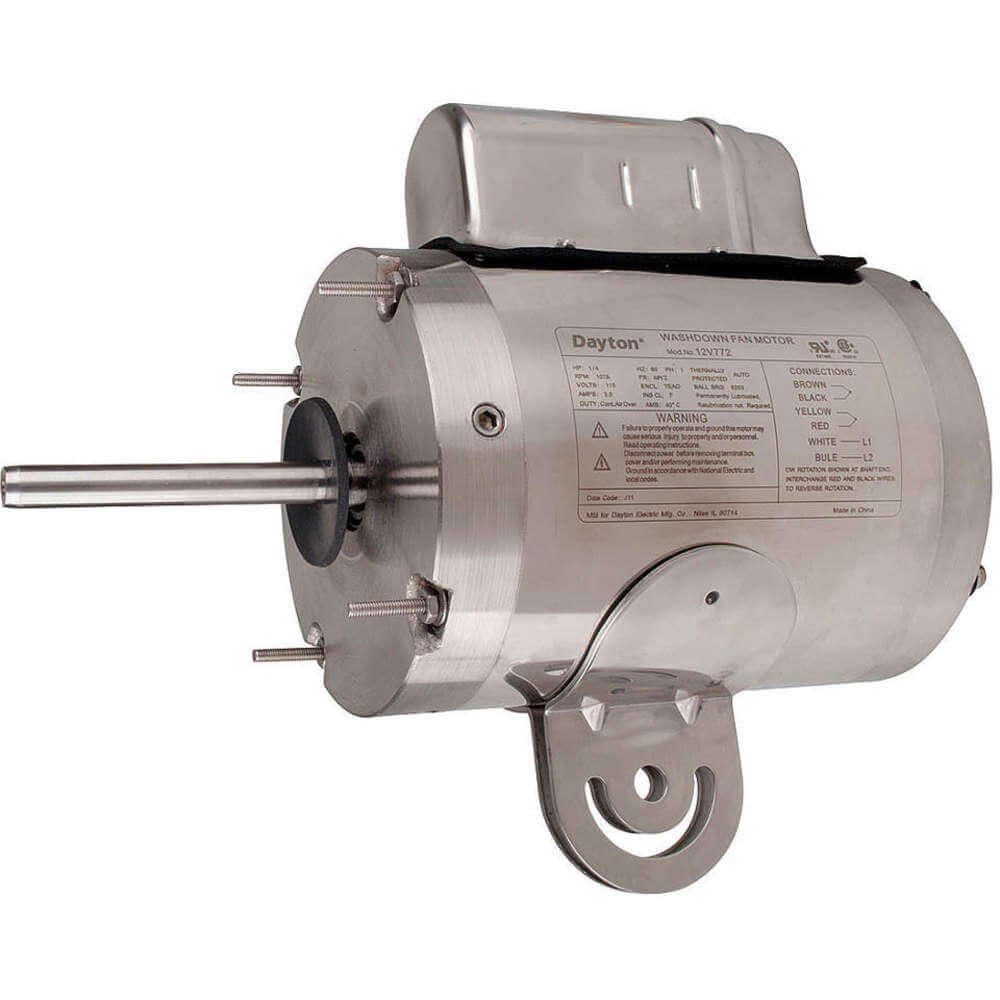

DAYTON 12V772 Washdown Motor Psc Teao 1/4 Hp 1075 Rpm
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€494.55 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient Temp. | 104°F |
| Application | Washdown |
| Bearing Type | Ball |
| Bearings | Ball |
| Body Dia. | 5.63" |
| Bolt Circle Dia. | 5 1/8" |
| Drain Plug | 4 Condensate Drains At Shaft Endshield, Side: 3, 6, 9, 12 O'Clock Positions, Opposite Endshield, Face: 3, 9 O'Clock |
| Drain Plugs | 4 Condensate Drains at Shaft Endshield, Side: 3, 6, 9, 12 O'clock Positions, Opposite Endshield, Face: 3, 9 O'clock |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Endshield Material | Stainless Steel |
| Endshields | Stainless Steel |
| Extended Thru-bolts | Yes |
| Finish | Unfinished |
| Frame | 48YZ |
| Frame Material | Stainless Steel |
| Frequency | 60 Hz |
| Full Load Amps | 3.5A |
| Hp | 1/4 hp |
| Includes | Stud Mounting Hardware: (4) Stainless Steel 10-32 Hex Nuts, (4) Stainless Steel #10 Fender Washers, Spare T-Drain And Plug |
| Insulation Class | Class F |
| Length Less Shaft | 7 9/16" |
| Motor Application | Washdown |
| Motor Design | Capacitor Start, Capacitor Run |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Yoke |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Sub Application | Washdown |
| Motor Thermal Protection | Auto |
| Motor Type | Capacitor Start/Run |
| Mounting Stud Length | 3/4" |
| Mounting Stud Pattern | 3 5/8" x 3 5/8" |
| Mounting Type | Yoke |
| Nameplate Rpm | 1075 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 55.3% |
| Number Of Speeds | 1 |
| Overall Length | 11 9/16" |
| Phase | 1 |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 4 1/16" |
| Shaft Material | Stainless Steel |
| Stud Length | 8.1" |
| Stud Length | #10-32 |
| Stud Pattern | 3 5/8" x 3 5/8" |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V AC |
Shipping Info:
| Ship weight (kg) | 8.93 |
| Ship height (cm) | 27.18 |
| Ship length (cm) | 34.29 |
| Ship width (cm) | 26.16 |
| HS code | 8501404040 |
| Country of Origin | CN |
Product Variants
| Model | Voltage | Hp | Full Load Amps | Nameplate Rpm | Frame | Finish | Phase | Motor Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 11G244 | 115/208-230V AC | 3/4 hp | 7.6/3.8-4A | 1745 RPM | - | - | 1 | Face | €1,067.68 | |
| 11G245 | 115/208-230V AC | 1 hp | 11.2/5.6-5.8A | 1745 RPM | 56C | Unfinished | 1 | Face | €1,117.31 | |
| 11G246 | 115/208-230V AC | 1 1/2 hp | 14.8/7.4-7.6A | 1745 RPM | 56C | - | 1 | Face | €1,202.25 | |
| 11G247 | 208-230V AC | 2 hp | 7.4-8.9A | 3450 RPM | 56C | Unfinished | 1 | Face | €1,309.67 | |
| 11G248 | 208-230V AC | 2 hp | 8.5-9.9A | 1745 RPM | 56C | Unfinished | 1 | - | €1,368.89 | |
| 11G252 | 115/208-230V AC | 1/2 hp | 5/2.5-2.6A | 1745 RPM | 56HC | Unfinished | 1 | - | €1,060.55 | |
| 11G253 | 115/208-230V AC | 3/4 hp | 7.6/3.8-4A | 1745 RPM | 56HC | Unfinished | 1 | Face, Base | €1,115.67 |
