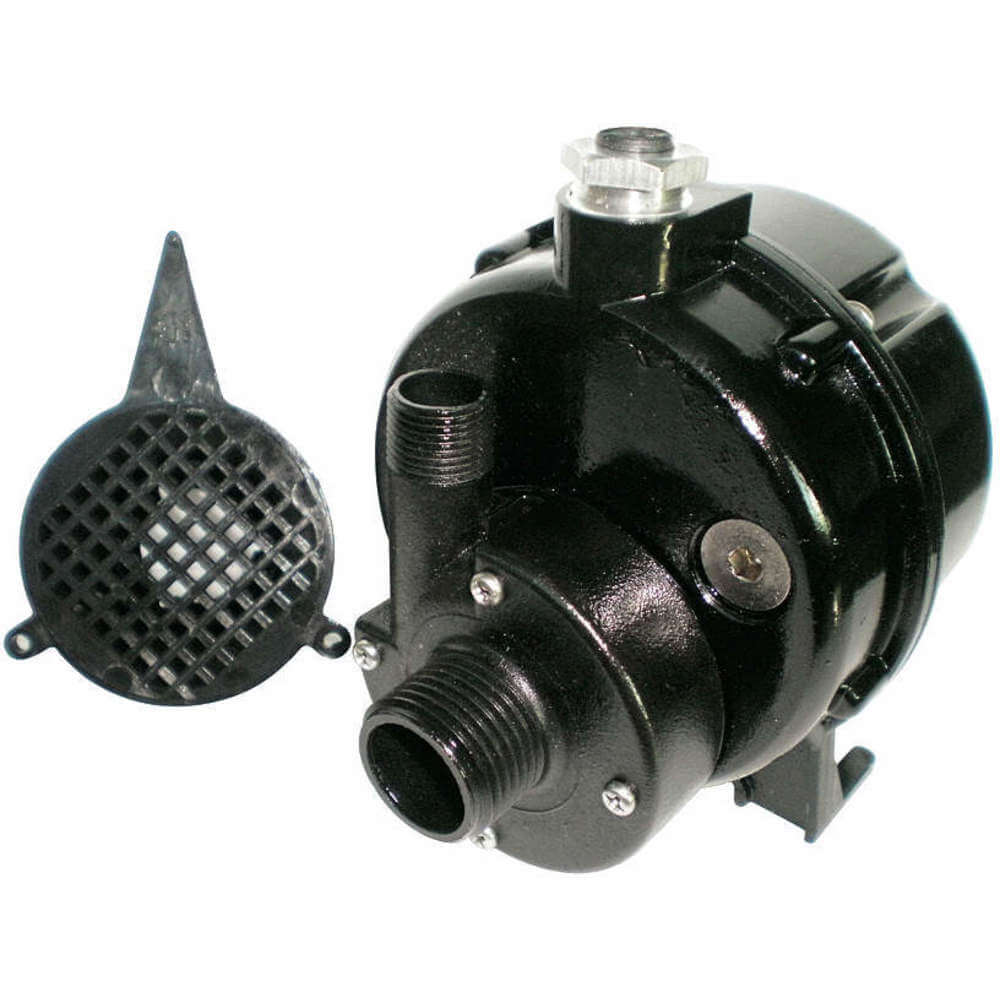

DAYTON 12U596 Pump Submersible 1/90HP
Item: AA4MHLModel: 12U596
7 In Stock
Ships within 2 days via
10.00% off
€185.06 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compact Submersible Pump |
| Amps | 1.4A |
| Application | Condensate Removal And Mache Coolant Recirculation, Displays, Evaporative Coolers, Fountains, Vaporizers |
| Compatible Discharge Hose Size | 1/4" |
| Compatible Discharge Pipe Size | 1/4" |
| Compatible Intake Pipe Size | 1/2" |
| Compatible With Media Type | Oil |
| Cord Length | 6 ft. |
| Discharge Type | NPT |
| Display Qty | 1 |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Electrical Connection Type | Plug In |
| Equivalent Psi | 3.3 |
| Features | Oil Filled |
| Flow Rate @ 1 Ft Of Head (maximum) | 380 GPH |
| Flow Rate @ 10 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 15 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 5 Ft Of Head (maximum) | 248 GPH |
| For Media Type | Oil |
| Frequency | 60 Hz |
| Full Load Amps | 1.4A |
| Full Load Watts | 85 |
| Full Load Watts | 85 W |
| Gph Of Water @ 1 Ft. Of Head | 380 |
| Gph Of Water @ 5 Ft. Of Head | 242 GPH |
| Grade | Grade 56 |
| Housing Material | Zinc Alloy |
| Hp | 1/90 hp |
| Impeller Material | Polyamide Fiber |
| Includes | Filter, Strainer |
| Inlet Size | 1/2" |
| Inlet Type | Screened |
| Intake And Discharge Size | 1/2", 1/4" |
| Intake Type | Screened |
| Max. Feet Of Head | 7.8 ft. |
| Max. Flow Rate | 6.3 GPM |
| Max. Flow Rate @ 1 Ft. | 380 GPH |
| Max. Flow Rate @ 5 Ft. | 242 GPH |
| Max. Gpm For Water | 6.3 |
| Max. Head | 7.8 ft. |
| Max. Operating Pressure | 3.3 psi |
| Media Type | Oil |
| Motor Housing Material | Zinc Alloy |
| Motor Sealing | Oil Filled |
| Motor Type | Shaded Pole |
| Mounting Location | Open Air, Submersible |
| Nameplate Voltage | 115V AC |
| Outlet Rotation | Yes |
| Outlet Size | 1/4" |
| Outlet Type | NPT |
| Overall Height | 4 4/5" |
| Overall Length | 4 4/5" |
| Overall Width | 4.9" |
| Overload Protection | Automatic |
| Overload Thermal Protection | Yes |
| Port Rotation | Yes |
| Pump Housing Material | Zinc Alloy |
| Pump Material | Zinc Alloy |
| Pumping Application | Condensate Removal And Mache Coolant Recirculation, Displays, Evaporative Coolers, Fountains, Vaporizers |
| Rpm | 3400 RPM |
| Rpm (maximum) | 3400 RPM |
| Screen Material | Polyamide fiber |
| Seal Material | Nitrile |
| Seal Type | Oil Seal |
| Shaft Material | Stainless Steel |
| Volute Material | Polyoxymethylene |
| Width | 4.9" |
Shipping Info:
| Ship weight (kg) | 2.36 |
| Ship height (cm) | 12.19 |
| Ship length (cm) | 12.19 |
| Ship width (cm) | 12.45 |
| HS code | 8413702004 |
| Country of Origin | CN |
