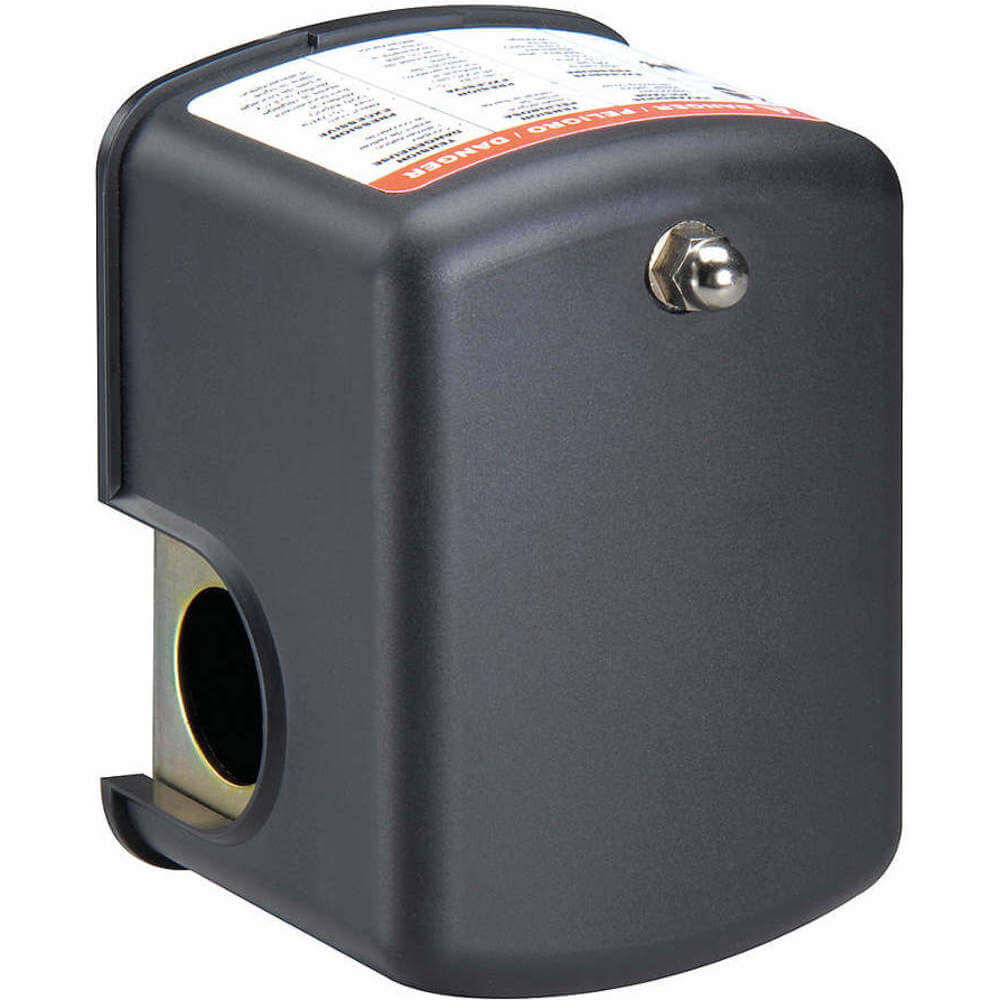

DAYTON 12T082 Pressure Switch Dpst 30/50 Psi 1/4 Fnpt
Item: AA4KUGModel: 12T082
7 In Stock
Ships within 2 days via
10.00% off
€34.29 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Switch |
| Ac Contact Rating | 20 to 17A @ 120/240V |
| Action Type | Standard |
| Actuation Type | Diaphragm |
| Actuator Style | Diaphragm |
| Burst Pressure | 290 psi |
| Contact Form | DPST |
| Differential | 15 psi to 50 psi |
| Differential Pressure - Maximum | 50 psi |
| Differential Pressure - Min. | 15 psi |
| Display Qty | 1 |
| Factory Off Setting | 50 psi |
| Factory On Setting | 30 psi |
| Horsepower @ Single Phase - 240v Ac | 2 hp |
| Hp @ 1 Phase - 120v | 1 1/2 hp |
| Hp @ 1 Phase - 240v | 2 hp |
| Manual Switch Action | None |
| Manufacturer Warranty Length | 1 yr. |
| Nema Enclosure Rating | 1 |
| Number Of Pressure Connection Ports | 1 |
| Operating Temp. Range | -22°F to +250°F |
| Operating Temperature - Maximum | 250°F |
| Operating Temperature - Minimum | -22°F |
| Pressure - Maximum | 100 psi |
| Pressure - Minimum | 10 psi |
| Pressure Connection Type | FNPT |
| Pressure Switch Action Type | Standard |
| Pressure Switch Application | Water Pump |
| Pressure Switch Differential | 15 psi to 50 psi |
| Pressure Switch Range | 10 psi to 100 psi |
| Pressure Switch Unloader | No |
| Product Type | Water And Air Pressure Switch |
| Range | 10 psi to 100 psi |
| Unloader | No Unloader Included |
Shipping Info:
| Ship weight (kg) | 0.38 |
| Ship height (cm) | 7.37 |
| Ship length (cm) | 9.91 |
| Ship width (cm) | 10.16 |
| HS code | 8536509065 |
| Country of Origin | CN |
Product Variants
| Model | Ac Contact Rating | Manual Switch Action | Burst Pressure | Contact Form | Actuation Type | Hp @ 1 Phase - 120v | Hp @ 1 Phase - 240v | Operating Temp. Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 12T081 | 20 to 17A @ 120/240V | None | 290 psi | DPST | Diaphragm | 1 1/2 hp | 2 hp | -22°F to +250°F | €38.65 | |
| 12T083 | 20 to 17A @ 120/240V | None | 290 psi | DPST | Diaphragm | 1 1/2 hp | 2 hp | -22°F to +250°F | €38.65 | |
| 12T084 | 20 to 17A @ 120/240V | Auto/Off/Reset | 290 psi | DPST | Diaphragm | 1 1/2 hp | 2 hp | -22°F to +250°F | €45.67 | |
| 12T085 | 20 to 17A @ 120/240V | Auto/Off/Reset | 290 psi | DPST | Diaphragm | 1 1/2 hp | 2 hp | -22°F to +250°F | €50.89 | |
| 12T086 | 20 to 17A @ 120/240V | Auto/Off/Reset | 290 psi | DPST | Diaphragm | 1 1/2 hp | 2 hp | -22°F to +250°F | €28.27 | |
| 12T087 | 20 to 17A @ 120/240V | Auto/Off | 290 psi | DPST | Diaphragm | 1 1/2 hp | 2 hp | -22°F to +250°F | €44.32 | |
| 12T088 | 20/17A @ 120/240V | Auto/Off | 290 psi | DPST | Diaphragm | 1 1/2 hp | 2 hp | -22°F to +250°F | €44.86 |
