DAYTON 12G596 Combination Shear Brake And Roll 12 In
Get it by Friday, Jul 3
5.00% off
€844.96 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Metal Forming Machine |
| Actuation | Hand Lever |
| Application | Bender, Roller, Shear |
| Bending Length | 12" |
| Bending Length (in.) | 12 |
| Blade | Dual Edge Adjustable And Reversible, Made Of Tool Steel |
| Blade | Dual Edge Adjustable And Reversible, Tool Steel |
| Blade Material | Tool Steel |
| Brake Capacity (steel) | 19 ga. |
| Brake Capacity Aluminum | 16 ga. |
| Brake Capacity Stainless Steel | 24 ga. |
| Brake Type | Box And Pan |
| Capacity Of Mild Steel | 20 |
| Capacity Of Mild Steel (gauge) | 20 |
| Construction | Cast Iron |
| Cutting Width | 12 In. |
| Cutting Width | 12" |
| Die | Carbon Steel, Steel Male, Sizes 1", 2", 3", 4", Continuous Female V Shaped Forming |
| Die Material | Carbon Steel, Steel |
| Die Size | 1", 2", 3", 4" |
| Die Type | Continuous Female V Shaped Forming |
| Finger Width | 1", 2", 3", 4" |
| Finger Width (in.) | 1-4 |
| Included Tool Types | Bender, Roller, Shear |
| Max. Bend Angle | 90° |
| Min. Roller Dia. | 1.54" |
| No. Of Rollers | 3 |
| Power Source | Manual |
| Roller Capacity (steel) | 19 ga. |
| Roller Capacity Aluminum | 15 ga. |
| Roller Capacity Stainless Steel | 24 ga. |
| Shear Capacity (steel) | 19 ga. |
| Shear Capacity Aluminum | 15 ga. |
| Shear Capacity Stainless Steel | 24 ga. |
Shipping Info:
| Ship weight (kg) | 44.78 |
| Ship height (cm) | 40.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 34.29 |
| HS code | 8462290020 |
| Country of Origin | CN |
Product Details:
- Rolls (Min. 1-1/2")
Product Variants
| Product | Model | Cutting Width | Capacity Of Mild Steel | Construction | Finger Width | Blade Material | Price | |
|---|---|---|---|---|---|---|---|---|
 |

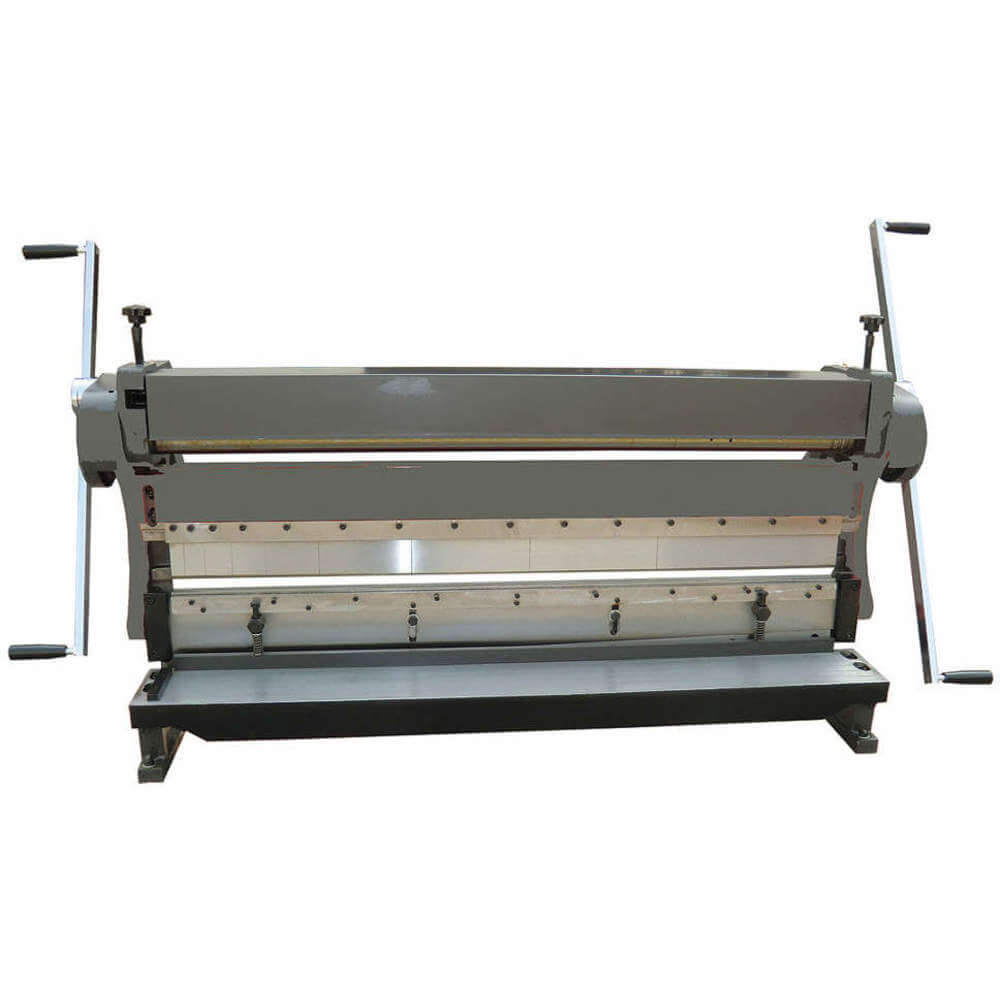

12G597 | 52" | 16 ga. | Cast Iron | 1", 1 1/2", 2", 2 1/2", 4", 7", 9", 10", 15" | Tool Steel | €5,273.95 | |
 |
12G598 | - | 20 | Steel | 1", 2", 3", 8", 10" | - | €635.52 | |
 |
12G599 | - | 12 | Steel | 1", 1 1/8", 1 3/8", 1 9/16", 1 3/4", 2", 3", 4", 6", 7 7/8", 10 5/8" | - | €4,325.53 | |
 |

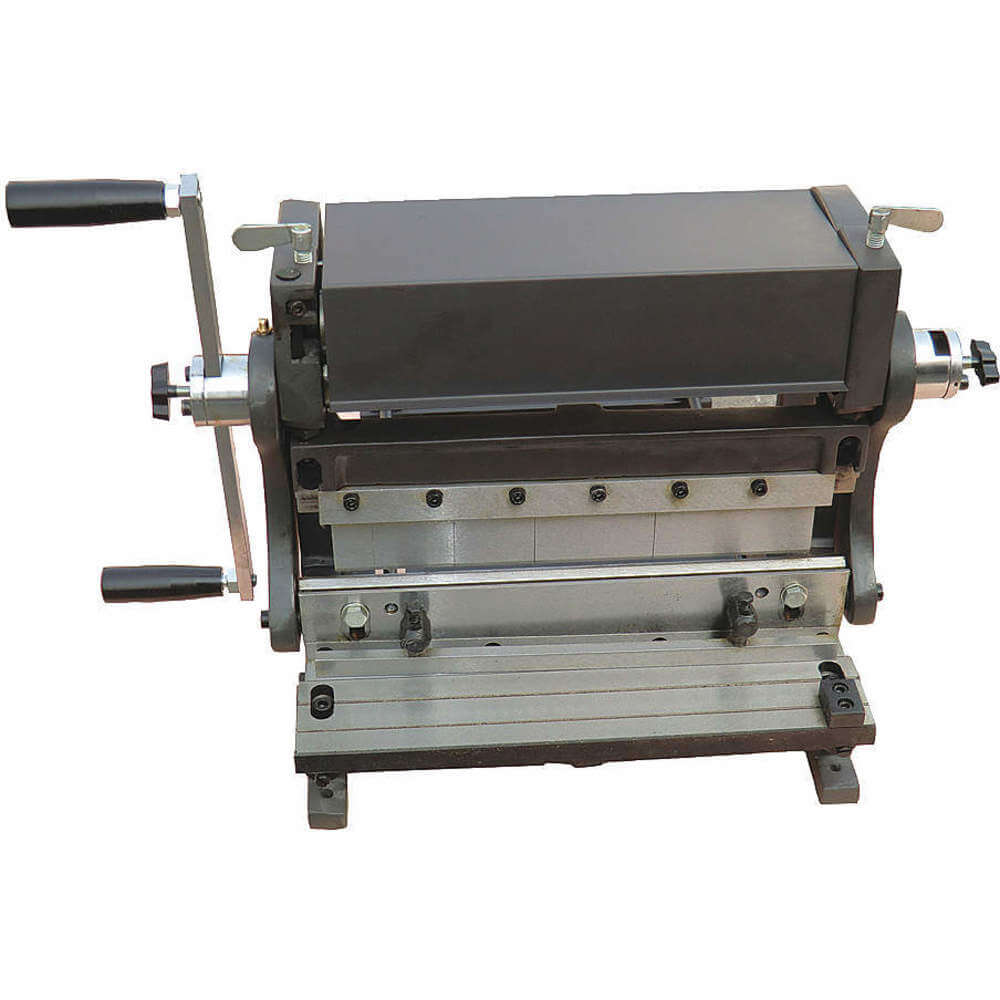

13W869 | 30" | 20 ga. | Cast Iron | - | - | €1,542.76 | |
 |
13W873 | 40 1/2" | 20 | Cast Iron | 1", 1 1/2", 2", 4", 7", 10", 15" | - | €2,335.52 |
