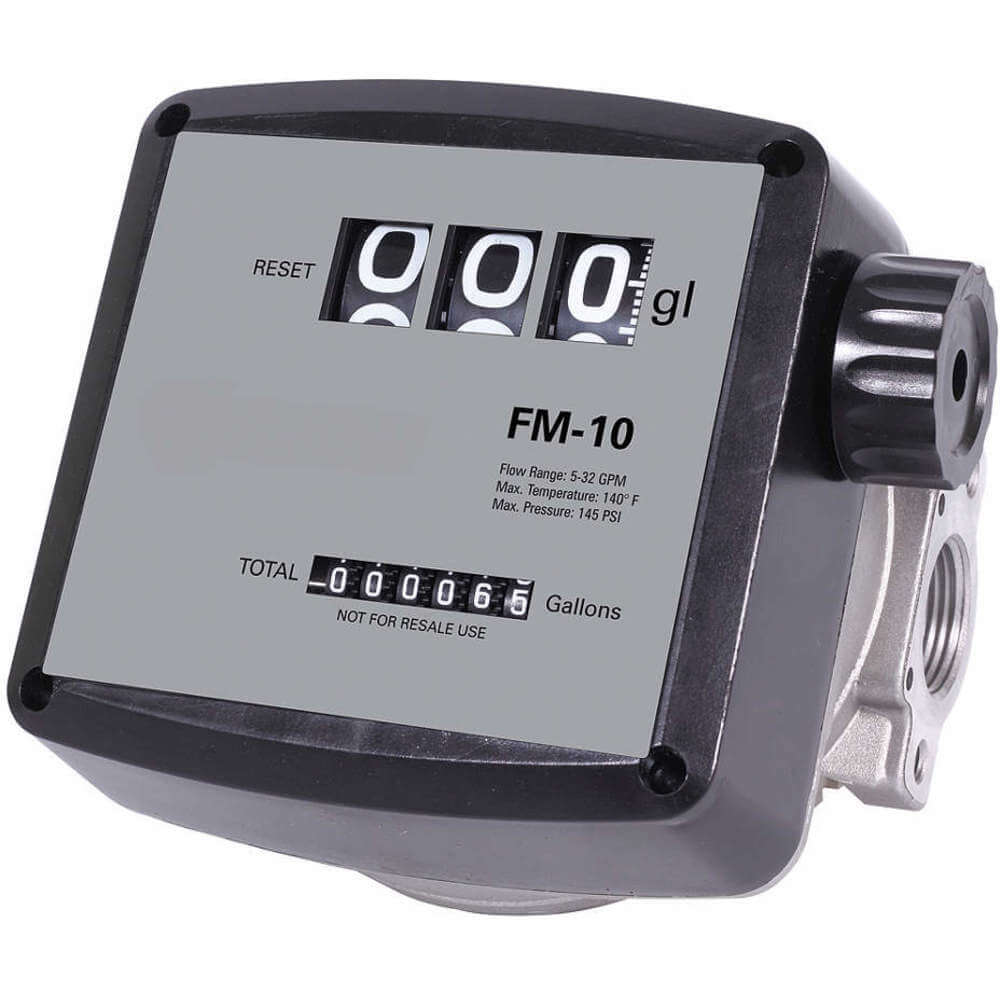

DAYTON 12F730 Flowmeter Mechanical 32 Gpm 1 Inch Fnpt
Item: AA4CXBModel: 12F730
7 In Stock
Ships within 2 days via
10.00% off
€616.90 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flowmeter |
| Accuracy | -1% to +1% |
| Application | For Use With Diesel, Bio Diesel & Light Oils In Gravity Feed Applications Or Use With Electric Fuel Pumps |
| Chamber Material | Butyl Terephthalate |
| Chamber Material | Buthil Tereftalat |
| Compatible Flow Material | Diesel, Oils |
| Connection Size | 1" |
| Connection Type | FNPT |
| Display Type | Mechanical |
| Fitting | 1" FNPT |
| Flow Material | Biodiesel, Diesel, Low To Medium Viscosity Oils |
| Flow Material | Diesel, Biodiesel, and Low to Medium Viscosity Oils |
| Flow Range | 5-32 GPM |
| Flow Rate | 5-32 GPM |
| Flow Rate - Maximum | 32 GPM |
| Flow Rate - Minimum | 5 GPM |
| Flow Rate Range | 5-32 GPM |
| Flowmeter Type | Mechanical |
| Fluid Connection | 1" FNPT |
| Fluid Temp. | -10°F to +140°F |
| For Pipe Size | 1" |
| Gpm Max. | 32 |
| Gpm Max. | 32 GPM |
| Housing Material | Aluminum |
| Length | 7" |
| Manufacturer Warranty Length | 1 yr. |
| Master Totalizer | 99999.9 gal. |
| Max. Flow Rate | 32 GPM |
| Max. Media Temperature | 140°F |
| Max. Operating Pressure | 145 psi |
| Max. Pressure | 145 psi |
| Max. Temp. | 140°F |
| Max. Viscosity | 9400 SUS |
| Media Temperature Range | -10°F to +140°F |
| Media Type | Diesel, Oils |
| Min. Flow Rate | 5 GPM |
| Min. Media Temp. | -10°F |
| Overall Height | 5.1" |
| Overall Length | 7" |
| Overall Width | 6" |
| Pressure Drop - 100% Flow | 3 psi |
| Pressure Drop - 100% Flow (psi) | 3 psi |
| Product Type | Mechanical Flowmeter |
| Seal Material | Buna N |
| Temp. | 140°F |
| Type | Mechanical |
| Viscosity - Maximum | 9400 SUS |
| Wetted Material | Aluminum, Buna N, PBT |
| Width | 6" |
Shipping Info:
| Ship weight (kg) | 2.03 |
| Ship height (cm) | 15.75 |
| Ship length (cm) | 20.83 |
| Ship width (cm) | 16.76 |
| HS code | 9026104000 |
| Country of Origin | IN |
Product Details:
- Resetable Cumulative Totalizer (99.9 Gallons in 1/10 Gallon Increments)
Product Variants
| Product | Model | Connection Size | Min. Flow Rate | Max. Flow Rate | Min. Media Temp. | Max. Viscosity | Connection Type | Max. Operating Pressure | Media Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

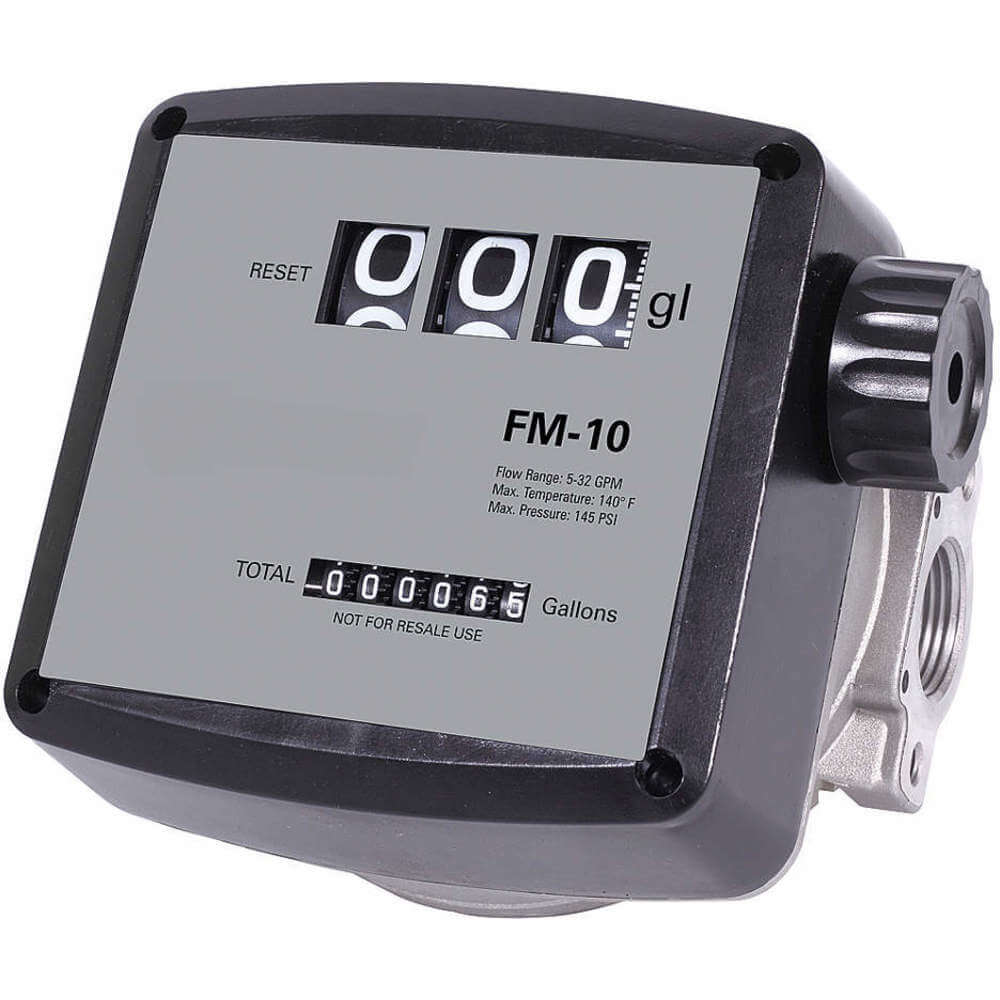

12F736 | 3/4" | 5 GPM | 32 GPM | -10°F | 9400 SUS | FNPT | 145 psi | Diesel, Oils | €481.04 | |
 |
M25-625-L-N-P-A-RA-GA-XX | 5/8" | 0.5 GPM | 25 GPM | 32°F | 32.6 SUS | NPT | - | - | €444.31 | |
 |

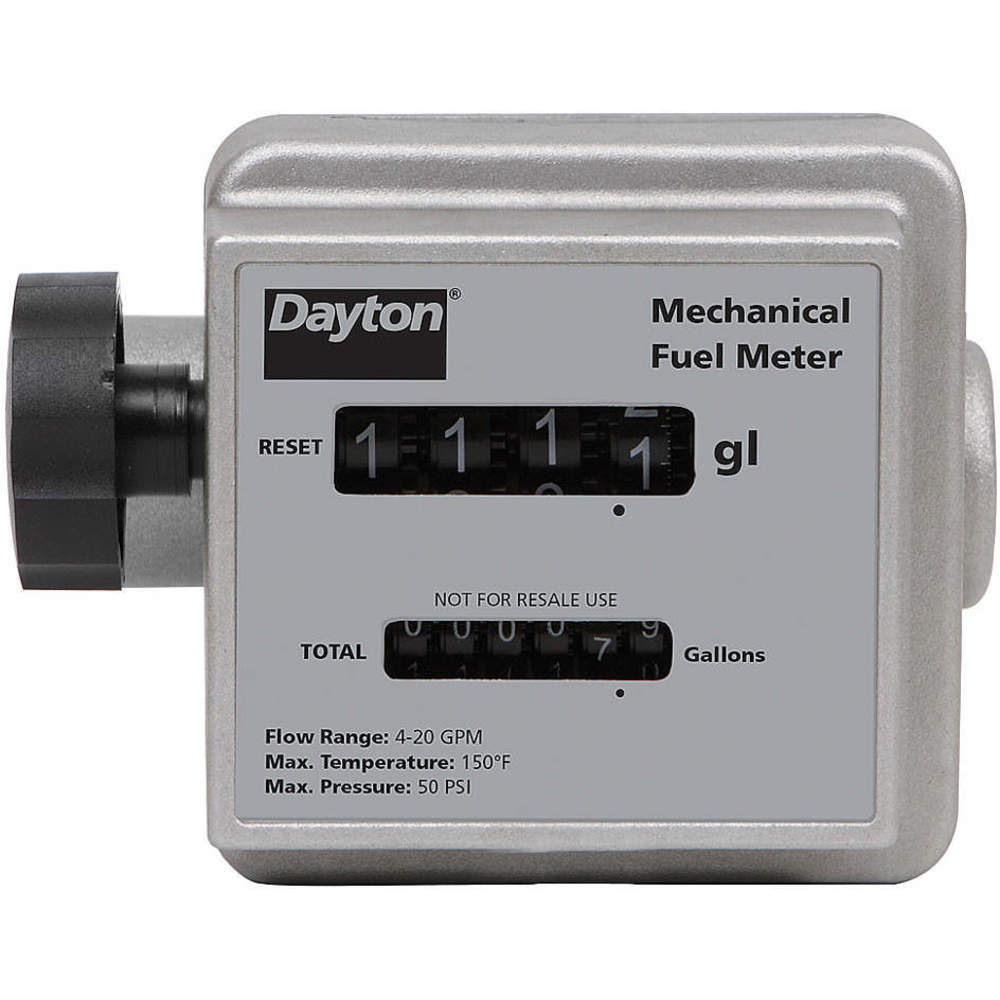

40M286 | 3/4" | 4 GPM | 20 GPM | -10°F | 9088 SUS | FNPT | 50 psi | Diesel, Gasoline, Oils | €424.52 | |
|
40M287 | 1" | 4 GPM | 20 GPM | -10°F | 9088 SUS | FNPT | 50 psi | Diesel, Gasoline, Oils | €424.52 | |
 |
B110-375-1/2 | 1/2" | 0.6 GPM | 3 GPM | -150°F | 150 SUS | NPT | 5000 psi | Oils, Water | €1,506.20 | |
|
B110-500-1/2 | 1/2" | 0.75 GPM | 7.5 GPM | -150°F | 150 SUS | NPT | 5000 psi | Oils, Water | €1,562.63 | |
|
B110-750-1/2 | 1/2" | 2 GPM | 15 GPM | -150°F | 150 SUS | NPT | 5000 psi | Oils, Water | €1,423.21 |
