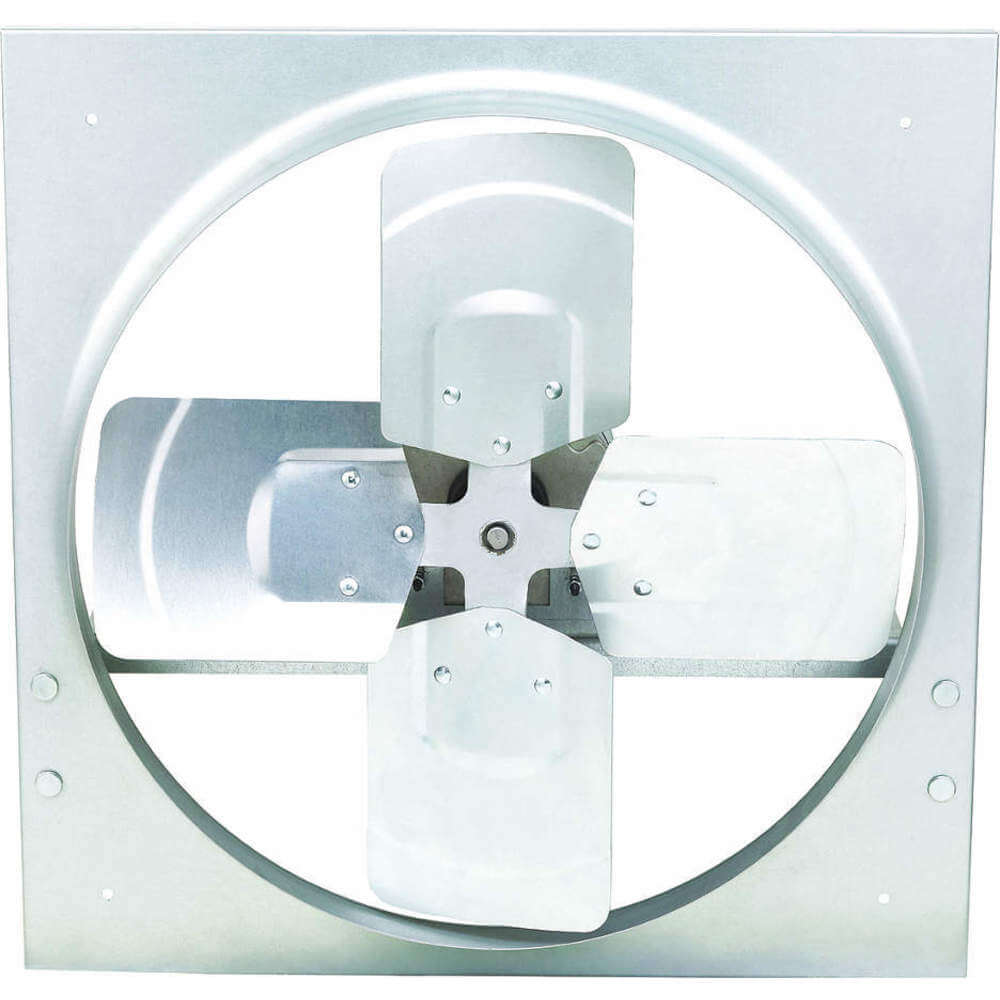

DAYTON 10E043 Exhaust Fan 18 Inch 208-230/460v
Get it by Wednesday, Dec 24
10.00% off
€85.01 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Exhaust Fan |
| Bearing Type | Ball |
| Blade Dia. | 18" |
| Blade Material | Aluminum |
| Cfm @ 0.000-in. Sp | 2979 CFM |
| Cfm @ 0.125-in. Sp | 2810 CFM |
| Cfm @ 0.250-in. Sp | 2608 CFM |
| Cfm @ 0.375-in. Sp | 2374 CFM |
| Dimension A | 22" |
| Dimension B | 7" |
| Dimension C | 3 1/8" |
| Dimension D | 18 1/2" |
| Drive Package Included | No |
| Exhaust/supply Fan Item | Exhaust Fan |
| Exhaust/supply Fan Motor Hp | 1/3 hp |
| Fan Style | Panel |
| Flange Width | 1" |
| For Use With | General Ventilation Applications |
| Frame Finish | Galvanized |
| Frame Material | Steel |
| Full Load Amps | 1.4-1.5/0.8A |
| Guard Type | Intake |
| Height | 22" |
| Housing Material | Steel |
| Includes Drive Package With Motor | Yes |
| Includes Motor | Yes |
| Max. Ambient Temp. | 104°F |
| Max. Depth | 19" |
| Max. Exhaust Airflow @ 0.125 In Sp | 2860 CFM |
| Max. Noise Level @ 0.000 In Sp @ 5 Ft | 22 sones |
| Maximum Exhaust Airflow @ 0.000 In Sp | 3072 CFM |
| Maximum Exhaust Airflow @ 0.250 In Sp | 2527 CFM |
| Maximum Exhaust Airflow @ 0.375 In Sp | 2223 CFM |
| Maximum Noise Level | 22 sones |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Horsepower | 1/3 hp |
| Motor Hp | 333/1000 hp |
| Motor Insulation | Class B |
| Motor Insulation Class | Class B |
| Motor Speed | 1590 RPM |
| Motor Type | 3-Phase |
| Mounting Orientation | Horizontal, Vertical |
| Mounting Position | Horizontal/Vertical |
| Nameplate Voltage | 208-230/460V AC |
| Noise Level @ 0.000 In Sp @ 5 Ft | 22 sones |
| Number Of Blades | 4 |
| Overall Depth | 19" |
| Overall Height | 22" |
| Overall Width | 22" |
| Phase | 3 |
| Propeller Dia. | 18" |
| Propeller Material | Aluminum |
| Speed Control | No |
| Type | Commercial Direct Drive, Industrial |
| Ventilation Type | Exhaust |
| Venturi Depth | 2 1/2" , 2 5/8" |
| Voltage | 208-230/460V |
| Wattage | 248 W |
| Width | 22" |
Shipping Info:
| Ship weight (kg) | 7.34 |
| Ship height (cm) | 35.31 |
| Ship length (cm) | 57.91 |
| Ship width (cm) | 57.66 |
| HS code | 8414596090 |
| Country of Origin | CN |
Product Variants
| Product | Model | Cfm @ 0.000-in. Sp | Housing Material | Voltage | Phase | Motor Hp | Drive Type | Motor Speed | Cfm @ 0.125-in. Sp | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
10D973 | 3194 CFM | Steel | 115/230V | 1 | 333/1000 hp | Direct Drive | 1750 RPM | 3007 CFM | €739.30 | |
|
10D974 | 3194 CFM | Steel | 208-230/460V | 3 | 333/1000 hp | - | 1700 RPM | 3007 CFM | €1,026.22 | |
 |
10D985 | 3354 CFM | Steel | 115/230V | 1 | 333/1000 hp | Direct Drive | 1706 RPM | 3097 CFM | €1,282.20 | |
|
10D986 | 3354 CFM | Steel | 208-230/460V | 3 | 333/1000 hp | Clutched Gear System, Direct | 1725 RPM | 3097 CFM | €1,025.15 | |
|
10E042 | 2979 CFM | Galvanized | 115/230V | 1 | 1/3 hp | Direct Drive | 1657 RPM | 2810 CFM | €655.23 |
