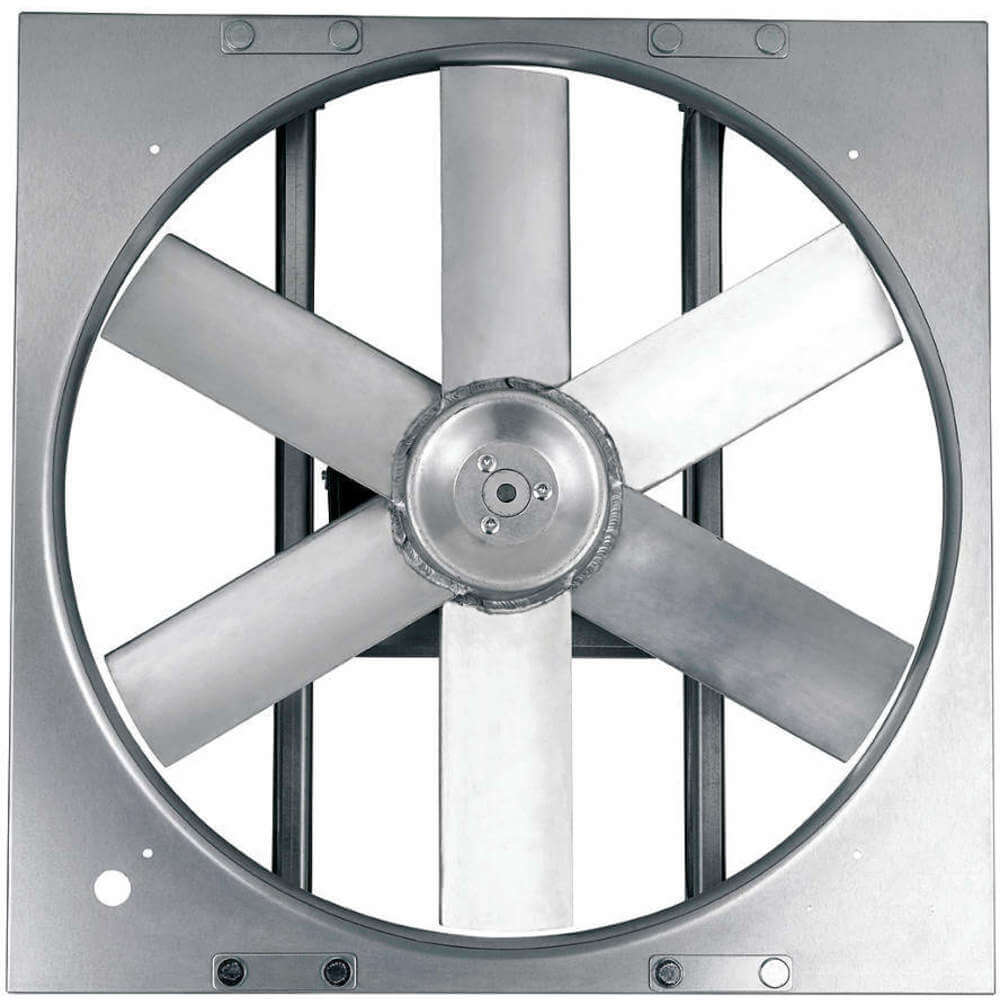

DAYTON 10D993 Exhaust Fan 30 Inch 208-230/460v
Get it by Tuesday, Dec 23
10.00% off
€1,715.36 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Exhaust Fan |
| Bearing Type | Ball |
| Blade Dia. | 30" |
| Blade Material | Aluminum |
| Cfm @ 0.000-in. Sp | 9308 CFM |
| Cfm @ 0.125-in. Sp | 8461 CFM |
| Cfm @ 0.250-in. Sp | 7556 CFM |
| Cfm @ 0.375-in. Sp | 6428 CFM |
| Cfm @ 0.500-in. Sp | 4998 CFM |
| Dimension A | 34" |
| Dimension B | 8 1/2" |
| Dimension C | 2" |
| Dimension D | 30 1/2" |
| Drive Package Included | No |
| Exhaust/supply Fan Item | Exhaust Fan |
| Exhaust/supply Fan Motor Hp | 3/4 hp |
| Fan Style | Panel |
| Flange Width | 1" |
| For Use With | General Ventilation Applications |
| Frame Finish | Galvanized |
| Frame Material | Steel |
| Full Load Amps | 3.2-3.4/1.7A |
| Height | 34" |
| Housing Material | Steel |
| Includes Drive Package With Motor | Yes |
| Includes Motor | Yes |
| Max. Ambient Temp. | 104°F |
| Max. Depth | 10 1/2" |
| Max. Exhaust Airflow @ 0.125 In Sp | 8481 CFM |
| Max. Noise Level @ 0.000 In Sp @ 5 Ft | 26 sones |
| Maximum Exhaust Airflow @ 0.000 In Sp | 9117 CFM |
| Maximum Exhaust Airflow @ 0.250 In Sp | 7675 CFM |
| Maximum Exhaust Airflow @ 0.375 In Sp | 6678 CFM |
| Maximum Noise Level | 26 sones |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Horsepower | 3/4 hp |
| Motor Hp | 3/4 hp |
| Motor Insulation | Class B |
| Motor Insulation Class | Class B |
| Motor Speed | 1138 RPM |
| Mounting Orientation | Horizontal, Vertical |
| Mounting Position | Horizontal/Vertical |
| Nameplate Voltage | 208-230/460V AC |
| Noise Level @ 0.000 In Sp @ 5 Ft | 26 sones |
| Number Of Blades | 6 |
| Overall Depth | 10 1/2" |
| Overall Height | 34" |
| Overall Width | 34" |
| Phase | 3 |
| Propeller Dia. | 30" |
| Propeller Material | Aluminum |
| Speed Control | No |
| Type | Industrial Direct Drive |
| Ventilation Type | Exhaust |
| Venturi Depth | 4 1/2" , 4 1/4" |
| Voltage | 208-230/460V |
| Wattage | 559 W |
| Width | 34" |
Shipping Info:
| Ship weight (kg) | 29.7 |
| Ship height (cm) | 86.36 |
| Ship length (cm) | 26.67 |
| Ship width (cm) | 86.36 |
| HS code | 8414596090 |
| Country of Origin | CN |
Product Variants
| Product | Model | Blade Dia. | Cfm @ 0.000-in. Sp | Voltage | Phase | Height | Overall Width | Motor Speed | Cfm @ 0.125-in. Sp | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
10D981 | 30" | 9203 CFM | 115/230V | 1 | 34" | 34" | 1150 RPM | 8505 CFM | €1,205.90 | |
|
10D982 | 30" | 9203 CFM | 208-230/460V | 3 | 34" | 34" | 1150 RPM | 8505 CFM | €1,435.11 | |
|
10D992 | 30" | 9308 CFM | 115/230V | 1 | 34" | 34" | 1128 RPM | 8461 CFM | €1,910.32 | |
 |

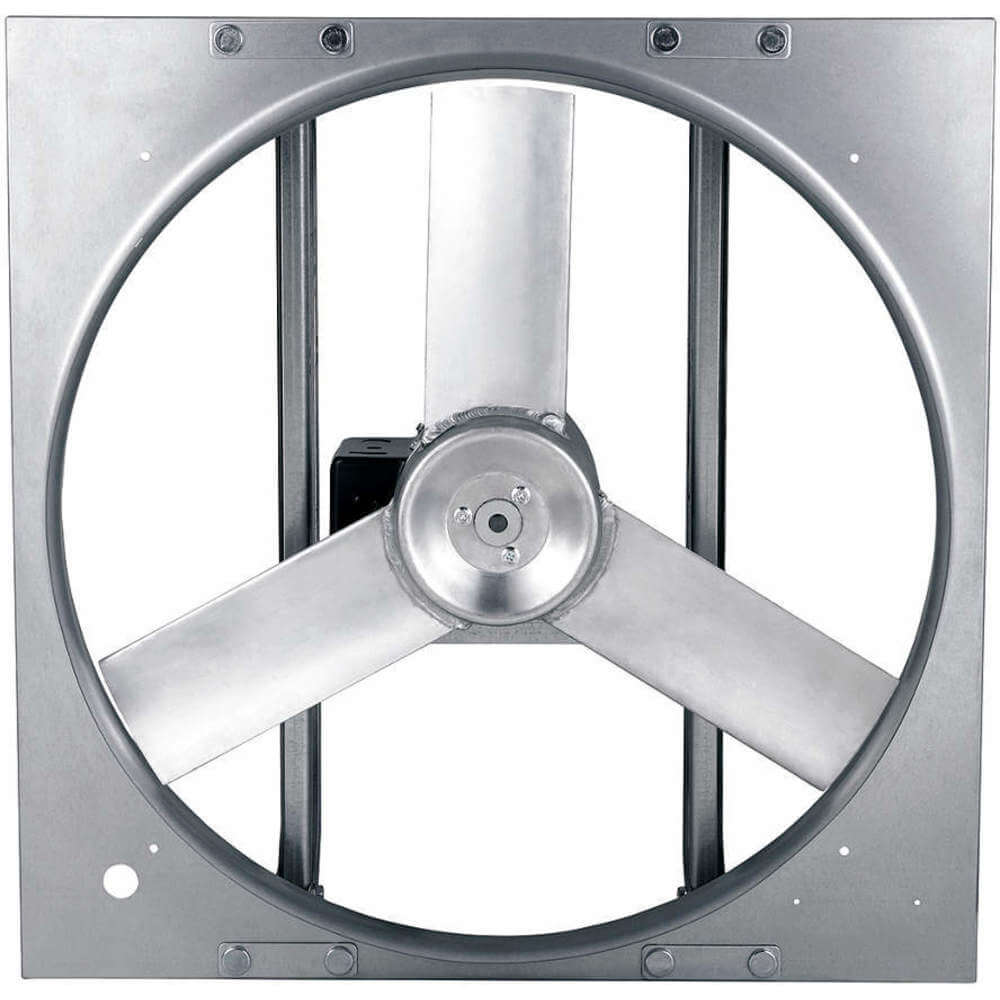

10D994 | 36" | 12363 CFM | 208-230/460V | 3 | 40" | 40" | 1150 RPM | 10425 CFM | €2,035.28 |
