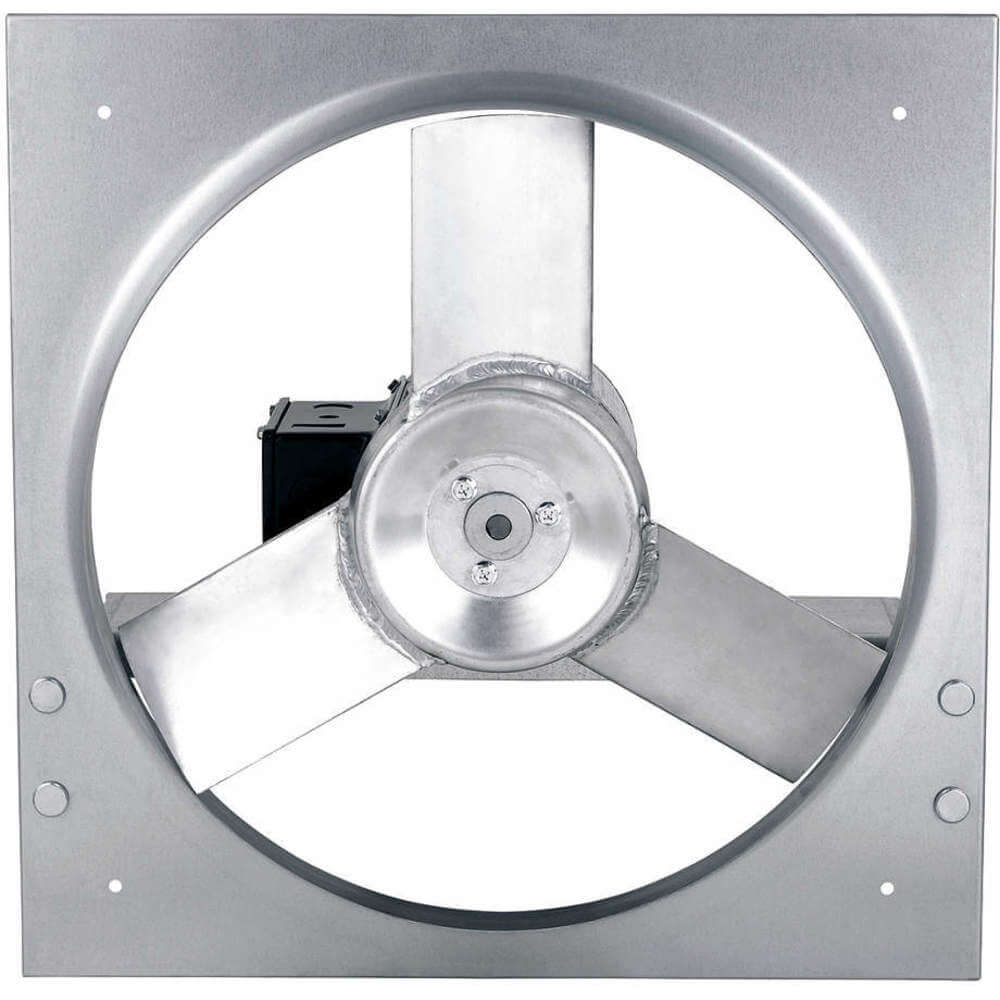

DAYTON 10D984 Exhaust Fan 16 Inch 208-230/460v
Get it by Wednesday, Dec 24
10.00% off
€1,010.30 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Exhaust Fan |
| Bearing Type | Ball |
| Blade Dia. | 16" |
| Blade Material | Aluminum |
| Cfm @ 0.000-in. Sp | 2476 CFM |
| Cfm @ 0.125-in. Sp | 2288 CFM |
| Cfm @ 0.250-in. Sp | 2061 CFM |
| Cfm @ 0.375-in. Sp | 1769 CFM |
| Dimension A | 20" |
| Dimension B | 7" |
| Dimension C | 2 5/8" |
| Dimension D | 16 3/8" |
| Drive Package Included | No |
| Exhaust/supply Fan Item | Exhaust Fan |
| Exhaust/supply Fan Motor Hp | 1/4 hp |
| Fan Style | Panel |
| Flange Width | 1" |
| For Use With | General Ventilation Applications |
| Frame Finish | Galvanized |
| Frame Material | Steel |
| Full Load Amps | 1.1-1.2/0.6A |
| Height | 20" |
| Housing Material | Steel |
| Includes Drive Package With Motor | Yes |
| Includes Motor | Yes |
| Max. Ambient Temp. | 104°F |
| Max. Depth | 9 5/8" |
| Max. Exhaust Airflow @ 0.125 In Sp | 2693 CFM |
| Max. Noise Level @ 0.000 In Sp @ 5 Ft | 17.9 sones |
| Maximum Exhaust Airflow @ 0.000 In Sp | 2926 CFM |
| Maximum Exhaust Airflow @ 0.250 In Sp | 2417 CFM |
| Maximum Exhaust Airflow @ 0.375 In Sp | 2184 CFM |
| Maximum Noise Level | 17.9 sones |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Horsepower | 1/4 hp |
| Motor Hp | 1/4 hp |
| Motor Insulation | Class B |
| Motor Insulation Class | Class B |
| Motor Speed | 1747 RPM |
| Mounting Orientation | Horizontal, Vertical |
| Mounting Position | Horizontal/Vertical |
| Nameplate Voltage | 208-230/460V AC |
| Noise Level @ 0.000 In Sp @ 5 Ft | 17.9 sones |
| Number Of Blades | 3 |
| Overall Depth | 9 5/8" |
| Overall Height | 20" |
| Overall Width | 20" |
| Phase | 3 |
| Propeller Dia. | 16" |
| Propeller Material | Aluminum |
| Sones @ 0.000-in. Sp @ 5 Ft. | 14.1 sones |
| Sones @ 0.125-in. Sp @ 5 Ft. | 14.4 sones |
| Speed Control | No |
| Type | Industrial Direct Drive |
| Ventilation Type | Exhaust |
| Venturi Depth | 2 3/4" , 3" |
| Voltage | 208-230/460V |
| Wattage | 186 W |
| Width | 20" |
Shipping Info:
| Ship weight (kg) | 13.4 |
| Ship height (cm) | 50.8 |
| Ship length (cm) | 24.45 |
| Ship width (cm) | 50.8 |
| HS code | 8414596090 |
| Country of Origin | CN |
Product Variants
| Product | Model | Cfm @ 0.000-in. Sp | Voltage | Phase | Motor Speed | Cfm @ 0.250-in. Sp | Full Load Amps | Max. Depth | Number Of Blades | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
10D972 | 2483 CFM | 115/230V | 1 | 1620 RPM | 2147 CFM | 3.1/1.6A | 10 1/8" | 4 | €609.07 | |
 |

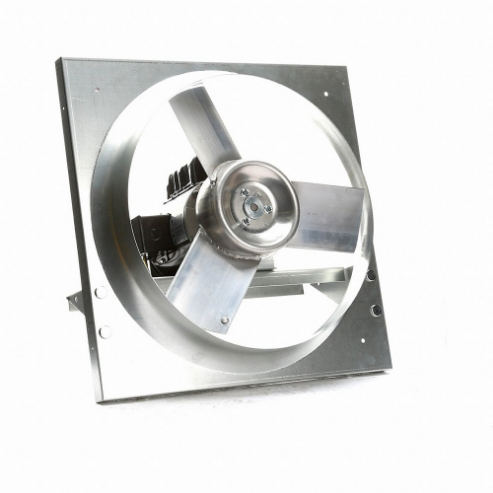

10D983 | 2476 CFM | 115/230V | 1 | 1743 RPM | 2061 CFM | 3.1/1.6A | 10 1/8" | 3 | €1,122.56 | |
 |

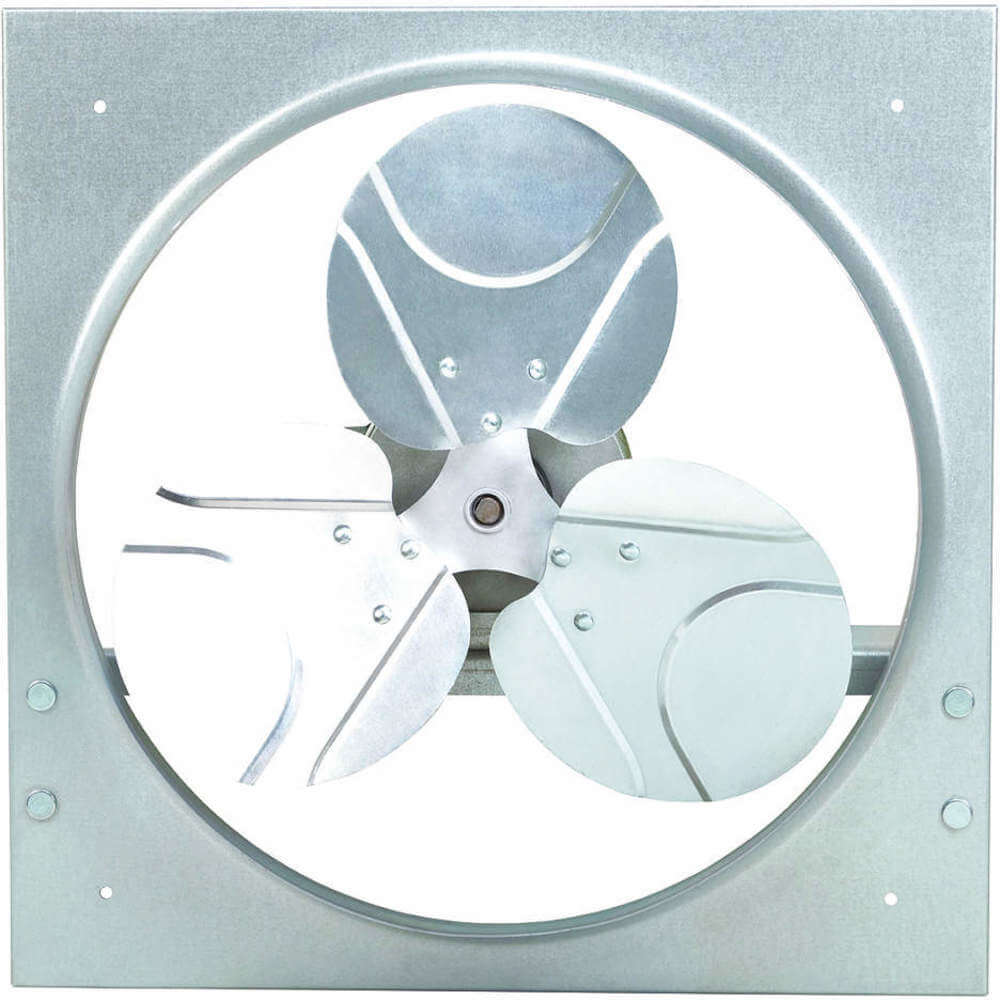

10E040 | 2432 CFM | 115/230V | 1 | 1780 RPM | 1945 CFM | 3.1/1.6A | 15 1/2" | 3 | €22.52 |
