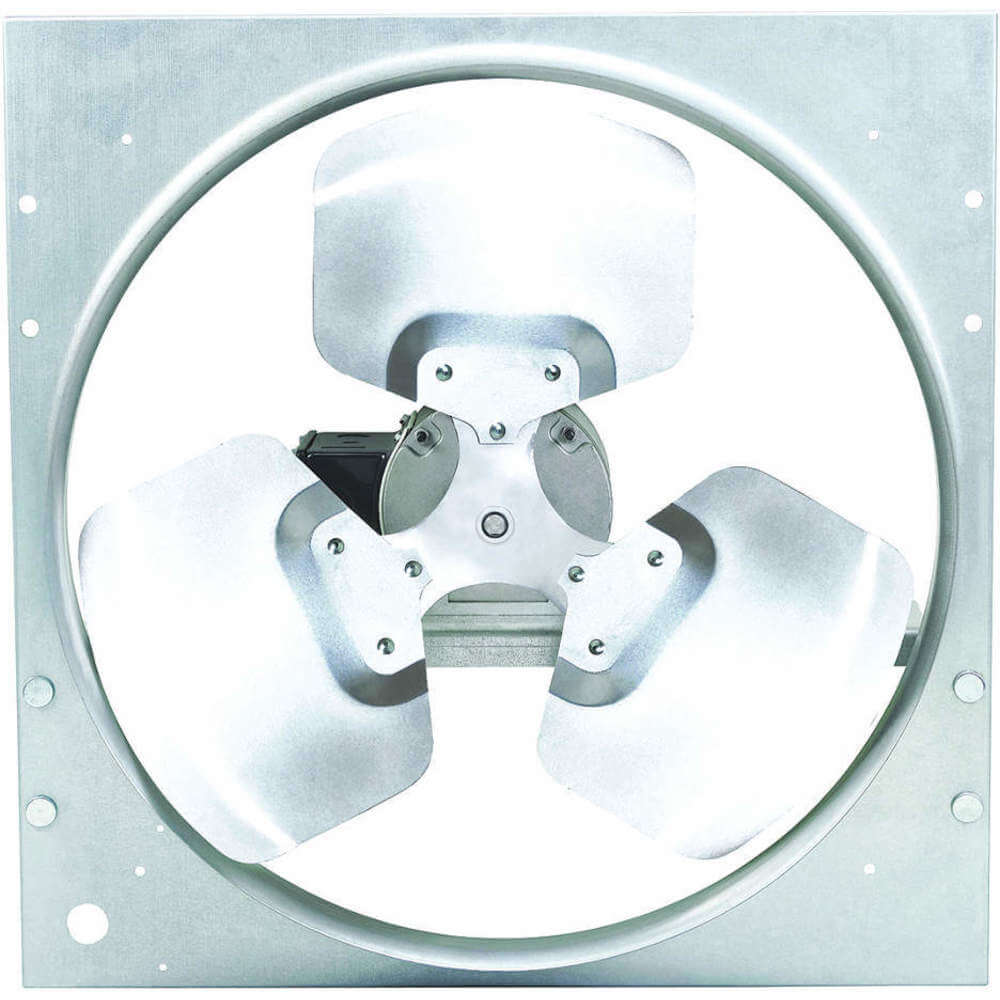

DAYTON 10D976 Exhaust Fan 20 Inch 115/230v
Get it by Wednesday, Dec 24
10.00% off
€856.67 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Exhaust Fan |
| Assembled | Assembled |
| Bearing Type | Ball |
| Blade Dia. | 20" |
| Blade Material | Aluminum |
| Cfm @ 0.000-in. Sp | 4509 CFM |
| Cfm @ 0.125-in. Sp | 4112 CFM |
| Cfm @ 0.250-in. Sp | 3590 CFM |
| Cfm @ 0.375-in. Sp | 2888 CFM |
| Dimension A | 24" |
| Dimension B | 7 1/2" |
| Dimension C | 5 3/4" |
| Dimension D | 20 5/8" |
| Drive Package Included | No |
| Drive Type | Direct Drive |
| Duct Dia. | 20 1/2" |
| Duct Shape | Round |
| Electrical Connection | Hardwired |
| Exhaust/supply Fan Item | Exhaust Fan |
| Exhaust/supply Fan Motor Hp | 1/2 hp |
| Fan Style | Panel |
| Flange Width | 1" |
| For Use With | General Ventilation Applications |
| Frame Finish | Galvanized |
| Frame Material | Steel |
| Full Load Amps | 4.9/2.5A |
| Height | 24" |
| Housing Material | Steel |
| Includes Dehumidistat | No |
| Includes Drive Package With Motor | Yes |
| Includes Motor | Yes |
| Max. Ambient Temp. | 104°F |
| Max. Depth | 13 1/4" |
| Max. Exhaust Airflow @ 0.125 In Sp | 4134 CFM |
| Max. Noise Level @ 0.000 In Sp @ 5 Ft | 18 sones |
| Maximum Exhaust Airflow @ 0.000 In Sp | 4495 CFM |
| Maximum Exhaust Airflow @ 0.250 In Sp | 3562 CFM |
| Maximum Exhaust Airflow @ 0.375 In Sp | 2926 CFM |
| Maximum Noise Level | 18 sones |
| Method Of Construction | Stamped |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Horsepower | 1/2 hp |
| Motor Hp | 1/2 hp |
| Motor Insulation | Class B |
| Motor Insulation Class | Class B |
| Motor Speed | 1150 RPM |
| Mounting Location | Wall |
| Mounting Orientation | Horizontal, Vertical |
| Mounting Position | Horizontal/Vertical |
| Nameplate Voltage | 115/230V AC |
| Noise Level @ 0.000 In Sp @ 5 Ft | 18 sones |
| Number Of Blades | 3 |
| Number Of Speeds | 1 |
| Overall Depth | 13 1/4" |
| Overall Height | 24" |
| Overall Width | 24" |
| Phase | 1 |
| Propeller Dia. | 20" |
| Propeller Material | Aluminum |
| Sones @ 0.125-in. Sp @ 5 Ft. | 12.7 sones |
| Speed Control | No |
| Speed Controllable | No |
| Type | Commercial Direct Drive |
| Vent Design | Ductless |
| Ventilation Type | Exhaust |
| Venturi Depth | 3 1/2" |
| Voltage | 115/230V |
| Wattage | 373 W |
| Width | 24" |
Shipping Info:
| Ship weight (kg) | 17.39 |
| Ship height (cm) | 60.96 |
| Ship length (cm) | 33.66 |
| Ship width (cm) | 60.96 |
| HS code | 8414596090 |
| Country of Origin | CN |
Product Variants
| Product | Model | Cfm @ 0.000-in. Sp | Voltage | Phase | Motor Hp | Motor Speed | Cfm @ 0.125-in. Sp | Cfm @ 0.250-in. Sp | Full Load Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
10D975 | 3717 CFM | 115/230V | 1 | 333/1000 hp | 1172 RPM | 3319 CFM | 2803 CFM | 3.4/1.7A | €862.04 | |
|
10D977 | 4509 CFM | 208-230/460V | 3 | 1/2 hp | 1125 RPM | 4112 CFM | 3590 CFM | 2-2.2/1.1A | €875.45 | |
 |
10D987 | 4557 CFM | 115/230V | 1 | 3/4 hp | 1700 RPM | 4254 CFM | 3919 CFM | 8.1/1/4A | €1,343.28 | |
|
10D988 | 4557 CFM | 208-230/460V | 3 | 3/4 hp | 1753 RPM | 4254 CFM | 3919 CFM | 2.9-3/1.5A | €1,258.45 |
