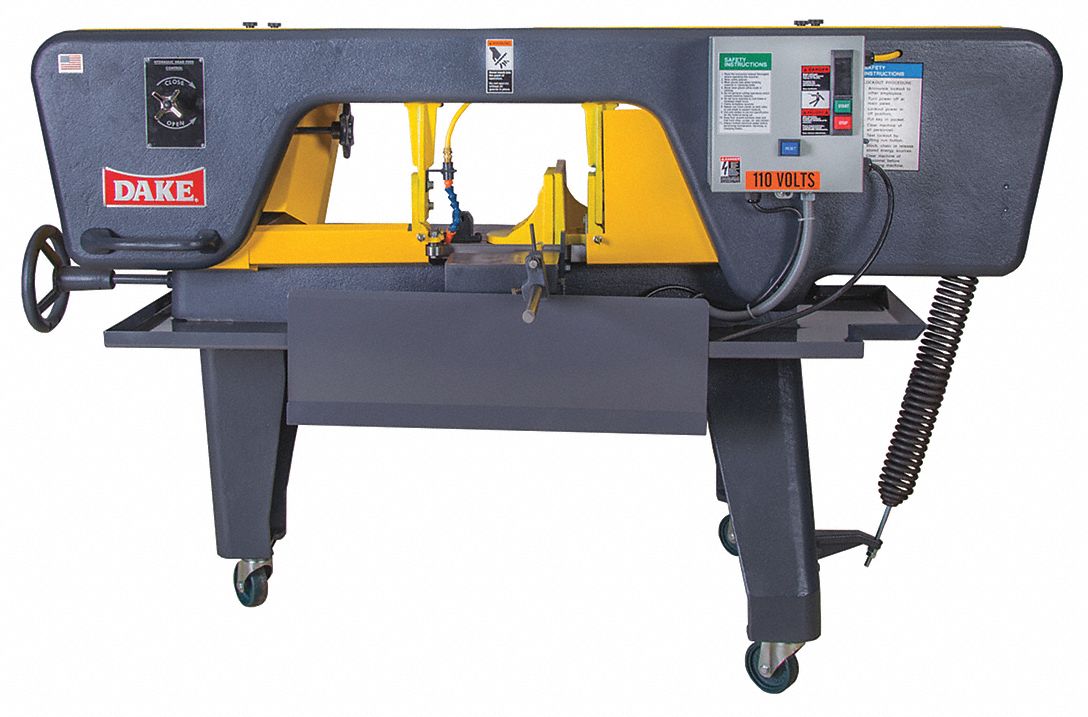

DAKE CORPORATION 985017-1 Band Saw, Corded, Horizontal, Semi Automatic
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Band Saw |
| Amps | 20A |
| Amps Ac | 20A |
| Band Saw Operation | Semi-Automatic |
| Band Saw Type | Horizontal |
| Band Type | Horizontal |
| Blade Dia. | 16" |
| Blade Length | 137" |
| Blade Thickness | 0.035" |
| Blade Wheels Dia. | 16" |
| Cutting Capacity | 10" |
| Cutting Capacity Square | 7.875" |
| Cutting Capacity Square | 7 7/8" |
| Dimension | 11" x 18" |
| Features | Automatic Shutoff At End Of Cut, Blade Feeds Into The Material By Gravity, Chip Brush, Gear Box For Ease Of Changing Speeds, Hydraulic Variable Head Feed Control, Low Voltage Switches |
| Frequency | 60 Hz |
| Hp | 1 hp |
| Material Application | Metal |
| Max. Blade Length | 137" |
| Max. Blade Width | 1" |
| Min. Blade Length | 137" |
| Min. Blade Width | 137" |
| Miter Angle Range | 0° to 45° Right |
| Number Of Speed Settings | 4 |
| Overall Depth | 29" |
| Overall Height | 64" |
| Overall Width | 70" |
| Phase | 1 |
| Power Source | Corded |
| Rectangular Cutting Capacity - Horizontal | 5" x 18" |
| Round Cutting Capacity - Horizontal | 10" |
| Sfpm Range | 50 SFPM to 270 SFPM |
| Table Dimensions | 11" x 18" |
| Voltage | 120/220V AC |
Shipping Info:
| Ship height (cm) | 162.56 |
| Ship length (cm) | 73.66 |
| Ship width (cm) | 177.8 |
| Country of Origin | US |
