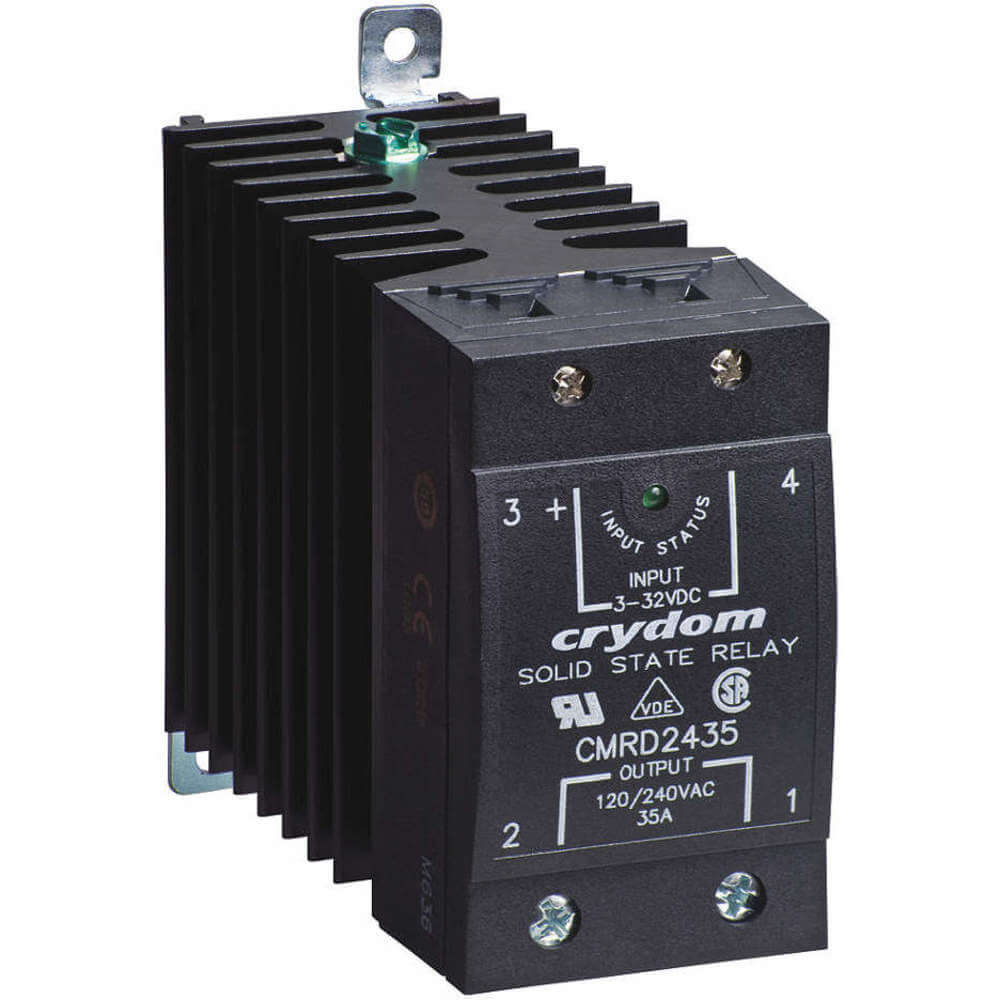

CRYDOM CMRD4845 DIN Mount Solid State Relay Input VDC
Item: AF6NYZModel: CMRD4845Cross Ref: 1DTP6
7 In Stock
Ships within 2 days via
10.00% off
€194.47 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | DIN Mount Solid State Relay |
| Amps | 45A |
| Body Depth | 4.3" |
| Body Height | 3" |
| Body Width | 1.75" |
| Case Color | Black |
| Current Type | Dc |
| Electrical Connection | Cage Type |
| Electrical Connection Type | Screw |
| Finger Safe | Yes |
| Frequency | 50/60 Hz |
| Heat Sink | Integral |
| Includes | Integral Heat Sink |
| Input Amps | 30 mA |
| Input Power Consumption (burden) | 0.1 W |
| Input Voltage | 4-32V DC |
| Insulation Resistance | 1000 M ohms |
| Max. Input Voltage | 32V |
| Max. Input Volts | 32 |
| Max. Output Amps | 45A |
| Max. Output Amps W/heat Sink | 45A |
| Max. Output Current Without Heat Sink | 45A |
| Max. Output Voltage | 530V |
| Max. Output Volts | 530 |
| Max. Output W/heat Sink | 45A |
| Max. Output W/heat Sink (a) | 45 |
| Maximum Capacitance | 8 pF |
| Maximum Operating Temperature | 176°F |
| Maximum Output Current With Heat Sink | 45A |
| Min. Input Voltage | 4V |
| Min. Input Volts | 4 |
| Min. Output Voltage | 48 |
| Min. Output Volts | 48 |
| Minimum Operating Temperature | -40°F |
| Mounting Style | Din, Flange |
| Output Switching Mode | Zero Crossing |
| Output Voltage | 48-530V AC |
| Overall Depth | 4.3" |
| Overall Height | 4.3" |
| Phase | 1 |
| Power Factor | 0.5 |
| Relay Mounting Style | Din-Rail |
| Relay Turns On At | Zero Crossing |
| Response Time | 0.5 ms |
| Series | CMR48 Series |
| Status Indicator | Green LED Indicator |
| Switch Component Type | SCR |
| Switch Configuration | Form A |
| Switch Type | Silicon Controlled Rectifier |
| Turns On At | Zero Crossing |
| Turns On At | Zero Cross |
| Voltage/current Type | AC Output |
Shipping Info:
| Ship weight (kg) | 0.54 |
| Ship height (cm) | 6.1 |
| Ship length (cm) | 11.43 |
| Ship width (cm) | 11.94 |
| HS code | 8536490080 |
Product Variants
| Model | Input Voltage | Max. Output Amps | Min. Input Voltage | Max. Input Voltage | Max. Output W/heat Sink (a) | Mounting Style | Output Voltage | Finger Safe | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CMRD484510 | 4-32V DC | 45A | 4V | 32V | 45A | Din, Flange | 48-530V AC | Yes | €204.53 | |
| CMRD4865 | 4-32V DC | 65A | 4V | 32V | 65A | Din, Flange | 48-530V AC | Yes | €276.08 | |
| CMRD486510 | 4-32V DC | 65A | 4V | 32V | 65A | Din, Flange | 48-530V AC | Yes | €266.22 | |
| CMRA4845 | 90-140V AC | 45A | 90V | 140V | - | Din, Flange | 48-530V AC | Yes | €253.90 | |
| CMRA4865 | 90-140V AC | 65A | 90V | 140V | 65A | Din, Flange | 48-530V AC | Yes | €336.16 |
