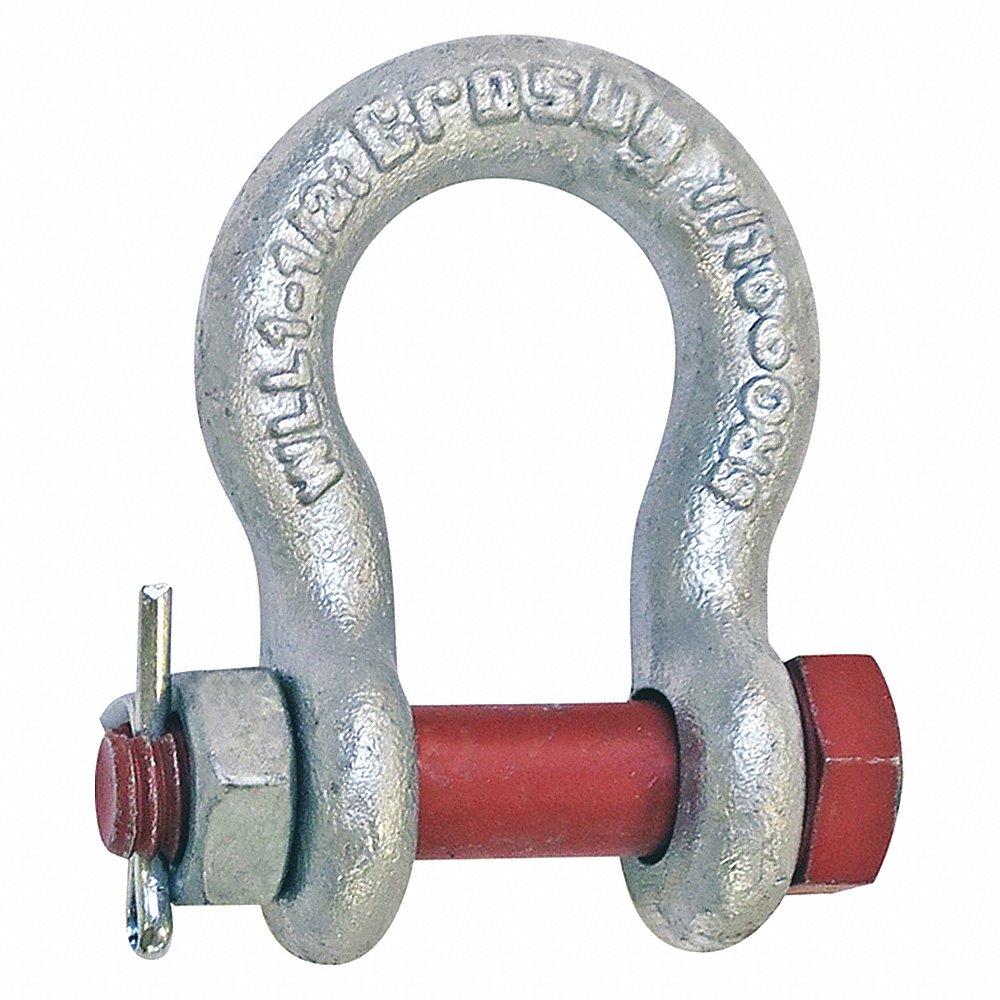

CROSBY 1019677 Shackle, Bolt/Cotter/Nut Pin, 70000 Lb Working Load Limit, 3 1/4 Inch Width Between Eyes
Get it by Monday, Dec 22
10.00% off
€1,373.72 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Shackle |
| Body Color | Silver |
| Body Finish | Galvanized |
| Body Material | Carbon Steel |
| Body Size | 2" |
| Body Thickness | 2" |
| Finish | Galvanized , Hot Galvanized |
| Inside Length | 7 3/4" |
| Inside Width | 5 3/4" |
| Lifting Capability | For Lifting |
| Maximum Operating Temperature | 400°F |
| Minimum Operating Temperature | -40°F |
| Pin Color | Red |
| Pin Dia. | 2 1/4" , 2 5/16" |
| Pin Finish | Galvanized |
| Pin Material | Alloy Steel |
| Pin Style | Bolt, Cotter, Nut |
| Pin Type | Removable Bolt, Nut |
| Shackle Type | Anchor Shackle |
| Standards | Asme B30.26 |
| Width Between Eyes | 3 1/4" |
| Working Load Limit | 70000 lbs. |
Shipping Info:
| Ship weight (kg) | 23.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Working Load Limit | Shackle Type | Inside Length | Inside Width | Width Between Eyes | Body Material | Pin Type | Pin Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1019466 | 1000 lbs. | Anchor Shackle | 1 1/8" | 3/4" | 1/2" | Carbon Steel | - | 1/4" | €27.38 | |
|
1019468 | 1500 lbs. | Anchor Shackle | 1 1/4" | 13/16" | 9/16" | Carbon Steel | Removable Bolt, Nut | 3/8" | €35.26 | |
 |
1021015 | 4000 lbs. | Anchor Shackle | 1 7/16" | 1" | 11/16" | Alloy Steel | Removable Bolt, Nut | 1/2" | €70.96 | |
 |
1021020 | 5340 lbs. | Anchor Shackle | 1 11/16" | 1 3/16" | 3/4" | Alloy Steel | Removable Bolt, Nut | 1/2" | €79.24 | |
|
1021029 | 6660 lbs. | Anchor Shackle | 1 7/8" | 1 5/16" | 13/16" | Alloy Steel | Removable Bolt, Nut | 5/8" | €101.09 | |
|
1019464 | 666 lbs. | Anchor Shackle | 7/8" | 5/8" | 3/8" | Carbon Steel | Removable Bolt, Nut | 1/4" | €26.06 | |
 |
G-215 | 19000 lbs. | Chain Shackle | 3 5/8" | 1 3/4" | 1 3/4" | Carbon Steel | Removable Round Pin | - | €207.18 |
