COXREELS TMP-N-550 Spring Return Hose Reel, 3/4 Inch Size, 50 Feet Capacity, 1500 Psi Max Pressure
Get it by Thursday, Dec 18
10.00% off
€1,388.28 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Spring Return Hose Reel |
| Application | Air, Water, Oil, Hydraulics |
| Base Motion Type | Stationary |
| Bearing Type | Permanently Lubricated |
| Corrosion Resistance | Yes |
| Corrosion-resistant | Yes |
| Drive Type | Spring Return |
| Duty Rating | Heavy Duty |
| Enclosed Reel | No |
| Fasteners Included | No |
| Features | 1" Solid Steel Axle, External Fluid Path, Heavy Gauge 1/4" Steel Base & Support Post For Maximum Stability, Long Lasting & Chip Resistant Rust Inhibiting Cpc Powder Coat Finish, Multi-Position Lock Ratchet Mechanism Secures Hose At Desired Length, Non Corrosive Stainless Steel Pawl Spring, Pawl & Zinc Plated Ratchet, Rolled Edges And Ribbed Discs Provide Strength And Safety, Solid One Piece |
| Finish | Powder Coated |
| Fitting Gender | Male x Male |
| Fitting Size | 3/4" x 3/4" |
| Fitting Type | NPT x NPT |
| For Dual Hose | No |
| Height | 25 1/2" |
| Hose Capacity | 50 ft. |
| Hose Color | Black |
| Hose Cover Material | Synthetic Rubber |
| Hose End Configuration | 3/4" MNPT |
| Hose Fitting A Gender | Male |
| Hose Fitting A Material | Steel |
| Hose Fitting A Size | 3/4" |
| Hose Fitting A Type | NPT |
| Hose Fitting B Gender | Male |
| Hose Fitting B Material | Steel |
| Hose Fitting B Size | 3/4" |
| Hose Fitting B Type | NPT |
| Hose Included | Yes |
| Hose Inside Dia. | 3/4" |
| Hose Length | 50 ft. |
| Hose Material | Rubber |
| Hose Outside Dia. | 1 1/16" |
| Hose Reel Primary Application | Oil |
| Hose Reel Type | Wall Mount Hose Reel |
| Hose Tube Material | Nitrile |
| Housing Material | Steel |
| Includes | Hose, Hose Guard, Hose Stop |
| Includes Hose Stop | Yes |
| Includes Leader Hose | No |
| Latch Type | Locking |
| Length | 24" |
| Max. Pressure | 1500 psi |
| Max. Temp. | 250°F |
| Maximum Operating Pressure | 1500 psi |
| Maximum Operating Temperature | 190°F |
| Media | Air, Oil, Water |
| Minimum Operating Temperature | -40°F |
| Mount Base Height | 9" |
| Mount Base Width | 8" |
| Mount Hole Diameter | 1/2" |
| Mounting Hole Center To Center Height | 8" |
| Mounting Hole Center To Center Width | 7" |
| Number Of Guide Arms | 2 |
| Number Of Mounting Holes | 4 |
| Overall Height | 25 1/2" |
| Overall Length | 24" |
| Overall Width | 9 3/8" |
| Pedestal Type | Dual Pedestal |
| Product Datasheet | coxreels-tmp-n-550.pdf |
| Reel Color | Blue |
| Reel Diameter | 24" |
| Reel Finish | Powder Coated |
| Reel Material | Steel |
| Reel Width | 9 3/8" |
| Seal Material | Nitrile |
| Speed Limited Retraction | No |
| Spiral Hose Guard | No |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size | 3/4" |
| Swivel Inlet Thread Size | 3/4"-14 |
| Swivel Inlet Type | NPT |
| Swivel Material | Brass |
| Swivel Outlet Gender | Male |
| Swivel Outlet Size | 3/4" |
| Swivel Outlet Thread Size | 3/4"-14 |
| Swivel Outlet Type | NPT |
| Twin Hose Compatible | No |
| Weight | 94 lbs. |
| Width | 9 3/8" |
Shipping Info:
| Ship weight (kg) | 42.3 |
| Ship height (cm) | 64.77 |
| Ship length (cm) | 60.96 |
| Ship width (cm) | 23.81 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Hose Included | Swivel Material | Reel Material | Speed Limited Retraction | Hose Capacity | Reel Color | Number Of Guide Arms | Fitting Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

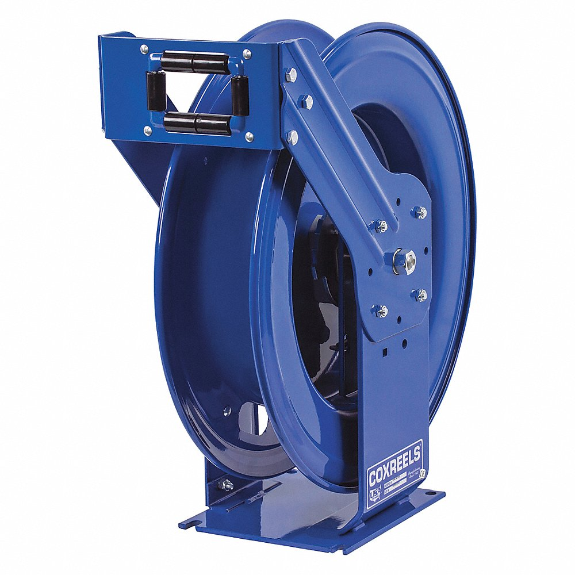

THPL-N-375 | No | Zinc Plated Steel | Steel | No | 75 ft. | Blue | 2 | - | €1,180.42 | |
 |

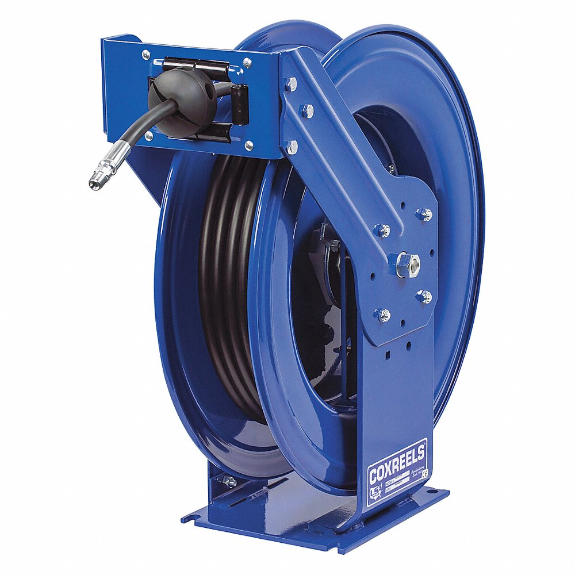

THP-N-375 | Yes | Brass | Steel | No | 75 ft. | Blue | 2 | 3/8" x 3/8" | €1,439.84 | |
 |
ENL-N-350 | No | Brass | Steel | No | 50 ft. | Blue | - | - | €897.53 | |
 |

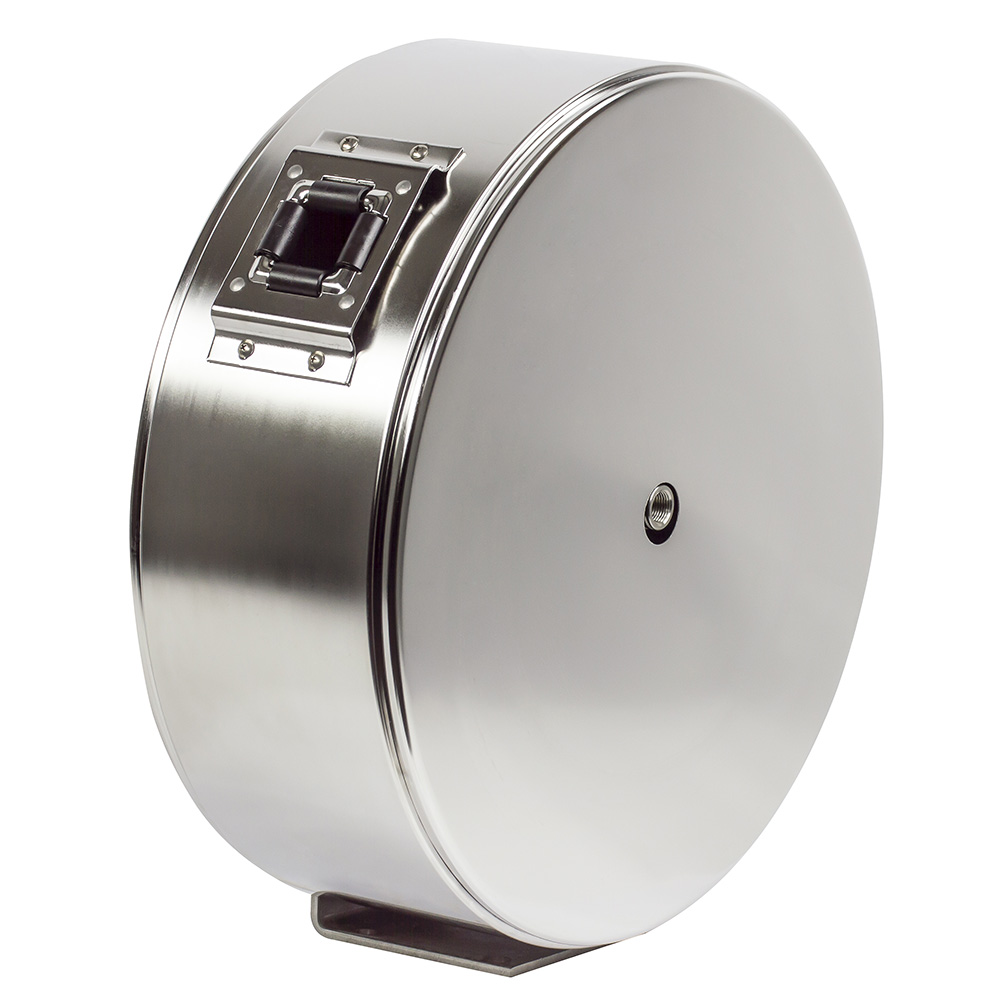

ENL-N-350-SS | No | Stainless Steel | Stainless Steel | No | 50 ft. | Silver | - | - | €2,263.36 | |
|
TMPL-N-3100 | No | Brass | Steel | No | 100 ft. | Blue | 2 | - | €1,169.37 | |
|

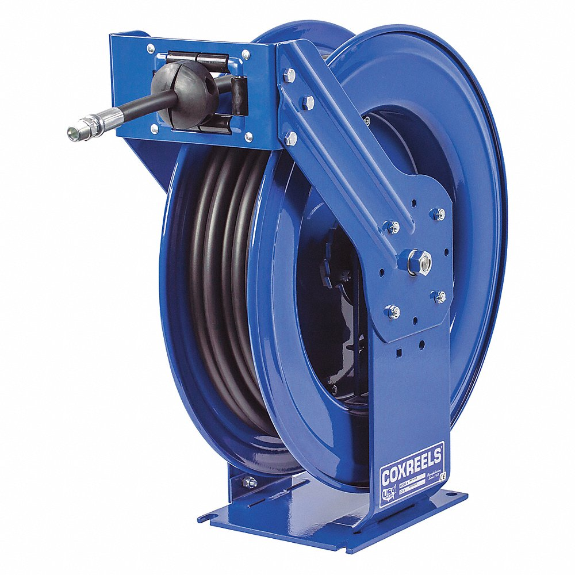

TMP-N-3100 | Yes | Brass | Steel | No | 100 ft. | Blue | 2 | 3/8" x 3/8" | €1,373.34 | |
|
TMPL-N-575 | No | Brass | Steel | No | 75 ft. | Blue | 2 | - | €1,427.07 |
