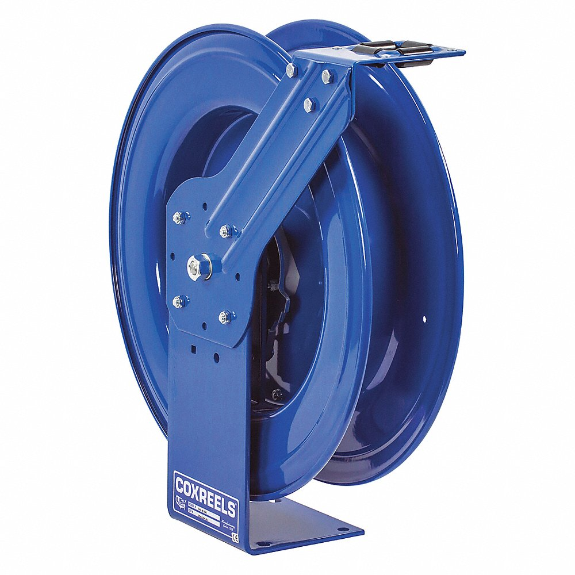

COXREELS SHL-N-450 Spring Return Hose Reel, 50 ft. Length, 1/2 Inch I.D., Brass, Blue, Single Pedestal
Get it by Tuesday, Dec 23
10.00% off
€663.00 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Spring Return Hose Reel |
| Base Motion Type | Stationary |
| Base Size | 6" x 6" |
| Bearing Type | Permanently Lubricated |
| Corrosion Resistance | Yes |
| Corrosion-resistant | Yes |
| Drive Type | Spring Return |
| Enclosed Reel | No |
| Fasteners Included | No |
| Features | Chip Resistant, External Fluid Path, Multi-Position Lock Ratchet Mechanism Secures Hose At Desired Length, Non-Corrosive Stainless Steel Pawl Spring, Pawl/Zinc Plated Ratchet, Rolled Edges And Ribbed Discs Provide Strength And Safety |
| Finish | Powder Coated |
| For Dual Hose | No |
| Height | 21 1/4" |
| Hose Capacity | 50 ft. |
| Hose Color | Blue |
| Hose Included | No |
| Hose Inside Dia. | 1/2" |
| Hose Length | 50 ft. |
| Hose Outside Dia. | 3/4" |
| Hose Reel Primary Application | Air, Water |
| Hose Reel Type | Wall Mount Hose Reel |
| Housing Material | Steel |
| Includes | Low Pressure Heavy Duty Hose Reel - Spring Rewind Hose Reel - Low Pressure Hose Reel - Retractable Hose Reel - Air Compressor Reel |
| Includes Leader Hose | No |
| Latch Type | Locking |
| Length | 19 1/2" |
| Max. Pressure | 300 psi |
| Maximum Operating Pressure | 300 psi |
| Maximum Operating Temperature | 150°F |
| Media | Air, Oil, Water |
| Minimum Operating Temperature | -40°F |
| Mount Base Height | 6" |
| Mount Base Width | 6" |
| Mount Hole Diameter | 1/2" |
| Mounting Hole Center To Center Height | 5" |
| Mounting Hole Center To Center Width | 4" |
| Mounting Size | 4" x 5" |
| Number Of Guide Arms | 1 |
| Number Of Mounting Holes | 4 |
| Overall Height | 21 1/4" |
| Overall Length | 19 1/2" |
| Pedestal Type | Single Pedestal |
| Reel Color | Blue |
| Reel Diameter | 19 1/2" |
| Reel Finish | Powder Coated |
| Reel Material | Steel |
| Reel Width | 8 1/4" |
| Seal Material | Nitrile |
| Speed Limited Retraction | No |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size | 1/2" |
| Swivel Inlet Thread Size | 1/2"-14 |
| Swivel Inlet Type | NPT |
| Swivel Material | Brass |
| Swivel Outlet Gender | Female |
| Swivel Outlet Size | 1/2" |
| Swivel Outlet Thread Size | 1/2"-14 |
| Swivel Outlet Type | NPT |
| Twin Hose Compatible | No |
| Vacuum Rating | 29 in. hg |
| Weight | 46 lbs. |
| Width | 8 1/4" |
Shipping Info:
| Ship weight (kg) | 20.7 |
| Ship height (cm) | 53.98 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 20.96 |
| Country of Origin | US |
Product Details:
- Super Hub
Product Variants
| Model | Hose Included | Swivel Material | Hose Capacity | Speed Limited Retraction | Fitting Size | Overall Length | Overall Height | Overall Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| SH-N-160 | Yes | Brass | - | - | - | 19 1/2" | - | 7.63" | €644.79 | |
| SH-N-3100 | Yes | Brass | 100 ft. | No | 3/8" x 3/8" | 24" | - | 8 1/4" | €1,049.65 | |
| SH-N-350 | Yes | Brass | 50 ft. | No | 3/8" x 3/8" | 19 1/2" | - | 8 1/4" | €704.07 | |
| SH-N-360 | Yes | Brass | - | - | - | 19 1/2" | - | 8 1/4" | €763.96 | |
| SH-N-375 | - | - | - | - | - | 24" | - | 8 1/4" | €647.14 | |
| SH-N-4100 | Yes | - | - | - | - | 24" | 25 1/2" | 8 3/4" | €1,150.64 | |
| SH-N-435 | Yes | Brass | - | - | - | 19 1/2" | 21 1/4" | 8 1/4" | €726.65 |
