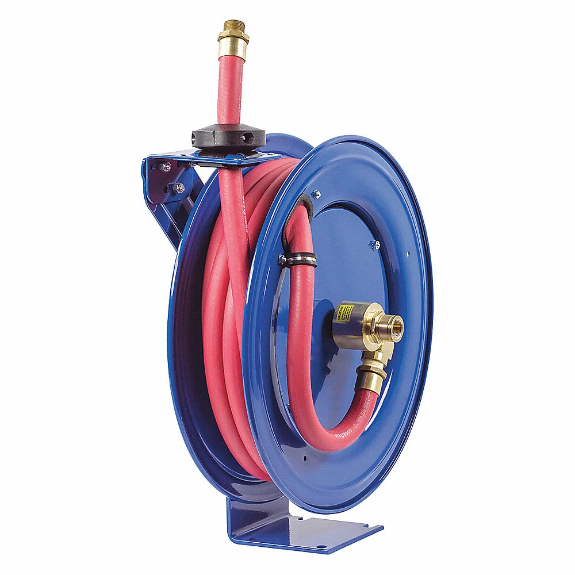

COXREELS SHF-N-525 Spring Return Hose Reel, 25 ft. Length, 3/4 Inch I.D., 3/4 Inch MNPT, Brass, Blue
Get it by Wednesday, Dec 24
10.00% off
€762.80 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Spring Return Hose Reel |
| Base Motion Type | Stationary |
| Base Size | 6" x 6" |
| Bearing Type | Permanently Lubricated |
| Corrosion Resistance | Yes |
| Corrosion-resistant | Yes |
| Drive Type | Spring Return |
| Enclosed Reel | No |
| Fasteners Included | No |
| Features | 1" Solid Steel Axle, External Fluid Path, Heavy Gauge 1/4" Steel Base & Support Post For Maximum Stability, Long Lasting & Chip Resistant Rust Inhibiting Cpc Powder Coat Finish, Multi-Position Lock Ratchet Mechanism Secures Hose At Desired Length, Non Corrosive Stainless Steel Pawl Spring, Pawl & Zinc Plated Ratchet, Rolled Edges And Ribbed Discs Provide Strength And Safety, Solid One Piece |
| Finish | Powder Coated |
| Fitting Size | 3/4" x 3/4" |
| Fitting Type | NPT x NPT |
| For Dual Hose | No |
| Height | 21" |
| Hose Capacity | 25 ft. |
| Hose Color | Red |
| Hose Cover Material | Synthetic Rubber |
| Hose End Configuration | 3/4" MNPT |
| Hose Fitting A Gender | Male |
| Hose Fitting A Material | Brass |
| Hose Fitting A Size | 3/4" |
| Hose Fitting A Type | NPT |
| Hose Fitting B Gender | Male |
| Hose Fitting B Material | Brass |
| Hose Fitting B Size | 3/4" |
| Hose Fitting B Type | NPT |
| Hose Included | Yes |
| Hose Inside Dia. | 3/4" |
| Hose Length | 25 ft. |
| Hose Outside Dia. | 1 3/16" |
| Hose Reel Primary Application | Fuel |
| Hose Reel Type | Wall Mount Hose Reel |
| Hose Tube Material | Synthetic Rubber |
| Housing Material | Steel |
| Includes | Hose, Hose Stop |
| Includes Hose Stop | Yes |
| Includes Leader Hose | No |
| Latch Type | Locking |
| Length | 19 5/8" |
| Max. Pressure | 300 psi |
| Maximum Operating Pressure | 300 psi |
| Maximum Operating Temperature | 150°F |
| Minimum Operating Temperature | -20°F |
| Mount Base Height | 6" |
| Mount Base Width | 6" |
| Mount Hole Diameter | 1/2" |
| Mounting Hole Center To Center Height | 5" |
| Mounting Hole Center To Center Width | 4" |
| Mounting Size | 4" x 5" |
| Number Of Guide Arms | 1 |
| Number Of Mounting Holes | 4 |
| Overall Height | 21" |
| Overall Length | 19 5/8" |
| Overall Width | 9 3/4" |
| Pedestal Type | Single Pedestal |
| Product Datasheet | coxreels-shf-n-525.pdf |
| Reel Color | Blue |
| Reel Diameter | 19 1/2" |
| Reel Finish | Powder Coated |
| Reel Material | Steel |
| Reel Width | 9 3/8" |
| Seal Material | Nitrile |
| Speed Limited Retraction | No |
| Spiral Hose Guard | No |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size | 3/4" |
| Swivel Inlet Thread Size | 3/4"-14 |
| Swivel Inlet Type | NPT |
| Swivel Material | Brass |
| Swivel Outlet Gender | Male |
| Swivel Outlet Size | 3/4" |
| Swivel Outlet Thread Size | 3/4"-14 |
| Swivel Outlet Type | NPT |
| Twin Hose Compatible | No |
| Weight | 45 lbs. |
| Width | 9 3/4" |
Shipping Info:
| Ship weight (kg) | 20.25 |
| Ship height (cm) | 53.34 |
| Ship length (cm) | 49.85 |
| Ship width (cm) | 24.77 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Hose Included | Swivel Material | Hose Capacity | Number Of Guide Arms | Fitting Size | Mounting Size | Base Size | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| TSHF-N-635 | Yes | - | 35 ft. | 2 | 1" x 1" | 7" x 8" | 8" x 9" | 24" | €1,379.57 | |
| SLPF-5100 | Yes | - | - | - | - | 14" x 22" | 15.38" x 25" | 22 22/25" | €1,912.89 | |
| SLPF-550 | Yes | Brass | - | - | - | 14" x 18.5" | 15.38" x 21.5" | 22 22/25" | €1,671.13 | |
| SLPF-575 | Yes | - | - | - | - | 14" x 22" | 15.38" x 25" | 22 22/25" | €1,614.28 | |
| SLPF-625 | Yes | - | - | - | - | 14" x 18.5" | 15.38" x 21.5" | 26.38" | €1,429.82 | |
| SLPF-650 | Yes | - | - | - | - | 14" x 22" | 15.38" x 25" | 26.38" | €1,967.84 | |
| SLPF-675 | Yes | - | - | - | - | 14" x 22" | 15.38" x 25" | 26.38" | €2,321.55 |
