COXREELS SH-N-550 Spring Return Hose Reel, 50 ft. Length, 3/4 Inch I.D., 3/4 Inch MNPT, Brass, Blue
Get it by Tuesday, Dec 23
10.00% off
€876.70 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Spring Return Hose Reel |
| Base Motion Type | Stationary |
| Base Size | 6" x 6" |
| Bearing Type | Permanently Lubricated |
| Corrosion Resistance | Yes |
| Corrosion-resistant | Yes |
| Drive Type | Spring Return |
| Enclosed Reel | No |
| Fasteners Included | No |
| Features | 1" Solid Steel Axle, External Fluid Path, Heavy Gauge 1/4" Steel Base & Support Post For Maximum Stability, Long Lasting & Chip Resistant Rust Inhibiting Cpc Powder Coat Finish, Multi-Position Lock Ratchet Mechanism Secures Hose At Desired Length, Non Corrosive Stainless Steel Pawl Spring, Pawl & Zinc Plated Ratchet, Rolled Edges And Ribbed Discs Provide Strength And Safety, Solid One Piece |
| Finish | Powder Coated |
| Fitting Gender | Male x Male |
| Fitting Size | 3/4" x 3/4" |
| Fitting Type | NPT x NPT |
| For Dual Hose | No |
| Height | 25 1/2" |
| Hose Capacity | 50 ft. |
| Hose Color | Red |
| Hose Cover Material | PVC |
| Hose End Configuration | 3/4" MNPT |
| Hose Fitting A Gender | Male |
| Hose Fitting A Material | Brass |
| Hose Fitting A Size | 3/4" |
| Hose Fitting A Type | NPT |
| Hose Fitting B Gender | Male |
| Hose Fitting B Material | Brass |
| Hose Fitting B Size | 3/4" |
| Hose Fitting B Type | NPT |
| Hose Included | Yes |
| Hose Inside Dia. | 3/4" |
| Hose Length | 50 ft. |
| Hose Outside Dia. | 1 1/16" |
| Hose Reel Type | Wall Mount Hose Reel |
| Hose Tube Material | PVC |
| Housing Material | Steel |
| Includes | Hose, Hose Guard, Hose Stop |
| Includes Hose Stop | Yes |
| Includes Leader Hose | No |
| Latch Type | Locking |
| Length | 24" |
| Max. Pressure | 300 psi |
| Maximum Operating Pressure | 300 psi |
| Maximum Operating Temperature | 150°F |
| Media | Air, Water |
| Minimum Operating Temperature | -15°F |
| Mount Base Height | 6" |
| Mount Base Width | 6" |
| Mount Hole Diameter | 1/2" |
| Mounting Hole Center To Center Height | 5" |
| Mounting Hole Center To Center Width | 4" |
| Mounting Size | 4" x 5" |
| Number Of Guide Arms | 1 |
| Number Of Mounting Holes | 4 |
| Overall Height | 25 1/2" |
| Overall Length | 24" |
| Overall Width | 9 7/8" |
| Pedestal Type | Single Pedestal |
| Reel Color | Blue |
| Reel Diameter | 24" |
| Reel Finish | Powder Coated |
| Reel Material | Steel |
| Reel Width | 9 7/8" |
| Seal Material | Nitrile |
| Speed Limited Retraction | No |
| Spiral Hose Guard | No |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size | 3/4" |
| Swivel Inlet Thread Size | 3/4"-14 |
| Swivel Inlet Type | NPT |
| Swivel Material | Brass |
| Swivel Outlet Gender | Male |
| Swivel Outlet Size | 3/4" |
| Swivel Outlet Thread Size | 3/4"-14 |
| Swivel Outlet Type | NPT |
| Twin Hose Compatible | No |
| Weight | 69 lbs. |
| Width | 9 7/8" |
Shipping Info:
| Ship weight (kg) | 31.05 |
| Ship height (cm) | 64.77 |
| Ship length (cm) | 60.96 |
| Ship width (cm) | 25.08 |
| Country of Origin | US |
Product Details:
- Super Hub
Product Variants
| Model | Hose Included | Swivel Material | Hose Capacity | Speed Limited Retraction | Fitting Size | Overall Length | Overall Height | Overall Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

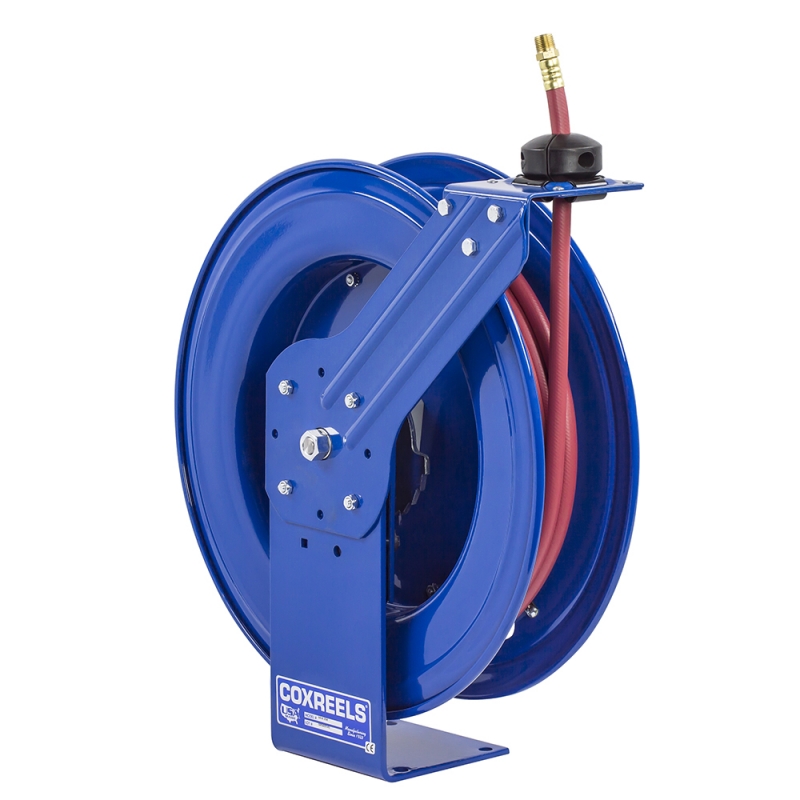

| SH-N-160 | Yes | Brass | - | - | - | 19 1/2" | - | 7.63" | €644.79 | |

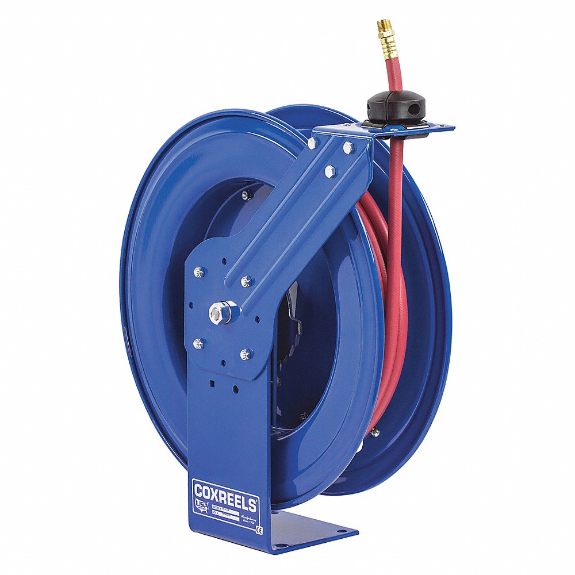

| SH-N-3100 | Yes | Brass | 100 ft. | No | 3/8" x 3/8" | 24" | - | 8 1/4" | €1,049.65 | |
| SH-N-350 | Yes | Brass | 50 ft. | No | 3/8" x 3/8" | 19 1/2" | - | 8 1/4" | €704.07 | |
| SH-N-360 | Yes | Brass | - | - | - | 19 1/2" | - | 8 1/4" | €763.96 | |
| SH-N-375 | - | - | - | - | - | 24" | - | 8 1/4" | €647.14 | |
| SH-N-4100 | Yes | - | - | - | - | 24" | 25 1/2" | 8 3/4" | €1,150.64 | |
| SH-N-435 | Yes | Brass | - | - | - | 19 1/2" | 21 1/4" | 8 1/4" | €726.65 |
