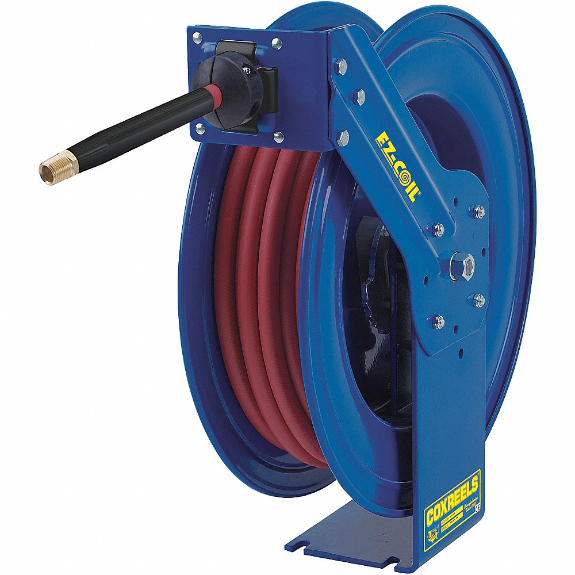

COXREELS EZ-SH-4100 Spring Return Hose Reel, 100 ft. Length, 1/2 Inch I.D., 1/2 Inch MNPT, Brass, Blue
Get it by Monday, Aug 24
5.00% off
€1,182.58 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Spring Return Hose Reel |
| Base Motion Type | Stationary |
| Base Size | 6" x 6" |
| Bearing Type | Permanently Lubricated |
| Corrosion Resistance | Yes |
| Corrosion Resistant | Yes |
| Drive Type | Spring Return |
| Enclosed Reel | No |
| Fasteners Included | No |
| Features | 1" Solid Steel Axle, External Fluid Path, Heavy Gauge 1/4" Steel Base & Support Post For Maximum Stability, Long Lasting & Chip Resistant Rust Inhibiting Cpc Powder Coat Finish, Multi-Position Lock Ratchet Mechanism Secures Hose At Desired Length, Non Corrosive Stainless Steel Pawl Spring, Pawl & Zinc Plated Ratchet, Rolled Edges And Ribbed Discs Provide Strength And Safety, Solid One Piece |
| Finish | Powder Coating |
| Fitting Gender | Male x Male |
| Fitting Size | 1/2" x 1/2" |
| Fitting Type | NPT x NPT |
| For Dual Hose | No |
| Height | 25 1/4" |
| Hose Capacity | 100 ft. |
| Hose Color | Red |
| Hose Cover Material | PVC |
| Hose End Configuration | 1/2" MNPT |
| Hose Fitting A Gender | Male |
| Hose Fitting A Material | Brass |
| Hose Fitting A Size | 1/2" |
| Hose Fitting A Type | NPT |
| Hose Fitting B Gender | Male |
| Hose Fitting B Material | Brass |
| Hose Fitting B Size | 1/2" |
| Hose Fitting B Type | NPT |
| Hose Included | Yes |
| Hose Inside Dia. | 1/2" |
| Hose Length | 100 ft. |
| Hose Outside Dia. | 3/4" |
| Hose Reel Type | Wall Mount Hose Reel |
| Hose Tube Material | PVC |
| Housing Material | Steel |
| Included | Hose, Hose Guard, Hose Stop |
| Included Hose Stop | Yes |
| Included Leader Hose | No |
| Latch Type | Locking |
| Length | 23" |
| Max. Operating Pressure | 300 psi |
| Max. Operating Temp. | 150°F |
| Max. Pressure | 300 psi |
| Media | Air, Water |
| Min. Operating Temp. | -15°F |
| Mount Base Height | 6" |
| Mount Base Width | 6" |
| Mount Hole Dia. | 1/2" |
| Mounting Hole Center To Center Height | 5" |
| Mounting Hole Center To Center Width | 4" |
| Mounting Size | 4" x 5" |
| No. Of Guide Arms | 1 |
| No. Of Mounting Holes | 4 |
| Overall Height | 25 1/4" |
| Overall Length | 23" |
| Overall Width | 9 1/4" |
| Pedestal Type | Single Pedestal |
| Product Datasheet | coxreels-ez-sh-4100.pdf |
| Reel Color | Blue |
| Reel Dia. | 24" |
| Reel Finish | Powder Coated |
| Reel Material | Steel |
| Reel Width | 8 3/4" |
| Seal Material | Nitrile |
| Speed Limited Retraction | Yes |
| Spiral Hose Guard | No |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size | 1/2" |
| Swivel Inlet Thread Size | 1/2"-14 |
| Swivel Inlet Type | NPT |
| Swivel Material | Brass |
| Swivel Outlet Gender | Male |
| Swivel Outlet Size | 1/2" |
| Swivel Outlet Thread Size | 1/2"-14 |
| Swivel Outlet Type | NPT |
| Twin Hose Compatible | No |
| Width | 9 1/4" |
Shipping Info:
| Ship weight (kg) | 36.45 |
| Ship height (cm) | 64.77 |
| Ship length (cm) | 60.96 |
| Ship width (cm) | 22.23 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Hose Inside Dia. | Overall Width | Max. Pressure | Overall Height | Media | Hose Included | Bearing Type | Reel Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| EZ-SH-450 | 1/2" | 8 1/4" | 300 psi | 21 1/4" | Air, Water | Yes | Permanently Lubricated | 19 1/2" | €934.55 | |
| EZ-SH-450-RH-BXB | 1/2" | 8 1/4" | 300 psi | 21 1/4" | Air, Water | Yes | Permanent Lubricated | 19 1/2" | €846.53 | |
| EZ-SH-3100 | 3/8" | - | 300 psi | - | Air, Water | Yes | Permanently Lubricated | 24" | €1,337.80 | |
| EZ-SH-350 | 3/8" | 8 3/4" | 300 psi | 21" | Air, Water | Yes | Permanently Lubricated | 19 1/2" | €856.92 | |
| EZ-SH-375 | 3/8" | 8 3/4" | 300 psi | 25 1/4" | Air, Water | Yes | Permanently Lubricated | 24" | €969.09 | |
| EZ-SH-475 | 1/2" | 9 1/4" | 300 psi | 25 1/4" | Air, Water | Yes | Permanently Lubricated | 24" | €1,107.34 | |
| EZ-SH-525 | 3/4" | - | 300 psi | 25 1/2" | Air, Water | Yes | Permanently Lubricated | - | €718.87 |
