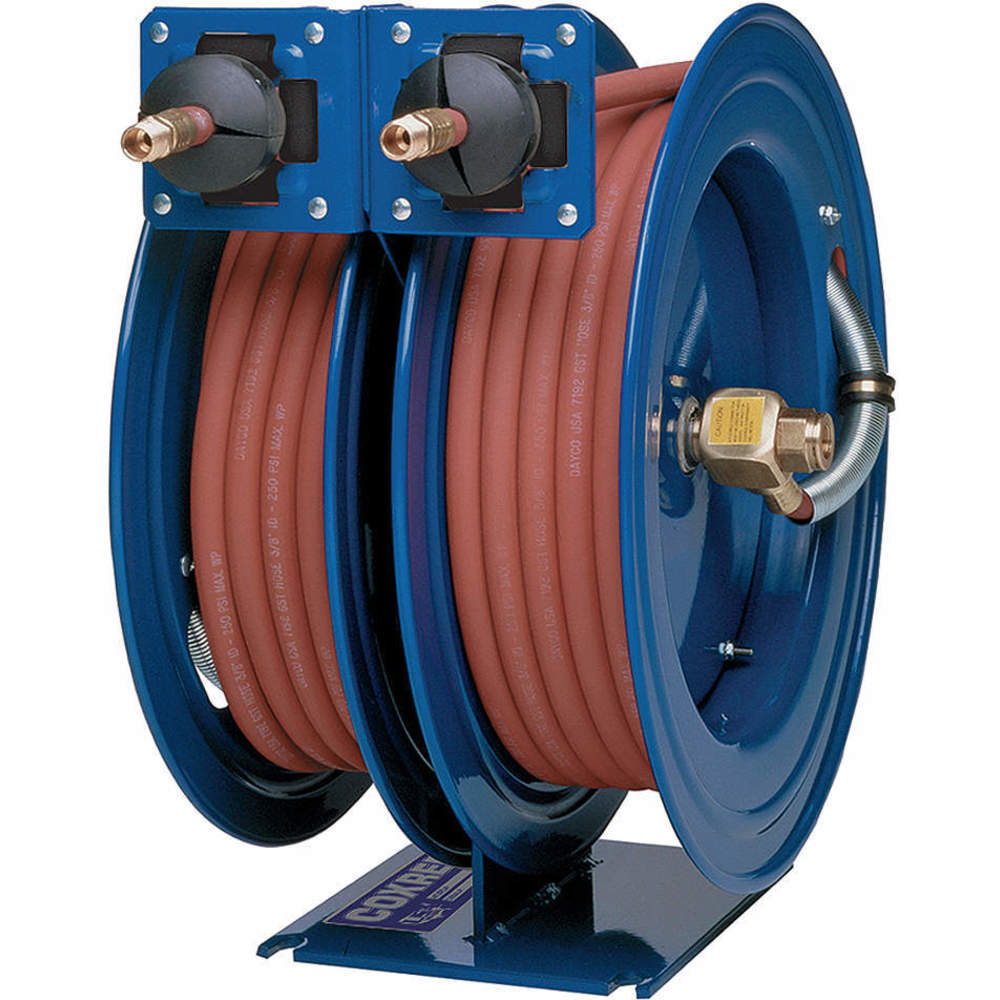

COXREELS C-LP-150-150 Spring Return Hose Reel, Low Pressure, 1/4 Inch Inner Dia., 50 Feet Length
Get it by Wednesday, Aug 26
5.00% off
€942.32 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Spring Return Hose Reel |
| Base Motion Type | Stationary |
| Base Size | 8" x 9" |
| Bearing Size | 1" |
| Bearing Type | Permanently Lubricated |
| Combination Type | Air, Water |
| Cord Included | No |
| Drive Type | Spring Return |
| Enclosed Reel | No |
| Fasteners Included | No |
| Features | 1" Solid Steel Axle, Chip Resistant Cpc Powder Coat Finish, Cnc Spun Discs With Strength Bead And Rolled Edge, Each Reel Operates Independently, Heavy Gauge 1/4" Steel Base & Support Post For Maximum Stability, Single Pedestal Reel, Solid One Piece, Stainless Steel Ratchet Pawl And Spring |
| Feeder Cord Ending | None |
| Finish | Powder Coating |
| Fitting Gender | Male x Male |
| Fitting Size | 1/4" x 1/4" |
| Fitting Type | NPT x NPT |
| For Dual Hose | No |
| Height | 18 5/8" |
| Hose 1 Color | Red |
| Hose 1 Cover Material | PVC |
| Hose 1 Fitting A Gender | Male |
| Hose 1 Fitting A Material | Brass |
| Hose 1 Fitting A Size | 1/4" |
| Hose 1 Fitting A Type | NPT |
| Hose 1 Fitting B Gender | Male |
| Hose 1 Fitting B Material | Brass |
| Hose 1 Fitting B Size | 1/4" |
| Hose 1 Fitting B Type | NPT |
| Hose 1 Inside Dia. | 1/4" |
| Hose 1 Length | 50 ft. |
| Hose 1 Outside Dia. | 1/2" |
| Hose 1 Tube Material | PVC |
| Hose 2 Color | Red |
| Hose 2 Cover Material | PVC |
| Hose 2 Fitting A Gender | Male |
| Hose 2 Fitting A Material | Brass |
| Hose 2 Fitting B Gender | Male |
| Hose 2 Fitting B Material | Brass |
| Hose 2 Inside Dia. | 1/4" |
| Hose 2 Length | 50 ft. |
| Hose 2 Outside Dia. | 1/2" |
| Hose 2 Tube Material | PVC |
| Hose Capacity | 50 ft. |
| Hose End Configuration | 1/4" MNPT x 1/4" MNPT |
| Hose Included | Yes |
| Hose Inside Dia. | 1/4" |
| Hose Length | 50 ft. |
| Hose Material | PVC |
| Hose Outside Dia. | 1/2" |
| Hose Reel Primary Application | Air |
| Hose Reel Type | Wall Mount Hose Reel |
| Hose Return Speed Control | No |
| Included | (2) Hose, (2) Hose Guard, (2) Hose Stop |
| Included Cord | No |
| Included Hose Stop | Yes |
| Included Leader Hose | No |
| Latch Type | Multi Position Self Locking Ratchet |
| Length | 17" |
| Max. Operating Pressure | 300 psi |
| Max. Pressure | 300 psi |
| Max. Temp. | 150°F |
| Min. Operating Temp. | -15°F |
| Mount Base Height | 9" |
| Mount Base Width | 8" |
| Mount Hole Dia. | 1/2" |
| Mounting | Bench, Ceiling, Floor, Vehicle, Wall |
| Mounting Hole Center To Center Height | 8" |
| Mounting Hole Center To Center Width | 9" |
| Mounting Size | 7" x 8" |
| No. Of Conductors | 0 |
| No. Of Guide Arms | 1 |
| No. Of Mounting Holes | 4 |
| No. Of Outlets | 2 |
| Overall Height | 18 5/8" |
| Overall Length | 17" |
| Overall Width | 10 1/2" |
| Pedestal Type | Single Pedestal |
| Product Datasheet | coxreels-c-lp-150-150.pdf |
| Reel Color | Blue |
| Reel Dia. | 17" |
| Reel Finish | Powder Coated |
| Reel Material | Steel |
| Reel Width | 10 1/2" |
| Seal Material | Nitrile |
| Speed Limited Retraction | No |
| Spiral Hose Guard | No |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size | 1/4" |
| Swivel Inlet Thread Size | 1/4"-18 |
| Swivel Inlet Type | NPT |
| Swivel Material | Brass |
| Swivel Material | Solid Brass |
| Swivel Outlet Gender | Female |
| Swivel Outlet Size | 1/4" |
| Swivel Outlet Thread Size | 1/4"-18 |
| Swivel Outlet Type | NPT |
| Type | Dual Purpose |
| Width | 10 1/2" |
Shipping Info:
| Ship weight (kg) | 33.3 |
| Ship height (cm) | 47.32 |
| Ship length (cm) | 43.18 |
| Ship width (cm) | 26.67 |
| HS code | 0674255711983 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Hose Inside Dia. | Max. Pressure | Bearing Type | Hose Included | Overall Height | Overall Width | Media | Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
C-LP-325-325 | 3/8" | 300 psi | Permanently Lubricated | Yes | 18 5/8" | 10 1/2" | - | 18 5/8" | €922.19 | |
|
C-LP-350-350 | 3/8" | 300 psi | Permanently Lubricated | Yes | 18 5/8" | 10 1/2" | - | 18 5/8" | €1,102.35 | |
|
C-LP-425-425 | 1/2" | 300 psi | Permanently Lubricated | Yes | 18 5/8" | 10 1/2" | - | 18 5/8" | €1,058.50 | |
 |
C-L350-5012-A | 3/8" | 300 psi | Lubricated Precision Bearings | Yes | 18.63" | 16" | - | 18 5/8" | €1,412.59 | |
 |

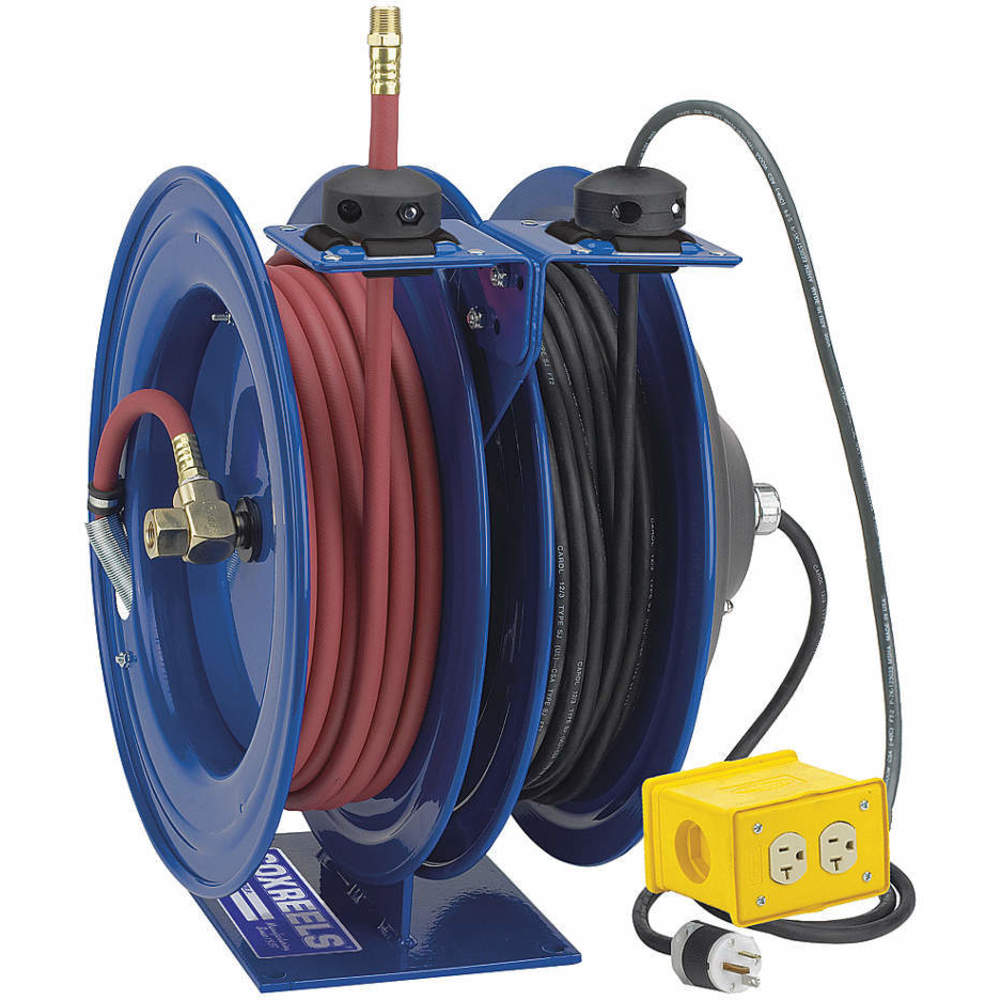

C-L350-5012-B | 3/8" | 300 psi | Lubricated Precision Bearings | Yes | 18.63" | 16" | - | 18 1/4" | €1,404.81 | |
|
C-L350-5012-F | 3/8" | 300 psi | Lubricated Precision Bearings | Yes | 18.63" | 16" | - | 18 5/8" | €1,541.91 | |
 |

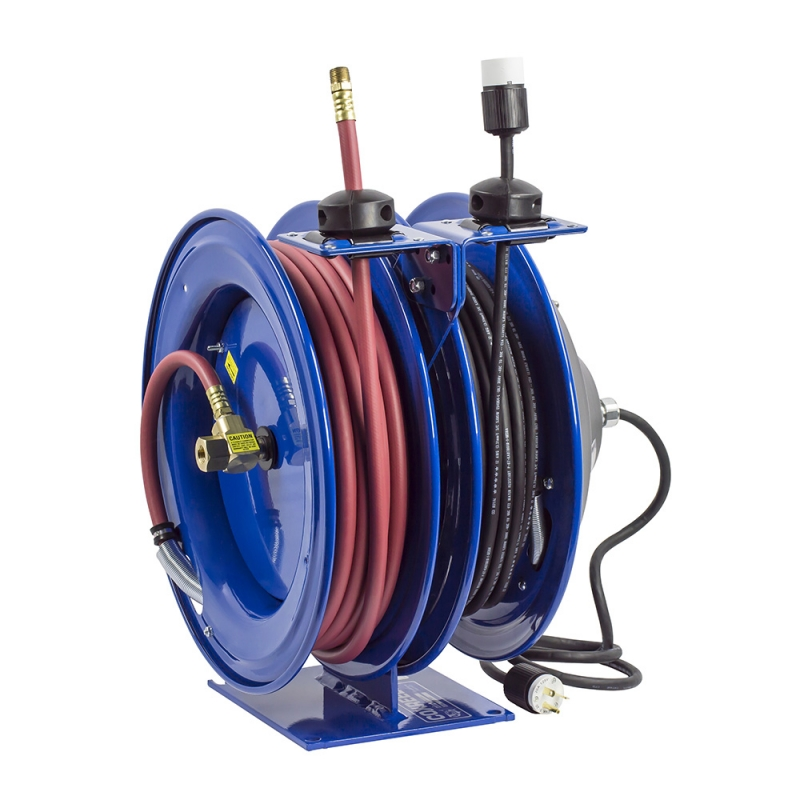

C-L350-5016-A | 3/8" | 300 psi | Permanent Lubricated | - | 18.63" | - | - | - | €1,248.38 |
