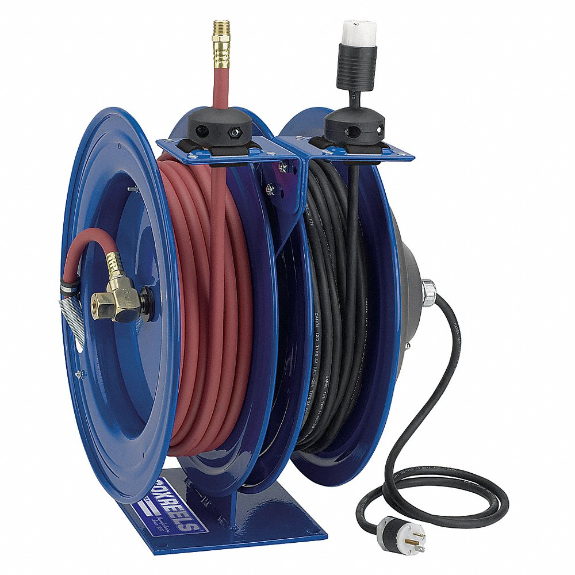

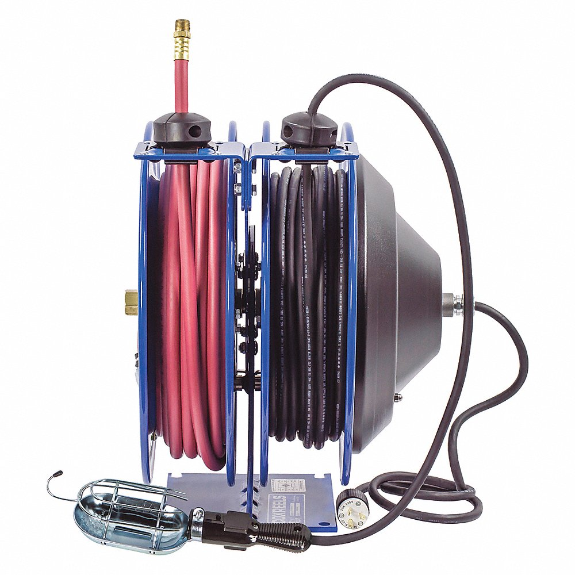

COXREELS C-L350-5016-E Combination Air/Electric Reel, 13 A Amps, 16 Wire Gauge AWG, 300 psi, 3/8 Inch
Get it by Wednesday, Dec 24
10.00% off
€1,238.65 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Combination Reel |
| Ac Cord Length | 50 ft |
| Amps | 13A |
| Base Motion Type | Stationary |
| Bearing Construction | Permanently Lubricated |
| Bearing Type | Permanent Lubricated |
| Bearings | Permanently Lubricated |
| Combination Type | Air, Electric |
| Cord Color | Black |
| Cord Current | 13A |
| Cord Gauge | 16 AWG |
| Cord Included | Yes |
| Cord Length | 50 ft. |
| Enclosed | No |
| Fasteners Included | No |
| Features | 1" Solid Steel Axle, Chip Resistant Cpc Powder Coat Finish, Cnc Spun Discs With Strength Bead And Rolled Edge, Each Reel Operates Independently, Heavy Gauge 1/4" Steel Base & Support Post For Maximum Stability, Single Pedestal Reel, Solid One Piece, Stainless Steel Ratchet Pawl And Spring |
| Feeder Cord Ending | Grounding Plug |
| Feeder Cord Ending Configuration | Nema 5-15P |
| Feeder Cord Length | 5 ft. |
| Finish | Powder Coated |
| Fitting Size | 3/8" x 3/8" |
| Fitting Type | Cord x Cord, NPT x NPT |
| For Dual Hose | No |
| Height | 18 5/8" |
| Hose 1 Color | Red |
| Hose 1 Cover Material | PVC |
| Hose 1 Fitting A Gender | Male |
| Hose 1 Fitting A Material | Brass |
| Hose 1 Fitting A Size | 3/8" |
| Hose 1 Fitting A Type | NPT |
| Hose 1 Fitting B Gender | Male |
| Hose 1 Fitting B Material | Brass |
| Hose 1 Fitting B Size | 3/8" |
| Hose 1 Fitting B Type | NPT |
| Hose 1 Inside Diameter | 3/8" |
| Hose 1 Length | 50 ft. |
| Hose 1 Outside Diameter | 5/8" |
| Hose 1 Tube Material | PVC |
| Hose Capacity | 50 ft. |
| Hose End Configuration | 3/8" MNPT x 3/8" MNPT |
| Hose Included | Yes |
| Hose Inside Dia. | 3/8" |
| Hose Length | 50 ft. |
| Hose Material | PVC |
| Hose Reel Primary Application | Air, Electric |
| Hose Reel Type | Wall Mount Hose Reel |
| Hose Return Speed Control | No |
| Include Hose Stop | Yes |
| Includes | Cord, Hose, Incandescent Caged Drop Light With Tool Tap Plug |
| Includes Cord | Yes |
| Includes Leader Hose | No |
| Input Amps | 13A |
| Input Current | 13A |
| Inside Dia. | 3/8" |
| Latch | Locking |
| Latch Type | Locking |
| Length | 17" |
| Max. Pressure | 300 psi |
| Maximum Operating Pressure | 300 psi |
| Maximum Operating Temperature | 150°F |
| Minimum Operating Pressure | 0 psi |
| Minimum Operating Temperature | -15°F |
| Mount Base Height | 9" |
| Mount Base Width | 8" |
| Mount Hole Diameter | 1/2" |
| Mounting | Ceiling, Floor, Vehicle, Wall |
| Mounting Hole Center To Center Height | 8" |
| Mounting Hole Center To Center Width | 7" |
| Mounting Size | 7" x 8" |
| Number Of Conductors | 2 |
| Number Of Guide Arms | 1 |
| Number Of Mounting Holes | 4 |
| Number Of Outlets | 2 |
| Overall Height | 18.63" |
| Overall Length | 17" |
| Overall Width | 16" |
| Pedestal Type | Single Pedestal |
| Product Datasheet | coxreels-c-l350-5016-e.pdf |
| Receptacle Type | Plug |
| Reel Color | Blue |
| Reel Diameter | 17" |
| Reel Finish | Powder Coated |
| Reel Inlet | 3/8" |
| Reel Material | Steel |
| Reel Width | 16" |
| Retractable Cord Ending | Single Plug |
| Retractable Cord Ending Configuration | NEMA 5-15R |
| Retractable Cord Length | 50 ft. |
| Speed Limited Retraction | No |
| Spiral Hose Guard | No |
| Swivel Inlet Gender | Female |
| Swivel Material | Brass |
| Swivel Material | Solid Brass |
| Swivel Outlet Gender | Female |
| Voltage | 115V AC |
| Weight | 79 lbs. |
| Width | 16" |
Shipping Info:
| Ship weight (kg) | 35.55 |
| Ship height (cm) | 47.32 |
| Ship length (cm) | 43.18 |
| Ship width (cm) | 40.64 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Mounting Size | Mounting | Hose Length | Inside Dia. | Outside Dia. | Overall Height | Overall Width | Max. Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C-L350-5016-X | 7" x 8" | Ceiling, Floor, Vehicle, Wall | 50 ft. | 3/8" | 5/8" | 18.63" | 16" | 300 psi | €1,233.19 |
