COXREELS 433 Swivel, 3/8 Inch FNPT, 3000 PSI Max Operating Pressure, NPT
Item: CJ3PLCModel: 433Cross Ref: 33N164
7 In Stock
Ships within 2 days via
10.00% off
€194.52 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Swivel |
| Angle | 90° |
| For Reel Series | EN Series, T Series, XTM Series |
| Includes Seal | Yes |
| Inlet Gender | Female |
| Inlet Swivel Configuration | 3/8" FNPT |
| Inlet Thread Size | 3/8"-18 |
| Inlet Type | NPT |
| Material | Brass |
| Maximum Operating Pressure | 3000 psi |
| Maximum Operating Temperature | 250°F |
| Minimum Operating Pressure | 0 psi |
| Minimum Operating Temperature | -40°F |
| Outlet Gender | Female |
| Outlet Swivel Configuration Size | 3/8" |
| Outlet Swivel Configuration Type | FNPT |
| Outlet Thread Size | 3/8"-18 |
| Outlet Type | NPT |
| Seal Material | Nitrile |
| Vacuum Rating | 29 in. hg |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 8.38 |
| Ship length (cm) | 9.65 |
| Ship width (cm) | 5.59 |
| Country of Origin | US |
Product Variants
| Product | Model | Material | Seal Material | Angle | Outlet Gender | Inlet Type | Inlet Thread Size | Outlet Thread Size | Outlet Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
439 | Brass | Nitrile | 90° | Female | NPT | 1/2"-14 | 1/2"-14 | NPT | €239.38 | |
 |
15257-1 | Steel | TFE/P | 90° | Female | NPT | 1"-11.5 | 1"-11.5 | NPT | €409.21 | |
 |
7707 | Steel | FKM | 90° | Male | NPT | 1/4"-18 | 1/4"-18 | NPT | €312.28 | |
 |
7231-2 | Steel | FKM | 90° | Female | NPT | 1"-11.5 | 1"-11.5 | NPT | €422.79 | |
 |
8970 | Steel | Nitrile | 180° | - | NPT | - | - | - | €164.23 | |
 |
521-1 | Steel | FKM | 90° | Female | NPT | 3/8"-18 | 3/8"-18 | NPT | €273.34 | |
 |

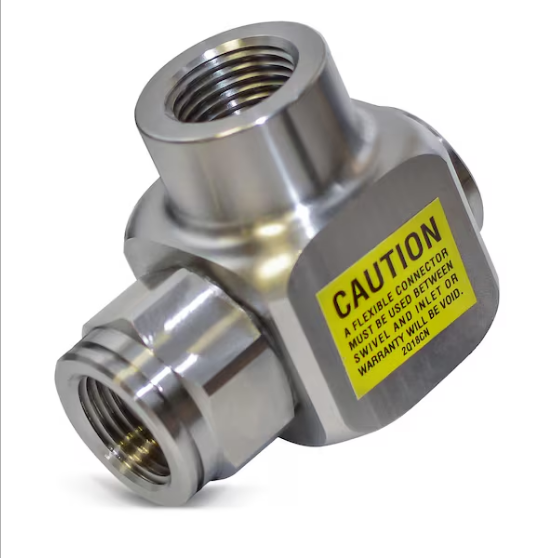

433-FG-SS | Stainless Steel | Nitrile | 90° | Female | NPT | 3/8"-18 | 3/8"-18 | NPT | €308.09 |
