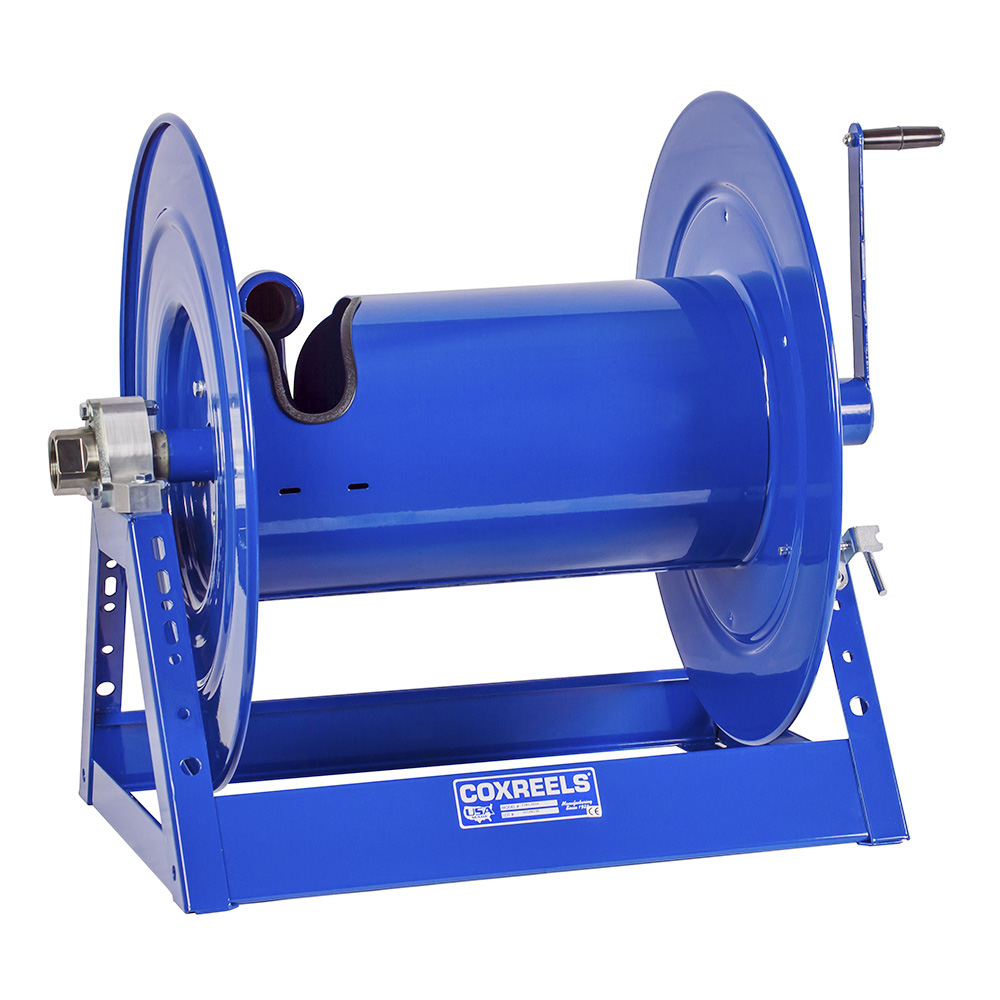

COXREELS 1185-3328 Hand Crank Hose Reel, 250 ft., 1 1/2 Inch I.D., 28 x 46 1/2 x 30 Inch Size, Nitrile
Get it by Thursday, Dec 25
10.00% off
€1,620.73 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hand Crank Hose Reel |
| Base Motion Type | Stationary |
| Base Size | 35.5" x 24.5" |
| Bearing Construction | PTFE |
| Drive Type | Hand Crank |
| Enclosed | No |
| Fasteners Included | No |
| Features | "A" Frame, Cnc Spun Discs, Outlet Riser, Pillow Block Bearings, Professional Grade Heavy Duty Steel Construction |
| For Dual Hose | No |
| Handle Length | 3 1/2" |
| Height | 30" |
| Hose Capacity | 250 ft. |
| Hose Included | No |
| Hose Length | 250 ft. |
| Hose Reel Primary Application | Bulk Liquid Handling, Chemical Fluid Transfer, Fire Booster Hose, High-Flow Watering, Oil/Lubrication, Water |
| Hose Reel Type | Wall Mount Hose Reel |
| Includes | Locking Pin |
| Includes Gooseneck | Yes |
| Includes Leader Hose | No |
| Inside Dia. | 1 1/2" |
| Length | 28" |
| Max. Operating Pressure | 1500 psi |
| Maximum Operating Temperature | 250°F |
| Minimum Operating Temperature | -40°F |
| Mount Base Height | 24 1/2" |
| Mount Base Width | 38 1/2" |
| Mount Hole Diameter | 1/2" |
| Mounting Hole Center To Center Height | 18 1/2" |
| Mounting Hole Center To Center Width | 36 1/2" |
| Mounting Size | 36.25" x 18.5" |
| Outside Dia. | 2.062" |
| Overall Height | 30" |
| Overall Length | 28" |
| Overall Width | 46 1/2" |
| Reel Color | Blue |
| Reel Diameter | 28" |
| Reel Finish | Powder Coated |
| Reel Material | Steel |
| Reel Width | 33" |
| Seal Material | Nitrile |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size | 1 1/2" |
| Swivel Inlet Thread Size | 1 1/2" |
| Swivel Inlet Type | NPT |
| Swivel Material | Nickel Plated Steel |
| Swivel Outlet Gender | Female |
| Swivel Outlet Size | 1 1/2" |
| Swivel Outlet Thread Size | 1 1/2" |
| Swivel Outlet Type | NPT |
| Weight | 169 lbs. |
| Width | 46 1/2" |
Shipping Info:
| Ship weight (kg) | 76.05 |
| Ship height (cm) | 76.2 |
| Ship length (cm) | 71.12 |
| Ship width (cm) | 118.11 |
| Country of Origin | US |
Product Variants
| Product | Model | Max. Operating Pressure | Hose Capacity | Mounting | Overall Height | Overall Length | Mounting Size | Hose Length | Base Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1185-1124 | 1500 psi | 50 ft. | Bench, Floor, Truck, Wall | 26" | 24" | 14.75" x 16" | 50 ft. | 17" x 22.25" | €1,450.14 | |
|
1185-2024 | 1500 psi | 100 ft. | Bench, Floor, Truck, Wall | 26" | 24" | 23.25" x 16" | 100 ft. | 25.5" x 22.25" | €1,493.97 | |
 |
1185-1124-C | 1500 psi | - | - | 26" | 24" | 14.75" x 16" | 50 ft. | 17" x 22.25" | €1,199.50 | |
 |
1185-1524 | 1500 psi | 75 ft. | - | 26" | 24" | 18.75" x 16" | 75 ft. | 21" x 22.25" | €1,432.97 | |
|
1185-1524-C | 1500 psi | - | - | 26" | 24" | 18.75" x 16" | 75 ft. | 21" x 22.25" | €1,199.50 | |
|
1185-2020 | 1500 psi | - | - | 21.63" | 20" | 23.25" x 16" | 70 ft. | 25.5" x 19.63" | €886.63 | |
|
1185-2020-C | 1500 psi | - | - | 21.63" | 20" | 23.25" x 16" | 70 ft. | 25.5" x 19.63" | €1,216.83 |
